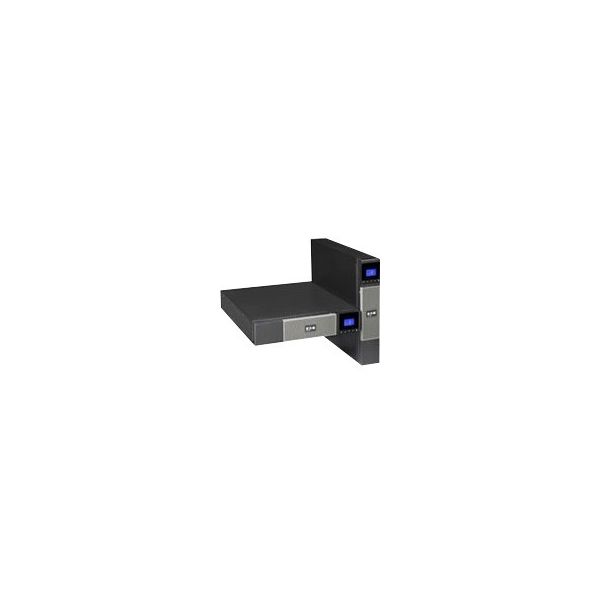

Eaton 5PX UPS 3000VA 2700 Watt 120V True Sine Wave Rack/Tower Network Card Optional
2U Rack/Tower - 4 Minute Stand-by - 110 V AC Input - 132 V AC Output - 6 x NEMA 5-20R, 1 x NEMA L5-30R
Product Number:
SYNX2940606
- Extends runtime by adding additional external battery modules
- Monitors and manages power consumption through managed outlets
- Enables you to customize UPS settings, view load and power consumption through the graphical interactive LCD screen interface
- Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual machines.
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Eaton 5PX UPS 3000VA 2700 Watt 120V True Sine Wave Rack/Tower Network Card Optional - The Eaton 5PX UPS is an integrated power management solution. Paired seamlessly with Intelligent Power Software Suite, the 5PX provides the tools you need to manage your equipment, even in virtualized environments. Designed with managed outlet segments, you can monitor energy consumption on the intuitive LCD screen. It also delivers more power than comparable UPSs and has an efficiency rating of up to 99%.
- Extends runtime by adding additional external battery modules
- Monitors and manages power consumption through managed outlets
- Enables you to customize UPS settings, view load and power consumption through the graphical interactive LCD screen interface
- Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual machines.
- Provides more real power (watts) to protect more equipment and leave room for expanding IT systems
- Extends battery service life by 50% with ABM technology
- Protects you with a three-year warranty, which includes the battery
- Helps save money and protect the environment through energy efficient operation (ENERGY STAR qualified UPS)
- Experience higher efficiency with lower energy cost
- Up to 4 minute runtime on full load to preserve critical data from power shortage interruptions
- 2700 W load capacity - backup power for your valuable electronics
- 3000 VA load capacity provides sufficient backup during power failures
- Lead Acid battery chemistry for your convenience and better usability
- NEMA L5-30P plug/connector type for convenient usage with added dependability
- NEMA 5-20R receptacle type offers maximum safety, convenience, and increased usability
- 110 V AC input voltage for optimal performance with maximum usability
- 132 V AC output voltage for better reliance and maximum usability
- Rack/Tower form factor for your convenience and simplicity of usage
Product Specifications
-
Battery ChemistryLead Acid
-
Brand NameEaton
-
Certifications & StandardsUL1778 UL497A UL cUL FCC Part 15 subpart B Class A
-
Country of OriginPhilippines
-
Depth25.5"
-
Form FactorRack/Tower
-
Height3.4"
-
Hot SwappableYes
-
Input Voltage110 V AC
-
Limited Warranty3 Year
-
Load Capacity (VA)3000 VA
-
Load Capacity (Watt)2700 W
-
Manufacturer Part Number5PX3000RT2U
-
Output Voltage132 V AC
-
Package Contents5PX 3000 VA Tower/Rack Mountable UPS Four-post Rail Kit User Manual CD Tower Pedestals Intelligent Power Software Suite CD Quick Start Guide RS-232 Serial Cable USB Cable Phillips Head Screw Driver
-
Plug/Connector TypeNEMA L5-30P
-
Product Model5PX3000RT2U
-
Product Name5PX 3000 VA Tower/Rack Mountable UPS
-
Product Series5PX
-
Product TypeLine-interactive UPS
-
Rack Height2U
-
Receptacle Detail1 x NEMA L5-30R 6 x NEMA 5-20R
-
Receptacle TypeNEMA 5-20R NEMA L5-30R
-
Serial PortYes
-
Software IncludedEaton Intelligent Power Software Suite
-
Transfer Time4 ms
-
USBYes
-
Width17.4"
