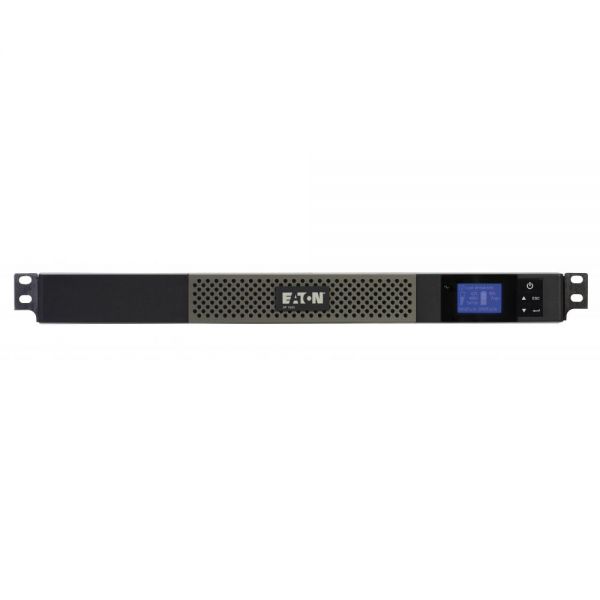

Eaton 5P UPS 1000VA 770W 120V Line-Interactive UPS, 5-15P, 5x 5-15R Outlets, True Sine Wave, Cybersecure Network Card Option, 1U

1U Rack-mountable - 5 Minute Stand-by - 110 V AC Input - 132 V AC Output - 5 x NEMA 5-15R
Product Number: SYNX3536241
  • Keeps equipment running during outages to allow time for file saves and safe shutdown
  • Provides 20% more wattage compared to traditional UPS systems to protect devices
  • Exclusive ABM technology with 3-stage charging increases internal battery life by 50%
  • 5-button graphical LCD offers critical UPS data and load status at a glance
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Eaton 5P UPS 1000VA 770W 120V Line-Interactive UPS, 5-15P, 5x 5-15R Outlets, True Sine Wave, Cybersecure Network Card Option, 1U - 1000VA/770W/120V Battery Backup for Network Closets and Small Data Centers This 5P rack-mount line-interactive UPS system provides reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P1000R protects connected devices by providing 20 percent more wattage compared to traditional UPS systems. Reliable Battery Backup Keeps You Operational Through Power Outages Valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. Optional Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 Gigabit network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions. NEMA 5-15R Outlets Protect Your Connected Components Five managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Three outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads. LCD Interface Keeps You Informed at a Glance The five-button graphical LCD provides useful information about the UPS itself, load status, events, measurements and settings. To save energy, the LCD switches to the screen saver after five minutes of inactivity. The backlight LCD automatically dims after 10 minutes of inactivity.

  • Keeps equipment running during outages to allow time for file saves and safe shutdown
  • Provides 20% more wattage compared to traditional UPS systems to protect devices
  • Exclusive ABM technology with 3-stage charging increases internal battery life by 50%
  • 5-button graphical LCD offers critical UPS data and load status at a glance
  • Optional NETWORK-M2 Gigabit network card enables full remote access and control
  • Line-interactive UPS allows convenient, long-time usage with increased efficiency
  • Keep your sensitive devices powered with a backup of up to 5 minute at full load
  • Lead Acid battery chemistry for your convenience and better usability
  • NEMA 5-15P plug/connector type for convenient usage with added dependability
  • NEMA 5-15R receptacle type offers maximum safety, convenience, and increased usability
  • 110 V AC input voltage for better reliance and maximum dependability
  • 132 V AC output voltage for better reliance and maximum usability
  • Rack-mountable form factor for your convenience and simplicity of usage

Product Specifications

  • Battery Chemistry
    Lead Acid
  • Brand Name
    Eaton
  • Certifications & Standards
    UL 1778 UL497A cULus CE IEC 62040-2 C1-C2 EN 55024 CISPR22 Class B FCC part 15 Class B
  • Country of Origin
    Philippines
  • Depth
    20"
  • Environmental Certification
    RoHS
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack-mountable
  • Height
    1.7"
  • Hot Swappable
    Yes
  • Input Voltage
    110 V AC
  • Limited Warranty
    3 Year
  • Load Capacity
    1000 VA/770 W
  • Manufacturer Part Number
    5P1000R
  • Network (RJ-45)
    Yes
  • Output Voltage
    120 V AC 125 V AC 132 V AC
  • Package Contents
    5P Rackmount UPS User Manual CD Intelligent Power Software Suite CD Quick Start Guide USB Cable RS-232 Serial Cable 4-Post Rail Kit
  • Plug/Connector Type
    NEMA 5-15P
  • Product Model
    5P
  • Product Name
    5P Rackmount UPS
  • Product Type
    Line-interactive UPS
  • Rack Height
    1U
  • Receptacle Detail
    5 x NEMA 5-15R
  • Receptacle Type
    NEMA 5-15R
  • Software Included
    Intelligent Power Software Suite
  • USB
    Yes
  • Width
    17.2"
