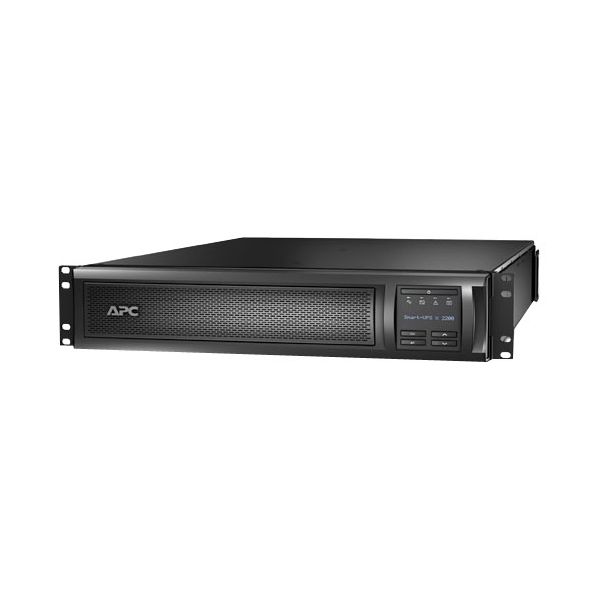

APC by Schneider Electric Smart-UPS 2200 VA Tower/Rack Mountable UPS

2U Rack-mountable - 3 Hour Recharge - 10 Minute Stand-by - 208 V, 230 V Input - 208 V AC, 230 V AC Output - Sine Wave - Serial Port - USB - 1 x IEC 320-C19, 2 x IEC Jumper, 8 x IEC 320-C13 - 11 x Battery/Surge Outlet
Product Number: SYNX3024802
  • 2200VA/1980W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
  • User-selectable high voltage setting of 200V-240V
  • Add up to 10 external battery packs (SMX120RMBP2U)
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
More details
$2,365.20
Ships Free - This items ships free with your order
Delivered by Mon 4/29 Tue 4/30 - This is an estimated delivery timeline
Non Returnable - This is a non returnable item

Product Description

APC by Schneider Electric Smart-UPS 2200 VA Tower/Rack Mountable UPS -

  • 2200VA/1980W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
  • User-selectable high voltage setting of 200V-240V
  • Add up to 10 external battery packs (SMX120RMBP2U)
  • Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
  • Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
  • Ideal for servers, storage, networking & commercial applications
  • Works adequately in situations where the supply is prone to sags and surges
  • Keep your sensitive devices powered with a backup of up to 10 minute at full load
  • 1980 W load capacity - backup power for your valuable electronics
  • 2200 VA load capacity - work without any interruption during power outages
  • 3 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
  • Lead Acid battery chemistry to better suit your requirements with maximum productivity
  • British BS1363A plug/connector type for a secure, feasible operation
  • Schuko CEE 7/EU1-16P receptacle type offers ease of operation with maximum efficiency
  • 208 V input voltage for better reliance and maximum dependability
  • 208 V AC output voltage for optimal performance with maximum feasibility
Guides & Information
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Additional Warranty Information
    3 years repair or replace (excluding battery) and 2 years for battery, optional on-site warranties available, optional extended warranties available
  • Battery Chemistry
    Lead Acid
  • Brand Name
    APC by Schneider Electric
  • California Proposition 65 Warning
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Certifications & Standards
    CE|CSA|EAC|IRAM|RCM|VDE
  • Cord Length
    6 ft
  • Country of Origin
    Philippines
  • Depth
    26.3"
  • EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=65035422&lang=en-us
  • Emergency Power OFF
    Yes
  • End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN
  • Environmental Certification
    RoHS
  • Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029_EN
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack-mountable
  • Green Premium
    Yes
  • Height
    3.3"
  • Hot Swappable
    Yes
  • Input Voltage
    208 V 230 V
  • Limited Warranty
    3 Year
  • Load Capacity (VA)
    2200 VA
  • Load Capacity (Watt)
    1980 W
  • Manufacturer Part Number
    SMX2200RMHV2U
  • Mounting Location
    Front
  • Mounting Preference
    Lower
  • Number of Battery & Surge Outlets
    11
  • Optimized Energy Efficiency
    Yes
  • Output Voltage
    208 V AC 230 V AC
  • Package Contents
    Smart-UPS 2200 VA Tower/Rack Mountable UPS CD with software Documentation CD Rack mounting brackets Smart UPS signalling RS-232 cable USB cable User manual
  • Plug/Connector Type
    British BS1363A IEC 320-C20
  • Product Color
    Black
  • Product Line
    Smart-UPS
  • Product Model
    SMX2200RMHV2U
  • Product Name
    Smart-UPS 2200 VA Tower/Rack Mountable UPS
  • Product Series
    SMX
  • Product Take Back Program
    Yes
  • Product Type
    Line-interactive UPS
  • REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=65035422&lang=en-us
  • REACH free of SVHC
    No
  • Rack Height
    2U
  • Receptacle Type
    Schuko CEE 7/EU1-16P
  • RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMX2200RMHV2U_ROHS_DECLARATION&p_FileName=SMX2200RMHV2UKIT_ROHS_DECLARATION_US.pdf
  • Serial Port
    Yes
  • Software Included
    Powerchute Serial Edition
  • Surge Energy Rating
    645 J
  • Transfer Time
    4 ms
  • Typical Battery Recharge Time
    3 Hour
  • USB
    Yes
  • Waveform Type
    Sine Wave
  • Width
    17"
