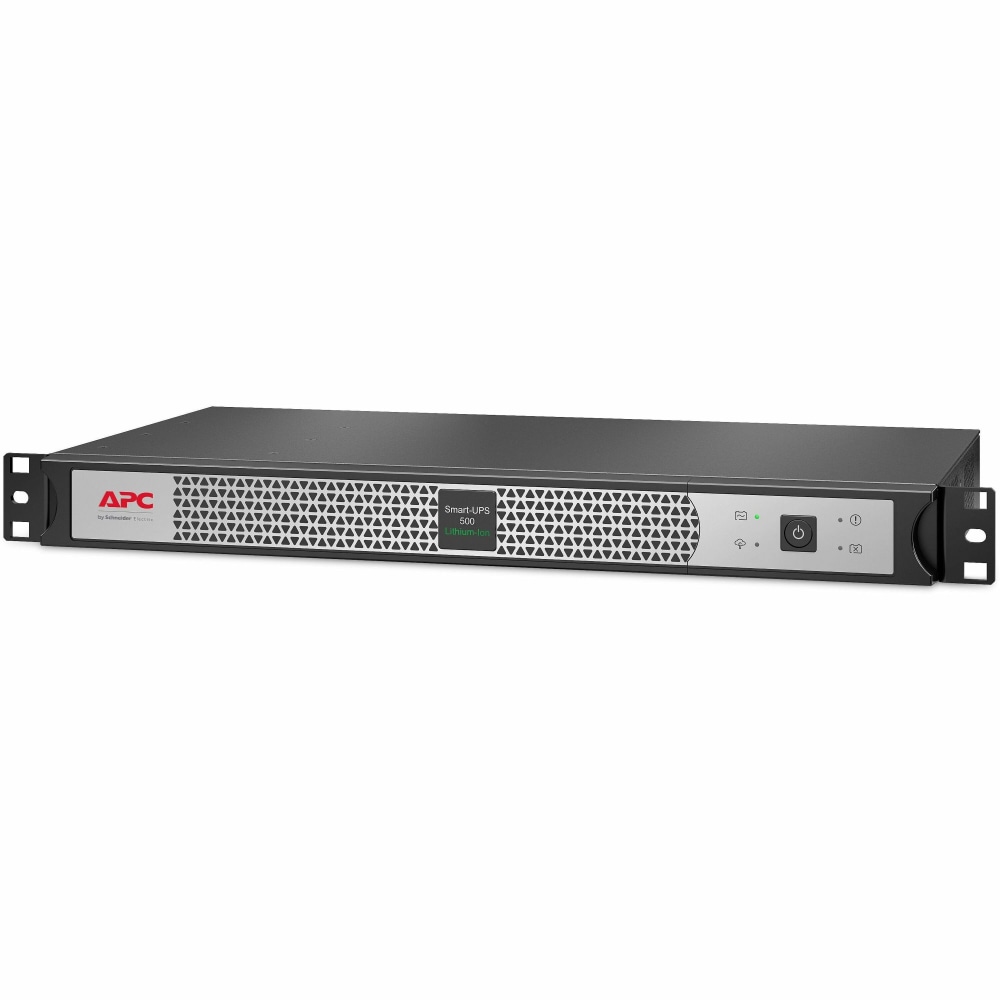

APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, SmartConnect Port, Short Depth - 1U Rack-mountable - AVR - 3 Hour Recharge - 2.70 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave
$401.05
Loading...
Loading...
Product Description
APC Smart-UPS, Line Interactive, 500VA, Lithium-ion, Rackmount 1U, 120V, 4x NEMA 5-15R outlets, SmartConnect Port, Short Depth - 1U Rack-mountable - AVR - 3 Hour Recharge - 2.70 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave
1U Rack-mountable - AVR - 3 Hour Recharge - 2.70 Minute Stand-by - 120 V Input - 120 V AC Output - Sine Wave - Serial Port - 4 x NEMA 5-15R Receptacle(s) - 4 x Battery/Surge Outlet - SmartConnect
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 500VA line interactive 1U short depth rackmount UPS with Lithium-ion battery provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 4 NEMA5-15R outlets. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SCL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
More from the Manufacturer
More from the Manufacturer
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Short depth UPS provides extra space for cable management
- Peace of mind with a 5-year warranty on UPS and battery
- 500VA/400W line interactive pure sine wave 1U rackmount UPS
- Energy efficient — designed to use less energy than alternative products, potentially helping you save money and reduce your carbon footprint.
- Helps save energy — designed to limit the energy used by other products, potentially helping you reduce your carbon footprint and save money.
Product Specifications
-
Additional Warranty Information5-Year Limited
-
AlarmOn Battery Low Battery Configurable Delay
-
Application/UsageNetwork Server POS Terminal Router Switch Network Hub Equipment Business Storage Security System Communication System Voice/Data Network
-
Backup/Run Time (Full Load)2.70 Minute
-
Backup/Run Time (Half Load)6.30 Minute
-
Battery CharacteristicsValve-regulated
-
Battery ChemistryLithium Ion (Li-Ion)
-
Battery Run Time3 min
-
Brand NameAPC
-
Certifications & StandardscULus|NOM
-
Charge Time3 hr
-
ColorBlack; Silver
-
Cord Length6 ft
-
Country of OriginPH
-
Dataline ProtectionRJ-45
-
Depth9-2/10 in.
-
Dimensions1-8/10 in. X 17-1/64 in. X 9-2/10 in.
-
Directly Connected Equipment Guarantee$150000 Lifetime
-
EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=511500677&lang=en-us
-
End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN
-
Energy StarYes
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001_EN
-
Environmentally FriendlyYes
-
FeaturesUL Listed
-
For Country/RegionUnited States
-
Form FactorRack-mountable
-
Frequency Response50Hz to 20kHz
-
Height1-8/10 in.
-
Hot SwappableYes
-
Input Frequency63 Hz
-
Input Voltage120 V
-
Input Voltage Range92 V AC - 139 V AC
-
Limited Warranty5 Year
-
Load Capacity (VA)500
-
Load Capacity (Watt)400
-
ManufacturerAMERICAN POWER CONVERSION CORP
-
Manufacturer Part NumberSCL500RM1UC
-
Maximum Operating Temperature104°F (40°C)
-
Mercury FreeYes
-
Model500VA Short Depth with SmartConnect
-
Mounting PreferenceNo Preference
-
Network (RJ-45)Yes
-
Network ManagementSmartConnect
-
Optimized Energy EfficiencyYes
-
Output Frequency60 Hz
-
Output Voltage120 V
-
Package ContentsSmart-UPS 500VA Rack/Floor Mountable UPS CD with software Documentation CD Installation guide Rack mounting support rails USB cable
-
Plug/Connector TypeNEMA 5-15P
-
Product LineSmart-UPS
-
Product NameSmart-UPS 500VA Rack/Floor Mountable UPS
-
Product Take Back ProgramYes
-
Product TypeRack-Mounted Uninterruptable Power Supply (UPS)
-
REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=511500677&lang=en-us
-
REACH free of SVHCNo
-
Rack Height1U
-
Receptacle TypeNEMA 5-15P
-
RefurbishedN
-
RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SCL500RM1UC_ROHS_DECLARATION&p_FileName=SCL500RM1UCKIT_ROHS_DECLARATION_US.pdf
-
Serial PortYes
-
Software IncludedPowerchute Serial Edition
-
Status IndicatorsLED Display
-
Surge Energy Rating680 J
-
Waveform TypeSine Wave
-
Width17-1/64 in.
