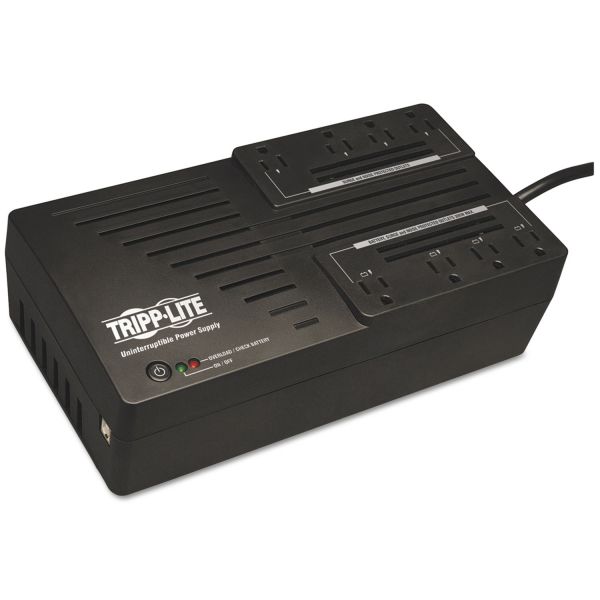

Tripp Lite AVR Series Ultra-Compact Line-Interactive UPS, USB, 8 Outlets, 550 VA, 420 J
(1) Reviews Product Number: TRPAVR550U- Power protection and battery backup for home and office computers and electronics.
- Protects your valuable equipment from damage, downtime and data loss.
- Battery backup supports equipment during outages.
- AVR corrects power sags (brownouts) and overvoltages.
Due to its limited shelf life or other concerns, we do not accept returns on this product unless it is damaged, defective or incorrect due to an error on our part.
Product Description
Tripp Lite AVR Series Ultra-Compact Line-Interactive UPS, USB, 8 Outlets, 550 VA, 420 J - AVR (automatic voltage regulation) Series Line-Interactive UPS System offers line-interactive protection for PCs, workstations and other sensitive electronics in an ultra-compact, mountable housing. Maintains 120V nominal output over an input range of 83V to 147V. Workstation-optimized features include USB port (HID-PDC compliant), single-line TEL/DSL surge suppression, battery-protected and surge-protected outlets and surge-only outlets. Input: NEMA 5-15P (120V 15A)/Output: 8 NEMA 5-15R (120V).
- Power protection and battery backup for home and office computers and electronics.
- Protects your valuable equipment from damage, downtime and data loss.
- Battery backup supports equipment during outages.
- AVR corrects power sags (brownouts) and overvoltages.
- Surge protection blocks harmful transient voltages on AC and phone lines.
- The USB port connects to a computer for power management and automatic file saves.
Product Specifications
-
Additional InformationLow voltage transfer to battery power: Switches to battery power as line voltage drops to 83V or lower / Resets to AC mode as line voltage increases to 87V or higher High voltage transfer to battery power: Switches to battery power as line voltage increases to 147V or higher / Resets to line power as line voltage drops to 143V or less Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure Switches: Combination power off / on / self-test push button switch Typical Application: Basic PCs for home / home-office use, network workstations, audio/video equipment, home entertainment systems and other sensitive electronic devices. WatchDog compatibility: Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications Supports entry-level PC systems up to 17 minutes during blackout conditions Form factors supported: Ultra-compact desk/floor mount , mounting flanges enable wall-mount installation 8 output receptacles, 2 of which are widely spaced to accommodate large transformer plugs without blocking outlets 4 outlets feature full battery support and surge suppression, protecting computers, monitors and other vital system components from loss of power 4 additional outlets with surge suppression only are ideal for printers and other peripherals not requiring battery support HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux
-
Additional Warranty Information3-Year Limited <p>2-year warranty. $100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only).</p>
-
AlarmBattery Backup Fault Low Battery Overload Replace Battery
-
Alarm(s)Audible
-
Application/UsageATM Blu-ray Player Computer Digital Signage Gaming Console Home Theater Home/Office Media Center Printer Router Security System Speaker TV
-
Assembly RequiredNo
-
Automatic Voltage Regulation (AVR)Yes
-
AVRYes
-
AVR RangeBoost +18% / Buck -15%
-
Backup Time at Full Load3 minutes @ 150 Watts
-
Backup Time at Half Load9 minutes @ 150 Watts
-
Battery Life6 Year
-
Battery Recharge Time4 Hour 4.0 h
-
Battery Run Time2 min
-
Brand NameTripp Lite
-
Certifications & StandardsTested to UL1778 (USA) cUL1778 (Canada) NOM (Mexico) FCC Class B (Emissions) FCC Part 68 Industry Canada (Telecommunications)
-
Charge Time8 hr
-
ColorBlack
-
Connected Equipment Guarantee/Warranty$100,000 Ultimate Lifetime Insurance
-
Connector/Port/InterfaceUSB
-
Cord Length6 ft
-
Country of OriginCN
-
Current12 A
-
Dataline ProtectionRJ-11
-
DC System Voltage12 V DC
-
Depth12"
-
Dimensions3-1/2 in. X 6-4/10 in. X 12 in.
-
Disclaimer StatementRun Time based on single PC load with 15" flat panel monitor.
-
Emergency Power Off (EPO)No
-
EMI/RFI Noise FilterYes
-
Energy SavingGreater than 95% efficiency - GREEN UPS
-
Environmental CertificationRoHS
-
Environmentally FriendlyYes
-
Form FactorUltra-compact Desktop/Tower/Wall Mount
-
Global Product TypeBackup Systems
-
Height3 1/2"
-
Input Current12 A
-
Input Frequency60 Hz 60 Hz
-
Input Voltage120 V AC
-
JacksRJ11
-
Joules Of Surge Protection420 J
-
Limited Warranty3 Year Lifetime
-
Lines1
-
Load Capacity550 VA/300 W
-
ManufacturerTRIPP LITE TRIPP LITE
-
Manufacturer Part NumberAVR550U
-
Manufacturer Website Addresswww.tripplite.com
-
Maximum Operating Elevation10000 ft
-
Maximum Operating Temperature104°F (40°C)
-
Model Name/NumberAVR550U
-
Multimedia ProtectionDSL/Telephone
-
Noise ProtectionEMI/RFI Noise Suppression
-
Number of Battery & Surge Outlets4
-
Number of Outlets8
-
Number of Outlets/Type4 Surge Only 4 UPS/Surge
-
Number of Surge-only Outlets4
-
Output Frequency60 Hz
-
Output Voltage120 V AC 110 V AC 115 V AC
-
Package ContentsAVR 550VA Desktop UPS USB cable Owner's manual
-
Packaging1
-
PhaseSingle Phase
-
Plug/Connector TypeNEMA 5-15P
-
Post-Consumer Recycled Content Percent0%
-
Post-consumer-waste%0%
-
Pre-Consumer Recycled Content Percent0%
-
Product NameAVR 550VA Desktop UPS
-
Product SeriesAVR
-
Product TypeLine-interactive UPS
-
Protection TypeDSL Fax Modem Phone Power DSL Fax Modem Phone Power
-
Receptacles8 x NEMA 5-15R
-
RecycledNo
-
Recycled Content0%
-
RefurbishedN
-
Replaceable BatteryYes
-
Run Time20 minutes 20 minutes
-
Shipping Dimensions4.75" Height x 13.50" Width x 8.75" Depth
-
Software IncludedPowerAlert UPS monitoring software
-
Status Indicators2 LEDs indicate: Line power Battery power
-
Storage Temperature5°F (-15°C) - 113°F (45°C)
-
Surge Energy Rating316 J
-
System VA550 VA
-
Telephone/Internet ProtectionDSL Fax Modem Phone
-
Temperature32?F (0?C) to 104?F (40?C) Operating 5?F (-15?C) to 122?F (50?C) Storage
-
Total Recycled Content Percent0%
-
Transfer Time6 ms
-
Typical Battery Recharge Time8 Hour
-
USBYes
-
USB (HID Compliant) PortYes
-
Voltage Handling+8% Utility Regulation -21% Utility Regulation ?5% Battery Regulation
-
Waveform TypePulse-width Modulated Sine Wave
-
Weight (Approximate)11 lb
-
Width11 1/4"
