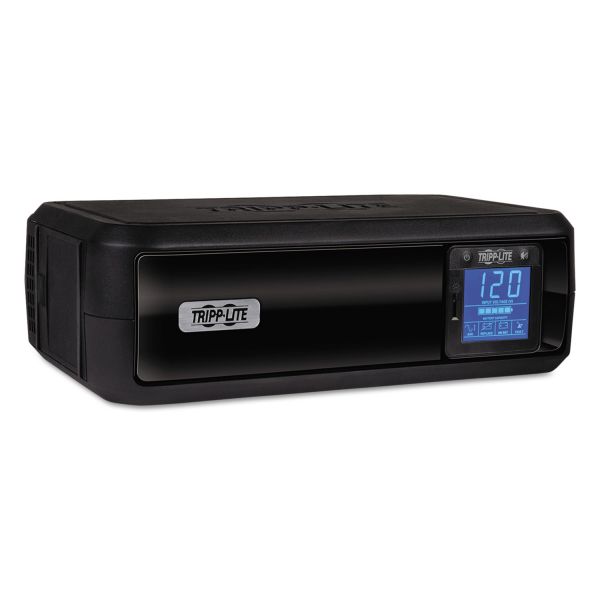

Tripp Lite SmartPro LCD Line-Interactive UPS AVR Tower, USB, 8 Outlets, 1000 VA, 1038 J

Product Number: TRPSMART1000LCD
  • Power protection and battery backup for home and office computers and electronics.
  • Battery backup supports equipment during outages.
  • Built-in AVR protection corrects power sags (brownouts).
  • Illuminated LCD screen displays the input voltage, battery capacity and operating status.
More details
Other Product Options
Tripp Lite SmartPro LCD Line-Interactive UPS AVR Tower, USB, 8 Outlets, 1000 VA, 1038 J
1000 VA/500 W - 0.05 Hour Full Load - 4 x NEMA 5-15R - Battery Backup System, 4 x NEMA 5-15R - Surge-protected
$161.07
Free 2-Day Shipping Estimated Delivery Wed 4/24 Thu 4/25
Favorite
Compare
Request Quote

Product Description

Tripp Lite SmartPro LCD Line-Interactive UPS AVR Tower, USB, 8 Outlets, 1000 VA, 1038 J - Line-Interactive Digital UPS System offers voltage regulation, surge suppression and battery support for personal computers, network workstations and more. Internal UPS circuits support entry-level PCs for 60 minutes or individual VCR/DVR for 3 hours during power failure. AVR circuits regulate brownouts as low as 89 volts back to usable levels without using battery power. Includes 4 battery-supported outlets, plus 4 surge suppression-only outlets. USB port enables optional unattended system shutdown without data loss; cable included. HID-compliant USB interface enables integration with built-in power management and auto shutdown of Windows, Mac OS X and Linux. Built-in single-line RJ-11 phone suppression jacks protect modem and satellite receiver with standard dialup/DSL phone connection. 2.2 GHz coaxial jacks protect against surges on CATV, satellite or broadcast antenna connections. 3 minute battery runtime with full load of 1000VA/500W and 11 minutes with half load of 500VA/250W.

  • Power protection and battery backup for home and office computers and electronics.
  • Battery backup supports equipment during outages.
  • Built-in AVR protection corrects power sags (brownouts).
  • Illuminated LCD screen displays the input voltage, battery capacity and operating status.
  • The USB port connects to a computer for power management and automatic file saves.
  • Adapts to tower format or rack-mount shelf format.
  • Cold start capability.
Guides & Information

Product Specifications

  • Additional Information
    Low voltage transfer to battery power: Switches to battery power as line voltage decreases to 89V or less, switches back to AC mode as line voltage increases to 94V or higher High voltage transfer to battery power: Switches to battery mode as line voltage increases to 139V or higher, switches back to AC mode as line voltage decreases to 135V or lower Typical Applications: Entry-level PCs, networked workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Ideal for sensitive electronic applications in areas where brownout conditions are common Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure Switches: Includes 2 front panel switches - one main on/off power switch and one dual function "alarm cancel" / "self test" button
  • Alarm(s)
    Audible
  • Assembly Required
    No
  • Automatic Voltage Regulation (AVR)
    Yes
  • Backup Time at Full Load
    3 minutes @ 500 Watts
  • Backup Time at Half Load
    9 minutes @ 250 Watts
  • Battery Life
    6 Year
  • Brand Name
    Tripp Lite
  • Certifications & Standards
    UL1778 (TUV) cUL (TUV) NOM FCC Class B FCC part 68 (US & Canada)
  • Color
    Black
  • Color(s)
    Black
  • Connected Equipment Guarantee/Warranty
    $250,000 Ultimate Lifetime Insurance
  • Connector/Port/Interface
    USB
  • Cord Length
    6 ft
  • Country of Origin
    CN
  • Dataline Protection
    RJ-11
  • Depth
    7 1/5"
  • Diagnostics/Alarm/Status Light
    Alarm LED
  • Disclaimer Statement
    Run Time based on single PC load with 15" flat panel monitor.
  • Emergency Power Off (EPO)
    No
  • Form Factor
    Tower
  • Global Product Type
    Backup Systems
  • Height
    12"
  • Input Frequency
    60 Hz 60 Hz
  • Input Voltage
    120 V AC
  • Jacks
    Coax RJ11
  • Joules Of Surge Protection
    1038 J
  • Limited Warranty
    3 Year
  • Lines
    1
  • Load Capacity
    1000 VA/500 W
  • Manufacturer
    Tripp Lite
  • Manufacturer Part Number
    SMART1000LCD
  • Manufacturer Website Address
    www.tripplite.com
  • Maximum Operating Temperature
    122°F (50°C)
  • Model Name/Number
    SmartPro® SMART1000LCD
  • Multimedia Protection
    Cable/DSL/Telephone
  • Noise Protection
    EMI/RFI Noise Suppression
  • Number of Outlets
    8
  • Number of Outlets/Type
    4 Surge Only 4 UPS/Surge
  • Output Voltage
    120 V AC
  • Package Contents
    USB and phone cabling Manual with warranty information SmartPro 1000 VA Tower Digital UPS SMART1000LCD Digital UPS
  • Plug/Connector Type
    NEMA 5-15P
  • Post-Consumer Recycled Content Percent
    0%
  • Pre-Consumer Recycled Content Percent
    0%
  • Product Line
    SmartPro
  • Product Name
    SmartPro 1000 VA Tower Digital UPS
  • Product Type
    Line-interactive UPS
  • Protection Type
    DSL Fax Modem Phone Power DSL Fax Modem Phone Power
  • Rack Height
    2U
  • React Time
    Instantaneous
  • Receptacles
    4 x NEMA 5-15R
  • Recycled
    No
  • Run Time
    60 minutes 60 minutes
  • Shipping Weight (Approximate)
    15.60 lb
  • Surge Energy Rating
    1038 J
  • System VA
    1000 VA
  • Telephone/Internet Protection
    Cable DSL Fax Modem Phone
  • Temperature
    32?F (0?C) to 104?F (40?C) Operating 5?F (-15?C) to 122?F (50?C) Storage
  • Total Recycled Content Percent
    0%
  • Transfer Time
    4 ms
  • Typical Battery Recharge Time
    8 Hour
  • USB
    Yes
  • Voltage Handling
    ?5% Output
  • Weight (Approximate)
    14.60 lb 15.50 lbs.
  • Width
    3 7/10"
