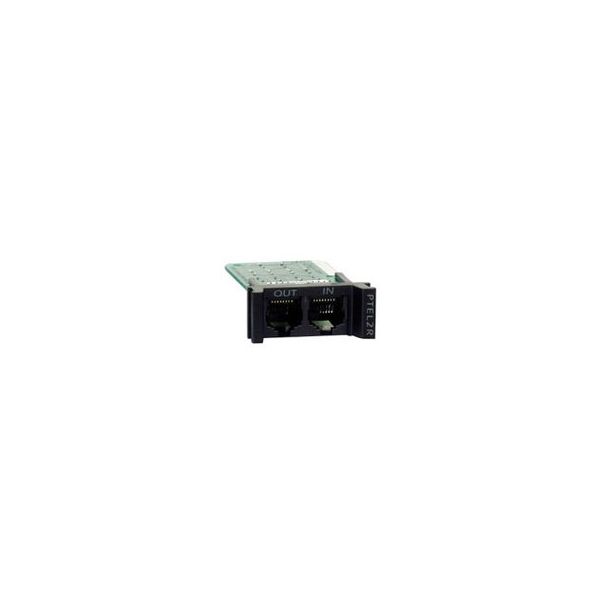

APC by Schneider Electric Replaceable, Rackmount, 1U, 2 Line Telco Surge Protection Module

250 A - Modem/Fax/DSL
Product Number: SYNX983906
  • Protects back doors such as modem lines to prevent equipment from surges
  • Helps avoid network interface cards from spikes
  • Meets Green Premium label to deliver compliance with the latest regulations, transparency on environmental impacts and low carbon dioxide emissions
  • Prevents non-AC network electrical hazards such as static charge buildup, direct contact between components and power and more
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

APC by Schneider Electric Replaceable, Rackmount, 1U, 2 Line Telco Surge Protection Module - Data line surges make up an overwhelming majority of all surge induced damages where the equipment was thought to be already protected but had a back door such as a modem line unprotected. Network interface cards, in particular, can be destroyed by relatively mild spikes.
According to Ethernet standards (IEEE 802.3), non-AC network electrical hazards include Direct contact between components and power or lightning circuits, static charge buildup on cables and component, high-energy transients coupled onto the local cabling system (those induced by other cables which are installed in the general proximity of network cables or lightning within a mile radius) and potential differences (even from building to building, between safety grounds to which components are connected.)

  • Protects back doors such as modem lines to prevent equipment from surges
  • Helps avoid network interface cards from spikes
  • Meets Green Premium label to deliver compliance with the latest regulations, transparency on environmental impacts and low carbon dioxide emissions
  • Prevents non-AC network electrical hazards such as static charge buildup, direct contact between components and power and more
Related Articles
 Need more information? Ask a Question

Product Specifications

  • Additional Information
    Replaceable surge protection modules Surge Response Time: 1 ns Data Lines Protected (multi-line only): 1-4 (RJ-11) 3-6 (RJ-45)
  • Additional Warranty Information
    Limited Lifetime
  • Brand Name
    APC by Schneider Electric
  • Certifications & Standards
    cUL Recognized|CE
  • Dataline Protection
    Modem/Fax/DSL
  • Depth
    2.7"
  • EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=764088&lang=en-us
  • End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512008_V1
  • Environmental Certification
    RoHS
  • Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512008_V1
  • Environmentally Friendly
    Yes
  • Green Premium
    Yes
  • Height
    1.7"
  • Lead Free
    Yes
  • Limited Warranty
    Lifetime
  • Manufacturer Part Number
    PTEL2R
  • Maximum Operating Temperature
    113°F (45°C)
  • Package Contents
    REPLACEABLE, RACKMOUNT, 1U, 2 LINE TELCO SURGE PROTECTION MODULE User Manual
  • Product Color
    Black
  • Product Line
    ProtectNet
  • Product Name
    Replaceable, Rackmount, 1U, 2 Line Telco Surge Protection Module
  • Product Take Back Program
    Yes
  • Product Type
    Surge Suppressor/Protector
  • REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=764088&lang=en-us
  • REACH free of SVHC
    Yes
  • Shipping Weight (Approximate)
    1.60 oz
  • WEEE Statement
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Width
    0.7"
