CyberPower BP48VP2U02 Extended Battery Modules

Product #: SYNX5346506
$839.51
Ships Free - This items ships free with your order
Delivered by Mon 12/15 Tue 12/16 - This is an estimated delivery timeline
Non-returnable - This is a non-returnable item

Product Description

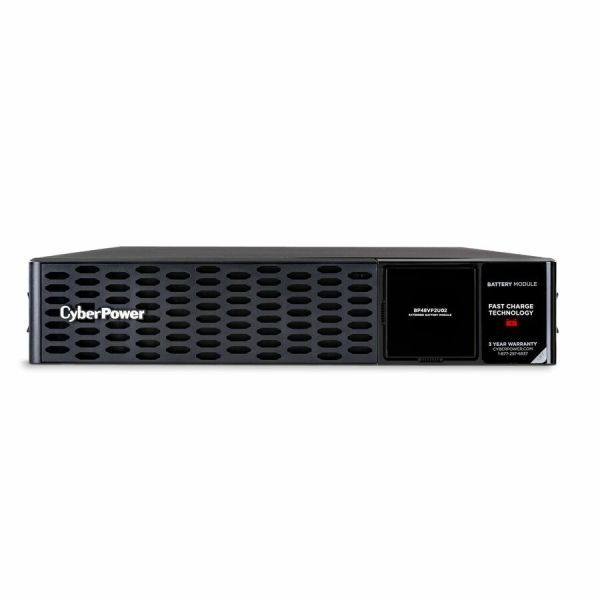

CyberPower BP48VP2U02 Extended Battery Modules
48 VDC / 70 A - 12 V / 9 Ah Sealed Lead-Acid Battery, 3YR Warranty
The CyberPower BP48VP2U02 is a rack/tower convertible Extended Battery Module (EBM) that extends battery runtimes during power outages and is designed for the following UPS systems: PR1000LCDRTXL2UA, PR1500LCDRTXL2U, PR1500RTXL2U, PR1500RTXL2UC, PR1500RTXL2UCN, PR2000RTXL2U, PR2000RTXL2UC, PR2000RTXL2UCN, PR2200LCDRTXL2U, PR2200RTXL2U, PR2200RTXL2UC, PR2200RTXL2UCN, PR3000LCDRTXL2U, PR3000RTXL2U, PR3000RTXL2UC, PR3000RTXL2UCN, OR1500LCDRTXL2U, and OR2200LCDRTXL2U.
This EBM takes 2U of rack space and can be installed in either a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless battery panel access makes battery replacement fast and simple.
With a three-year lifetime limited warranty, you can trust CyberPower's commitment to the quality of the BP48VP2U02.
  • Output:
  • 48V/70A
  • Recharge time:
  • 6 hours
  • Battery type & quantity:
  • 12V/9AH (8)
  • Weight:
  • 66.2 lbs.
  • Form factor:
  • Rack/Tower
  • Hot swappable:
  • Yes
  • Warranty:
  • 3 year
  • Offers extended battery life for associated critical loads
  • Easily replaceable by the user
  • In terms of cost per watt hours, it is an inexpensive choice providing efficient power
  • 48 V DC battery can be used as a convenient spare, giving you peace of mind
CyberPower logo
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Information
    Amperage : 70 A DC Voltage : 48 VDC Battery Quantity : 8 Battery Size : 12 V / 9 Ah Battery Type : Sealed Lead-Acid Battery Built-in Charger : Yes Hot Swappable : Yes Replacement Battery Cartridge : RB1290X4J Replacement Battery Cartridge Quantity : 2 Typical Recharge Time : 6 Hours User Replaceable Battery : Yes Physical Dimensions - (WxHxD) (cm) : 43.43 x 8.64 x 50.04 (cm) Physical Dimensions - (WxHxD) (in) : 17.1 x 3.4 x 19.7 (in) Physical Dimensions - (WxHxD) (mm) : 434 x 86 x 500 (mm) Weight (kg) : 30.03 Weight (lb) : 66.2 Shipping Dimensions - (WxHxD) (cm) : 55.88 x 26.67 x 62.23 (cm) Shipping - Dimensions (WxHxD, in) : 22.0 x 10.5 x 24.5 (in) Shipping - Dimensions (WxHxD, mm) : 558.8 x 266.7 x 622.3 (mm) Shipping - Weight (kg) : 36.47 Shipping - Weight (lb) : 80.4 Circuit Breaker : 70 A Input Frequency Range : 50 Hz - 60 Hz Input Plug Type : IEC-320 C14 Input Voltage Range : 100 VAC - 240 VAC Nominal Input Voltage : 120 VAC USB Charge Port : No Color : Black Material of Construction : Metal Rack Height : 2U Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 95 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Relative Humidity : 0 - 95% (non-condensing) Storage Temperature : 5 - 113 °F (-15 - 45 °C) Models : PR1000LCDRTXL2UA, PR1500LCDRTXL2U, PR1500RTXL2U, PR1500RTXL2UC, PR1500RTXL2UCN, PR2000RTXL2U, PR2000RTXL2UC, PR2000RTXL2UCN, PR2200LCDRTXL2U, PR2200RTXL2U, PR2200RTXL2UC, PR2200RTXL2UCN, PR3000LCDRTXL2U, PR3000RTXL2U, PR3000RTXL2UC, PR3000RTXL2UCN, OR1500LCDRTXL2U, and OR2200LCDRTXL2U. Environmental : RoHS Compliant Safety : CE, RCM , UL1778, cUL, FCC Class B, VCCI Extended Warranty Option : WEXT5YR-BP1 Product Warranty : 3 Year Limited Warranty
  • Battery Capacity
    9000 mAh
  • Battery Chemistry
    Lead Acid
  • Battery Size
    12V
  • Brand Name
    CyberPower
  • Certifications & Standards
    CE RCM UL1778 cUL FCC Class B VCCI
  • Compatibility
    PR1500LCDRTXL2U PR1500RTXL2U PR2000RTXL2U PR2200LCDRTXL2U PR2200RTXL2U PR3000LCDRTXL2U PR3000RTXL2U OR1500LCDRTXL2U PR1000LCDRTXL2UA CyberPower UPS Models: PR1500RTXL2UC PR1500RTXL2UCN PR2000RTXL2UC PR2000RTXL2UCN PR2200RTXL2UC PR2200RTXL2UCN PR3000RTXL2UC PR3000RTXL2UCN OR2200LCDRTXL2U
  • Country of Origin
    China
  • Depth
    19.7"
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack/Tower
  • Height
    3.4"
  • Hot Swappable
    Yes
  • Input Voltage
    120 V
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    BP48VP2U02
  • Maximum Battery Recharge Time
    6 Hour
  • Maximum Operating Temperature
    104°F (40°C)
  • Minimum Operating Temperature
    32°F (0°C)
  • Output Voltage
    48 V DC
  • Product Color
    Black
  • Product Condition
    New
  • Product Model
    BP48VP2U02
  • Product Name
    BP48VP2U02 Extended Battery Modules
  • Product Series
    Extended Battery Modules
  • Product Type
    External Battery Pack
  • Rack Height
    2U
  • Width
    17.1"
