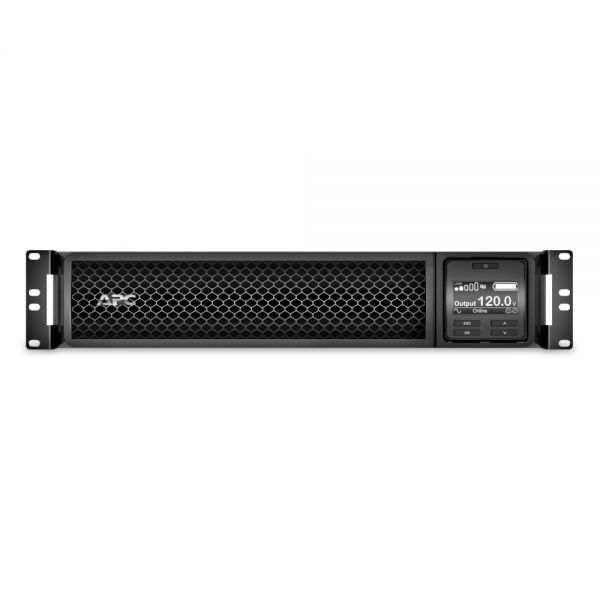

APC by Schneider Electric Smart-UPS SRT 2200VA RM 120V
- 2200VA/1800W double-conversion on-line pure sine wave 2U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit included)
- Delivers clean power with zero transfer time for critical or sensitive devices
Product Description
APC by Schneider Electric Smart-UPS SRT 2200VA RM 120V - Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
More from the Manufacturer
- 2200VA/1800W double-conversion on-line pure sine wave 2U rackmount UPS
- Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
- Rack/Tower convertible (rail kit included)
- Delivers clean power with zero transfer time for critical or sensitive devices
- Add up to 10 external battery packs (SRT72RMBP) for extended runtime
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- 1800 W load capacity - backup power for your valuable electronics
- 2200 VA load capacity provides sufficient backup during power failures
- 1 batteries for better reliance and maximum dependability
- 3 Hour typical battery recharge time for better convenience and prolonged, productive usage
- Replaceable battery for reliable output for prolonged usage with maximum efficiency
- Lead Acid battery chemistry delivers energy to the server through an easily controlled reaction
- NEMA 5-20P plug/connector type for convenient usage with added dependability
- NEMA 5-20P receptacle type provides secure, reliable connection with added productivity
- Double Conversion Online UPS with server application/usage to ensure maximum dependability and optimal performance
Product Specifications
-
Additional Warranty Information3 years repair or replace (excluding battery) and 2 years for battery
-
Application/UsageNetwork Workstation Server
-
Battery ChemistryLead Acid
-
Battery Energy1101.6 kJ
-
Battery Life5 Year
-
Brand NameAPC by Schneider Electric
-
California Proposition 65 WarningWARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Certifications & StandardsENERGY STAR V2.0 (USA)
-
Cord Length6 ft
-
Country of OriginPhilippines
-
DC System Voltage72 V DC
-
Depth23"
-
EPO PortYes
-
EU RoHS Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458563181&lang=en-us
-
End of Life Manual Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612036_EN
-
Energy Star URLhttps://www.energystar.gov/products/uninterruptible_power_supplies
-
Environmental CertificationRoHS
-
Environmental Profile Availabilityhttps://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612036_EN
-
Environmentally FriendlyYes
-
Form FactorRack-mountable
-
Green PremiumYes
-
Height3.3"
-
Hot SwappableYes
-
Input Frequency70 Hz
-
Input Voltage120 V
-
Limited Warranty3 Year
-
Load Capacity (VA)2200 VA
-
Load Capacity (Watt)1800 W
-
Manufacturer Part NumberSRT2200RMXLA
-
Maximum Operating Elevation10000 ft
-
Maximum Operating Temperature104°F (40°C)
-
Maximum Storage Elevation50000 ft
-
Mounting PreferenceLower
-
Network ManagementSmartSlot
-
Number of Batteries1
-
Number of Battery & Surge Outlets7
-
Optimized Energy EfficiencyYes
-
Output Voltage120 V AC
-
Package ContentsSmart-UPS SRT 2200VA RM 120V CD with software Documentation CD Installation guide Rack mounting hardware USB cable Rack mounting brackets Rack mounting support rails Warranty card
-
Plug/Connector TypeNEMA 5-20P
-
Product ColorBlack
-
Product LineSmart-UPS
-
Product NameSmart-UPS SRT 2200VA RM 120V
-
Product Take Back ProgramYes
-
Product TypeDouble Conversion Online UPS
-
REACH Declaration URLhttps://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458563181&lang=en-us
-
REACH free of SVHCNo
-
Rack Height2U
-
Receptacle Detail1 x NEMA L5-20R 6 x NEMA 5-20R
-
Receptacle TypeNEMA 5-20P
-
Replaceable BatteryYes
-
RoHS Exemption Informationhttps://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SRT2200RMXLA_ROHS_DECLARATION&p_FileName=SRT2200RMXLAKIT_ROHS_DECLARATION_US.pdf
-
Software IncludedPowerchute Serial Edition
-
Sound Emission (A-Weighted)55 dB(A)
-
Status IndicatorsLCD Display
-
Storage Relative Humidity0% - 95%
-
Storage Temperature-4°F (-20°C) - 122°F (50°C)
-
Surge Energy Rating340 J
-
Thermal Dissipation156.79 W
-
Typical Battery Recharge Time3 Hour
-
Waveform TypeSine Wave
-
Width17"
