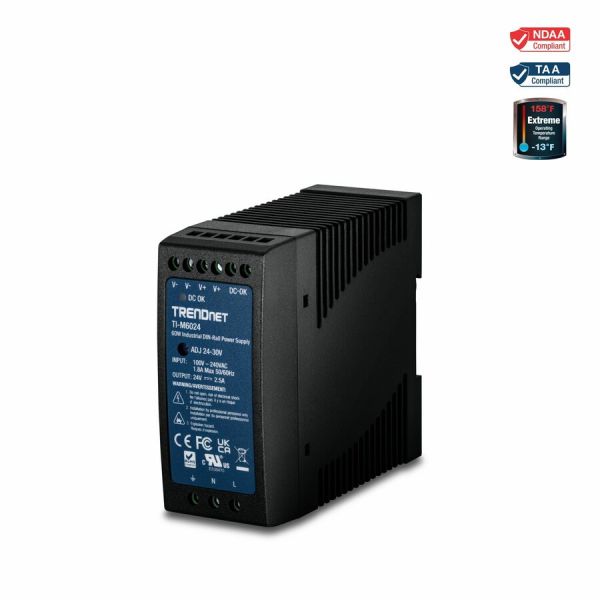

TRENDnet TI-M6024, 60W, 24V DC, 2.5A AC to DC DIN-Rail Power Supply
Product #:
SYNX4337813
+2View All
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
TRENDnet TI-M6024, 60W, 24V DC, 2.5A AC to DC DIN-Rail Power Supply
60W Industrial DIN-Rail Power Suppl
TRENDnet's AC to DC Industrial DIN-Rail Power Supply, model TI-M6024, supplies up to 60W (24V DC, 2.5A) of power to industrialequipment, such as switches, injectors, and WiFi access points. This DIN-Rail power supply comes with an integrated DIN-Railmount, and short circuit, over power, and overload current protection.
DEVICE INTERFACE: Input: 100 - 240V AC, 47 - 63Hz, 1.8A 120 - 370V DC; Output: 60W, 24 - 30V, 0 - 2.5A; DIN-Rail:TS-35/7.5 or 15
60W POWER: The power supply provides up to 60W of power (24V DC, 2.5 A)
OUTPUT VOLTAGE: 24 - 30V DC
HOUSING: IP30 Rated DIN-Rail Mount
OPERATING TEMPERATURE: The IP30 Rated housing provides an extreme -20 to 70 °C (-4 to 158 °F) operating temperature range
PEAK LOAD CAPABILITY: 150% peak load capability
COOLING METHOD: Natural air convection is used to cool the 60W power supply
PROTECTION FUNCTIONS: Short circuit/overload/over voltage/over current protection with a self-recovery protection type.
UL 62368 Approved
ADDITIONAL FEATURES: 100% full load burn-in test; Built-in DC OK relay contact
More from the Manufacturer
DEVICE INTERFACE: Input: 100 - 240V AC, 47 - 63Hz, 1.8A 120 - 370V DC; Output: 60W, 24 - 30V, 0 - 2.5A; DIN-Rail:TS-35/7.5 or 15
60W POWER: The power supply provides up to 60W of power (24V DC, 2.5 A)
OUTPUT VOLTAGE: 24 - 30V DC
HOUSING: IP30 Rated DIN-Rail Mount
OPERATING TEMPERATURE: The IP30 Rated housing provides an extreme -20 to 70 °C (-4 to 158 °F) operating temperature range
PEAK LOAD CAPABILITY: 150% peak load capability
COOLING METHOD: Natural air convection is used to cool the 60W power supply
PROTECTION FUNCTIONS: Short circuit/overload/over voltage/over current protection with a self-recovery protection type.
UL 62368 Approved
ADDITIONAL FEATURES: 100% full load burn-in test; Built-in DC OK relay contact
More from the Manufacturer
- IP30 rated industrial power supply with integrated DIN-Rail mount
- Provides up to 60W of power (24V DC, 2.5A)
- Supported output voltage 24 - 30V DC
- High efficiency 86% and low power dissipation
- 150% peak load capability
- Cooling by natural air convection
- Short circuit/overload/over voltage protection
- UL 62368 approved
- 100% full load burn-in test
- Built-in DC OK relay contact
- Extreme -20 to 70 °C (-4 to 158 °F) operating temperature range
- Authentic wiring configuration to the motherboard by the company ensuring reliability and durability
- The compatible output voltage of 24 V DC ensures that the device is ready to use when needed
- Providing up to 60 W maximum output power
Product Specifications
-
Additional InformationCertifications: CE UL 508 UL 60950-1 CB 60950-1 TUV EN60950-1 Class I Div.2 hazardous locations T4
-
Brand NameTRENDnet
-
CompatibilityNetwork Cameras Ti-G50 Ti-G62 Ti-G80 Ti-F11sfp Access Points TRENDnet Switches:
-
Country of OriginChina
-
Form FactorDIN Rail
-
Height3"
-
Input Voltage120 V AC 230 V AC
-
Length10"
-
Limited Warranty3 Year
-
Manufacturer Part NumberTIM6024
-
NDAA CompliantYes
-
Output Current2.50 A
-
Output Power60 W
-
Output Voltage24 V DC
-
Product ConditionNew
-
Product ModelTI-M6024
-
Product NameDIN Rail 24V 60W Power Supply for TI-G50, TI-G62, TI-G80, TI-F11SFP
-
Product TypeProprietary Power Supply
-
Width5"
