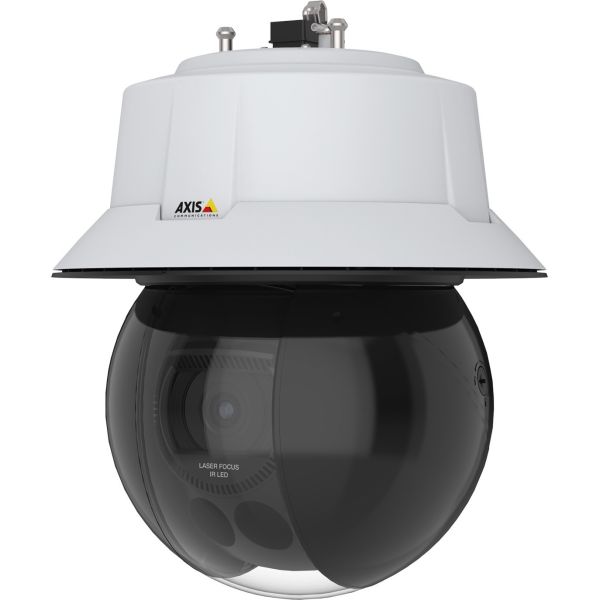

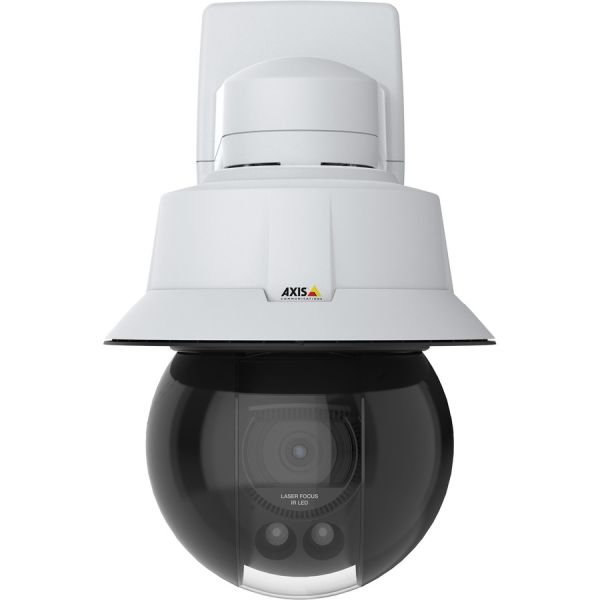

AXIS Q6315-LE 2 Megapixel Outdoor Full HD Network Camera - Color - Dome - White - TAA Compliant
- 1/2" sensor with 31x optical zoom
- IR illumination, D/N functionality
- Autotracking 2, orientation aid and AXIS Object Analytics
- Laser focus for precise focus with Quick-zoom <1sec
Product Description
AXIS Q6315-LE 2 Megapixel Outdoor Full HD Network Camera - Color - Dome - White - TAA Compliant - Ideal for city surveillance, AXIS Q6315-LE offers a ½" sensor and 31x optical zoom. It features laser focus for precise focus every time - even in the dark. And, Speed Dry functionality for crisp, clear images in rainy weather.
Super surveillance- day and night
AXIS Q6315-LE features very light-sensitive ½" inch sensor to deliver clear, bright images and better handling of shadows even in challenging light conditions. Including IR Illumination and D/N functionality, it's perfect for surveillance in pitch darkness without the need for additional lighting. With 31x optical zoom, a built-in laser, and quick-zoom functionality, AXIS Q6315-LE allows you to easily follow fast-moving objects. Plus, it offers laser focus for precise focus- every time. It's possible to mount this camera in AXIS Q6100-E allowing for continuous 360° rotation for total situational awareness. And, because it uses the same bracket, power supply, and network cable as AXIS Q6100 you get cost-efficient installation. Furthermore, Zipstream with support for H.264 and H.265 significantly lowers bandwidth and storage requirements without compromising image quality.
Built-in advanced analytics
This top-of-the-line camera contains all the functionality you need to track and identify suspect behavior. It offers autotracking 2 with click and track functionality for active object tracking. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation. Where privacy must be kept, privacy masking with mosaic lets you pixelate whole areas such as a neighboring property. Plus, with chameleon masking, it automatically changes the color in the masking depending on the background color of the image.
Keeping you secure
AXIS Q6315-LE includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified to ensure secure storage of all cryptographic keys and certificates. This IK10-rated vandal-resistant camera is protected against the ingress of dust and high pressure water jets from any direction (IP66 rating). It offers shock detection, which allows the camera to send an alarm when it has been hit. And, with support for fiber connection and PoE, it allows for cost-effective installation and long-distance connections.
- 1/2" sensor with 31x optical zoom
- IR illumination, D/N functionality
- Autotracking 2, orientation aid and AXIS Object Analytics
- Laser focus for precise focus with Quick-zoom <1sec
- TPM, FIPS 140-2 level 2 certified
- Up to 1920 x 1080 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 214.64 mm maximum focal length provides incredible detail and how effective is your network camera
- f/1.36 maximum aperture for better light absorption and dependable, better-quality results
- 31x optical zoom for desired image clarity and maximum capturing convenience
- Up to 984.25 ft of night vision
- Full HD recording format for stunning, vivid video results with maximum efficiency
- Infrared night vision type consumes very little electrical power and provides evidentiary quality night-time surveillance video
- Varifocal lens type to ensure maximum surveillance productivity with added feasibility
- AC power source type for your network camera provides maximum energy feasibility and added surveillance productivity
Product Specifications
-
Brand NameAXIS
-
Color SupportedColor
-
Connectivity TechnologyWired
-
Diameter7.6"
-
DurabilityDust Resistant Vandal Resistant Water Resistant
-
Effective Camera Resolution2 Megapixel
-
FeaturesAuto Tracking Automatic Defog Automatic White Balance Built-in IR LED Cross Line Detection Day/Night Electronic Image Stabilization HTTPS Encryption Human Detection Password Protection Privacy Masking PTZ Removable IR Cut-off Filter SD Card Local Storage Wide Dynamic Range
-
Field of ViewHorizontal field of view: 60.6°- 2.0° - Vertical field of view: 36.5°- 1.1°
-
Form FactorDome
-
HD RecordingYes
-
Height10.3"
-
Image Sensor TypeCMOS
-
Impact Protection RatingIK10
-
Ingress Protection RatingIP66 IP67
-
Input Voltage100 V AC 240 V AC
-
Lens IncludedYes
-
Lens TypeVarifocal
-
Limited Warranty5 Year
-
Longest Shutter Speed1/2 Second
-
Manufacturer Part Number01925-004
-
Maximum Aperturef/1.36
-
Maximum Focal Length214.64 mm
-
Maximum Frame Rate60 fps
-
Maximum Operating Temperature122°F (50°C) 122°F (50°C)
-
Maximum Video Resolution1920 x 1080
-
Minimum Aperturef/4.6
-
Minimum Focal Length6.91 mm
-
Minimum Operating Temperature-58°F (-50°C) -58°F (-50°C)
-
Mount TypeBracket Mount Ceiling Mount Corner Mount Parapet Mount Pendant Mount Pole Mount Recessed Mount Wall Mount
-
NDAA CompliantYes
-
Network (RJ-45)Yes
-
Night VisionYes
-
Night Vision TypeInfrared
-
Operating Humidity100%
-
Optical Zoom31x
-
Package ContentsAXIS Q6315-LE PTZ Network Camera Installation Guide Windows Decoder 1-user License 60 W Midspan (Including Power Cable) IP66 Rated Network Connector Repaint Template Paint Paper
-
Power Source TypeAC PoE
-
Product ColorWhite
-
Product ModelQ6315-LE
-
Product NameQ6315-LE PTZ Network Camera
-
Product TypeNetwork Camera
-
Recording FormatsFull HD
-
Remote ManagementYes
-
Shortest Shutter Speed1/111000 Second
-
Storage TypeMemory Card
-
Video FormatsH.264 H.264 (MP) H.264 (MPEG-4 Part 10/AVC) H.264 BP H.264 HP H.265 H.265 (MP) H.265 (MPEG-H Part 2/HEVC) Motion JPEG
