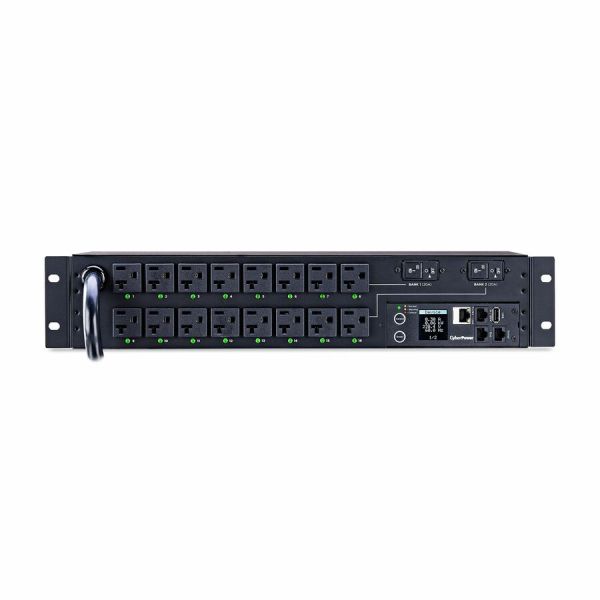

CyberPower PDU41003 Single Phase 100 - 120 VAC 30A Switched PDU
- Delivers AC power to servers, equipment, and connected devices
- Switch-free design safeguards against accidental power shutdown
- Provides local and remote control for individual and multiple outlets
- Provides immediate updates about power events via email, SMS text, or SNMP traps
Product Description
CyberPower PDU41003 Single Phase 100 - 120 VAC 30A Switched PDU - The CyberPower PDU41003, a 2U rackmount, monitored power distribution unit (PDU) provides 100-120Vac, 30A output via sixteen (16) NEMA 5-20R receptacles from a single NEMA L5-30P input power plug. The switched outlet receptacles can be managed individually or collectively over the network, using the CyberPower Management Console, a web browser, and the RJ45 Ethernet port for network connection, or locally from the Power Control Display.
The PDU41003 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. Power Distribution
Delivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Switchable Outlets
Provides local and remote control for individual and multiple outlets. Local control: turn on/turn off outlets and disable unused outlets. Remote control: restart outlets and devices, turn on/turn off, schedule power on/off sequencing, and disable unused outlets.
CyberPower Management Console
A hardware interface built into Monitored and Switched PDUs. Its functionality includes the ability to switch PDU outlets on and off, reboot connected equipment locally or remotely, schedule power cycling of attached equipment, and perform other tasks, such as load monitoring and event logging.
Remote and Local Monitoring
Enables offsite and onsite tracking of PDU vitals; provides outlet control for individual and networked clients.
Automatic Event Notifications
Provide immediate updates about power events via email, SMS text, or SNMP traps.
Upgradeable Firmware
Downloadable improvements (firmware updates) to programs that run the PDU.
Power Control Display
Provides up-to-date status information about the PDU and power situation and allows for local set-up and configuration.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
Durable Metal HousingProtects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Three-Year Limited Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
- Delivers AC power to servers, equipment, and connected devices
- Switch-free design safeguards against accidental power shutdown
- Provides local and remote control for individual and multiple outlets
- Provides immediate updates about power events via email, SMS text, or SNMP traps
- Includes 3-year limited warranty
- PDU provides power control as remote controlled relay & load monitoring
- With monitored PDU, you can remotely monitor single-or three-phase voltage easily to ensure maximum power supply efficiency
- NEMA 5-20R receptacle type to ensure maximum productivity with added feasibility
- Non-Modular design for better usability and increased efficiency
- Single Phase phase PDU provides optimal power output with added usability
- NEMA L5-30P plug/connector type for reliable, productive connectivity and optimal power output
- 120 V AC input voltage for maximum feasibility and added productivity
- 120 V AC output voltage for optimal performance with maximum feasibility
Product Specifications
-
Brand NameCyberPower
-
Country of OriginChina
-
Environmentally FriendlyYes
-
Height3.5"
-
Input Current30 A
-
Input Voltage120 V AC
-
Input Voltage Range100 V AC - 120 V AC
-
Length4.4"
-
Limited Warranty3 Year
-
ManagementIPv4 TCP/IP UDP SNMPv1 HTTP NTP DNS Telnet DHCP SMTP FTP IPv6 SNMPv3 HTTPs SSH SSL TLS LDAP(S) RADIUS Syslog CLI Windows AD
-
Manufacturer Part NumberPDU41003
-
Mount TypeRack-mountable Wall-mountable
-
Mounting OrientationHorizontal/Vertical
-
Network (RJ-45)Yes
-
Output Voltage120 V AC
-
Output Voltage Range100 V AC - 120 V AC
-
Package ContentsPDU41003 PDU 2 x Mounting Brackets 12 x M4x8 Bracket Mounting Screws 6 x M5x12 Rack Mounting Screws and Washers 2 x Cord Retention Trays 12 x M3x6 Cord Retention Tray Screws 24 x Cable Ties, RJ45/DB9 Serial Port Connection Cable User Manual Registration Card Download Card
-
PhaseSingle Phase
-
Plug/Connector Detail1 x NEMA L5-30P
-
Plug/Connector TypeNEMA L5-30P
-
Product ModelPDU41003
-
Product NamePDU41003 16-Outlets PDU
-
Product SeriesSwitched PDU
-
Product TypePDU
-
Protection TypeOverload Protection
-
Rack Height2U
-
Receptacle Detail16 x NEMA 5-20R
-
Receptacle TypeNEMA 5-20R
-
Width17"
