Eaton 1.4kW Single-Phase Switched PDU, LX Interface, 120V Outlets (8 5-15R), NEMA 5-15P, 12 ft. (3.66 m) Cord, 1U Rack, TAA
Product #:
IGRM2KL700
$532.00
Loading...
Product Description
Eaton 1.4kW Single-Phase Switched PDU, LX Interface, 120V Outlets (8 5-15R), NEMA 5-15P, 12 ft. (3.66 m) Cord, 1U Rack, TAA
Switched - NEMA 5-15P - 8 x NEMA 5-15R - 120 V AC - 1U - Horizontal - Rack Mount - Rack-mountable - TAA Compliant
The PDUMH15NET2LX 1.4kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

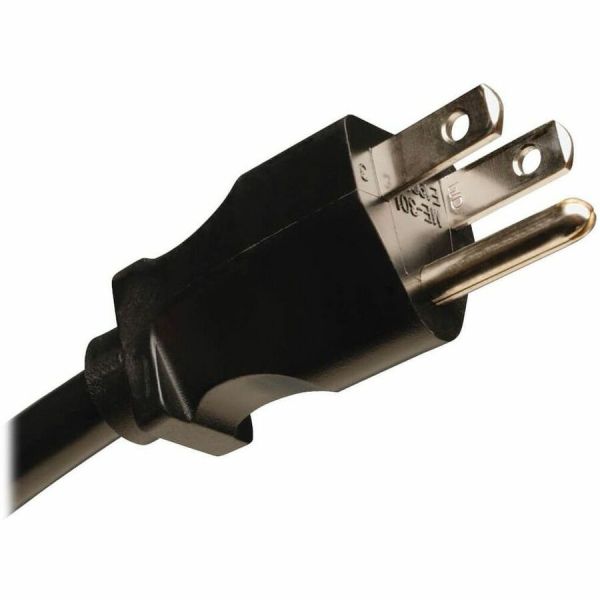

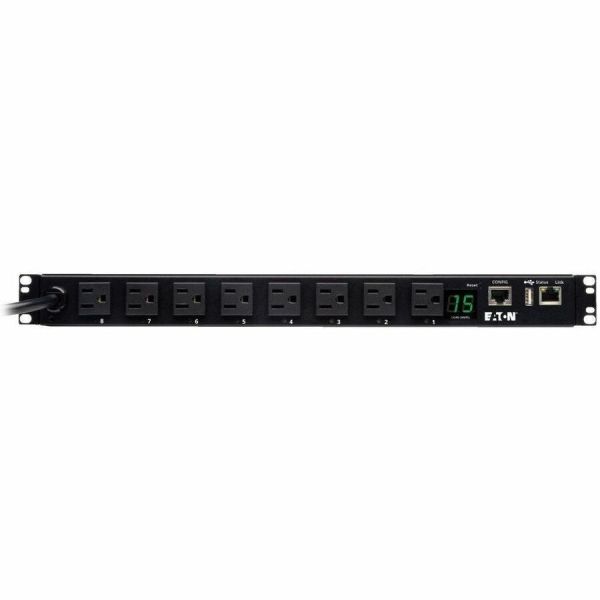

The 1U PDU features eight switched NEMA 5-15R outlets with an included cord retention bracket to prevent cables from becoming accidentally disconnected. A 12-foot cord with NEMA 5-15P plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The rack-mount PDU installs in 1U of space in EIA-standard 19-inch racks. You can also mount it vertically in 0U of rack space or on a wall or under a counter with the included brackets and user-supplied screws.
More from the Manufacturer
The 1U PDU features eight switched NEMA 5-15R outlets with an included cord retention bracket to prevent cables from becoming accidentally disconnected. A 12-foot cord with NEMA 5-15P plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The rack-mount PDU installs in 1U of space in EIA-standard 19-inch racks. You can also mount it vertically in 0U of rack space or on a wall or under a counter with the included brackets and user-supplied screws.
More from the Manufacturer
- 1.4kW 120V single-phase switched 1U PDU
- 8 individually controllable NEMA 5-15R outlets
- Built-in Java-free LX Platform interface for remote access 24/7
- Digital ammeter for on-site load monitoring in real time
- NEMA 5-15P input with 12 ft. AC power cord
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- Remotely control individual outlets for rebooting of locked equipment with switched PDUs
- NEMA 5-15R receptacle type to ensure maximum dependability and optimal performance
- Single Phase phase PDU for reliable performance with maximum productivity
- NEMA 5-15P plug/connector type for efficient connectivity and feasible power output
- 120 V AC input voltage for maximum feasibility and added productivity
- 100 V AC output voltage for maximum dependability and added productivity
Loading...
Product Specifications
-
Brand NameEaton
-
Country of OriginTaiwan
-
Depth4.3"
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Height1.8"
-
Input Current15 A
-
Input Voltage120 V AC
-
Limited Warranty2 Year
-
ManagementProtocols: IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP NTP
-
Manufacturer Part NumberPDUMH15NET2LX
-
Mount TypeRack-mountable
-
Mounting OrientationHorizontal
-
Output Voltage100 V AC 120 V AC 127 V AC
-
Package ContentsPDUMH15NET2LX 8-Outlet PDU Built-in LX Platform Interface Configuration Cable 8 x Cable Ties Cord Retention Bracket Mounting Hardware Owner's Manual
-
PhaseSingle Phase
-
Plug/Connector TypeNEMA 5-15P
-
Power Rating (Watt)1520 W
-
Product ModelPDUMH15NET2LX
-
Product NamePDUMH15NET2LX 8-Outlet PDU
-
Product TypePDU
-
Rack Height1U
-
Receptacle Detail8 x NEMA 5-15R
-
Receptacle TypeNEMA 5-15R
-
Width17.5"
