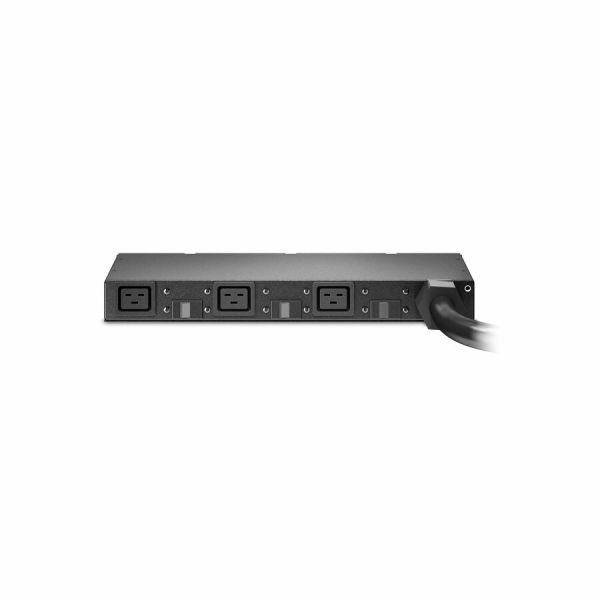

Rack PDU, Basic, 0U/1U, 208V, 8.6kW, (3) C19

Product #: SYNX11414289
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Rack PDU, Basic, 0U/1U, 208V, 8.6kW, (3) C19
Basic - NEMA L15-30P - 3 x IEC 60320 C19 - 200 V, 208 V - 8600 W - Overcurrent Protection - 12 ft Cord Length - 1U - Horizontal - Rack-mountable - Tower
Reliable rack power distribution
  • PDU distributes AC power to multiple servers and balances the load on the servers
  • Basic PDU is the space-saving and cost-effective way to deliver power
  • IEC 60320 C19 receptacle type to ensure maximum usability and reliable power output
  • Perfect placement of your PDU with Front ensure lesser cooling cost
  • NEMA L15-30P plug/connector type for better, dependable connectivity and desired power output
  • 200 V input voltage for maximum feasibility and added productivity
  • 230 V AC output voltage for optimal performance with maximum feasibility
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Additional Warranty Information
    2 years repair or replace
  • Brand Name
    APC by Schneider Electric
  • Certifications & Standards
    cUL Listed|UL Listed
  • Cord Length
    12 ft
  • Depth
    5"
  • EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458562838&lang=en-us
  • End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_EN
  • Environmentally Friendly
    Yes
  • For Country/Region
    United States
  • Form Factor
    Tower
  • Height
    1.7"
  • Input Current
    30 A
  • Input Voltage
    200 V 208 V
  • Limited Warranty
    2 Year
  • Manufacturer Part Number
    AP6037A
  • Mercury Free
    Yes
  • Mount Type
    Rack-mountable
  • Mounting Preference
    No Preference
  • Optimized Energy Efficiency
    Yes
  • Output Voltage
    230 V AC
  • Package Contents
    Basic Rack PDU AP6037A Installation guide Safety guide
  • Placement
    Front
  • Plug/Connector Detail
    1 x NEMA L15-30P
  • Plug/Connector Type
    NEMA L15-30P
  • Power Rating (Watt)
    8600 W
  • Product Model
    AP6037A
  • Product Name
    Basic Rack PDU AP6037A
  • Product Series
    Basic
  • Product Take Back Program
    Yes
  • Product Type
    PDU
  • Protection Type
    Overcurrent Protection
  • REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=458562838&lang=en-us
  • REACH free of SVHC
    Yes
  • Rack Height
    1U
  • Receptacle Detail
    3 x IEC 60320 C19
  • Receptacle Type
    IEC 60320 C19
  • RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP6037A_ROHS_DECLARATION&p_FileName=AP6037AKIT_ROHS_DECLARATION_US.pdf
  • Toxic Heavy Metal Free
    Yes
  • Width
    15.3"
