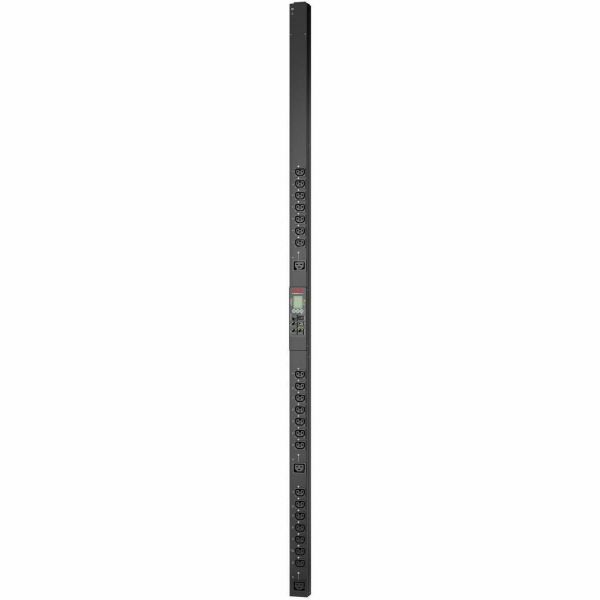

APC NetShelter Switched Rack PDU, 9K series, 0U, 20A, 208V, 21 C13/C15 and 3 C19/C21, L620 Cord

Product #: SYNX6042804
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

APC NetShelter Switched Rack PDU, 9K series, 0U, 20A, 208V, 21 C13/C15 and 3 C19/C21, L620 Cord
Switched - IEC 60320 L6-20P - 3 x IEC 60320 C19/C21, 21 x IEC 60320 C13/C15 - 200 V, 208 V - Circuit Protection, Accidental Power Shutdown - Network (RJ-45) - 0U - Vertical - Rack-mountable - Tower
It is a switched rack PDU with maximum current capacity of 20A and an input voltage of 208V. It features 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via an IEC 60320 L6-20P plug. This PDU is designed for ZeroU mounting.
More from the Manufacturer
  • It can handle a maximum power capacity of 11.5kW, suitable for demanding applications
  • It includes 21 IEC C13 and C15 outlets and 3 IEC C19 and C21 outlets, offering extensive connectivity
  • The ZeroU mounting design helps save rack space and improves cable management
  • Allows for remote monitoring and control, enhancing power management capabilities
  • PDU distributes AC power to multiple servers and balances the load on the servers
  • With a built-in digital current meter avoid potential overloads via switched PDUs

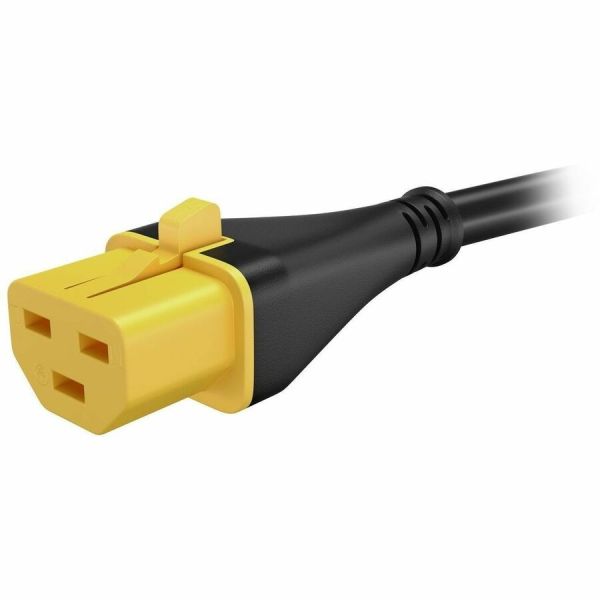

  • IEC 60320 C19/C21 receptacle type to ensure maximum usability and reliable power output
  • With Side mount your PDUs in proper angle for efficient working

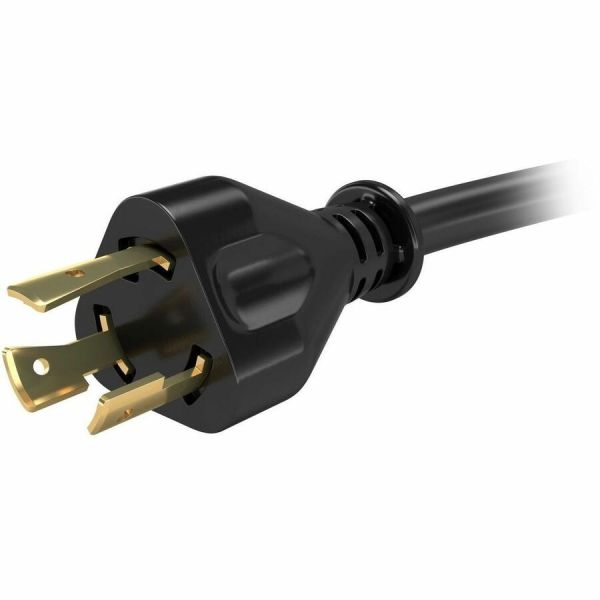

  • IEC 60320 L6-20P plug/connector type for efficient connectivity and feasible power output
  • 200 V input voltage for better reliance and maximum dependability
  • 200 V AC output voltage for optimal performance with maximum feasibility
Guides & Information
Related Articles
Need more information? Ask a Question

Product Specifications

  • Brand Name
    APC by Schneider Electric
  • Certifications & Standards
    cUL Listed|FCC part 15 class A|PSE
  • Country of Origin
    India
  • Depth
    1.8"
  • EU RoHS Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=557330945&lang=en-us
  • End of Life Manual Availability
    https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612033_EN
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmental Profile Availability
    https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612033_EN
  • Environmentally Friendly
    Yes
  • For Country/Region
    United States
  • Form Factor
    Tower
  • Height
    70.7"
  • Input Current
    20 A
  • Input Voltage
    200 V 208 V
  • Limited Warranty
    3 Year
  • Management
    Web SNMP Telnet
  • Manufacturer Part Number
    APDU9959NA3
  • Mercury Free
    Yes
  • Mount Type
    Rack-mountable
  • Mounting Preference
    No Preference
  • Network (RJ-45)
    Yes
  • Optimized Energy Efficiency
    Yes
  • Output Voltage
    208 V AC 200 V AC
  • Package Contents
    Rack PDU 9000 Switched, ZeroU, 20A, 208V, (21) C13/C15 & (3) C19/C21, L620 Cord Installation guide Rack mounting brackets Safety guide
  • Placement
    Side
  • Plug/Connector Type
    IEC 60320 L6-20P
  • Power Rating (VA)
    3300 VA
  • Power Rating (Watt)
    17.30 kW
  • Product Line
    NetShelter
  • Product Name
    Rack PDU 9000 Switched, ZeroU, 20A, 208V, (21) C13/C15 & (3) C19/C21, L620 Cord
  • Product Series
    9000
  • Product Take Back Program
    No
  • Product Type
    PDU
  • Protection Type
    Accidental Power Shutdown Circuit Protection
  • REACH Declaration URL
    https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=557330945&lang=en-us
  • REACH free of SVHC
    No
  • Rack Height
    0U
  • Receptacle Detail
    21 x IEC 60320 C13/C15 3 x IEC 60320 C19/C21
  • Receptacle Type
    IEC 60320 C13/C15 IEC 60320 C19/C21
  • RoHS Exemption Information
    https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=APDU9959NA3_ROHS_DECLARATION&p_FileName=APDU9959NA3KIT_ROHS_DECLARATION_US.pdf
  • WEEE Statement
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Width
    2.2"
