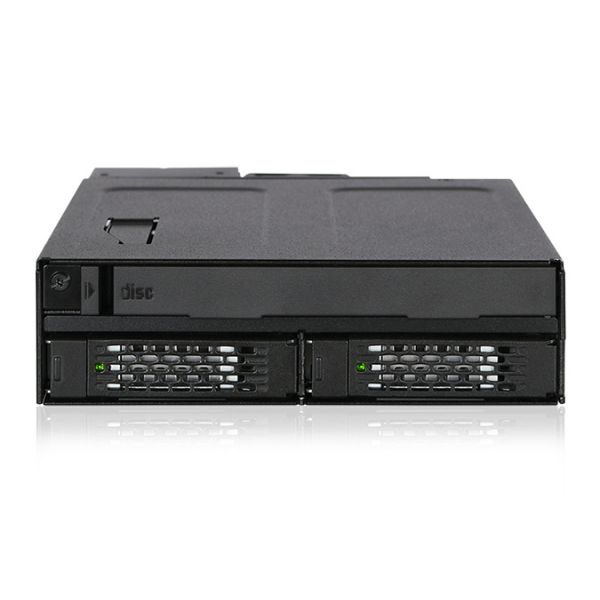

Icy Dock ToughArmor MB602SPO-B Drive Enclosure for 5.25" 6Gb/s SAS, Serial ATA/600 - Serial ATA/300 Host Interface Internal - Black

2 x HDD Supported - 2 x SSD Supported - 1 x 5.25" Bay - 2 x 2.5" Bay - Metal
Product Number: IGRM6LG389
  • Rugged heavy-duty steel construction designed for industrial and commercial applications such as military and medical, servers, data centers, workstations, and portable computer systems
  • Provides amazing solution for expanding PC storage
  • Perfect for applications that must meet a flammability requirement
  • Fits 2x SSDs or HDDs between 5mm and 15mm in height
More details
$82.14
Free Shipping Estimated Delivery
Favorite
Compare
Request Quote

Product Description

Icy Dock ToughArmor MB602SPO-B Drive Enclosure for 5.25" 6Gb/s SAS, Serial ATA/600 - Serial ATA/300 Host Interface Internal - Black - Introducing the ToughArmor MB602SPO-B ruggedized mobile rack for hot-swapping 2x SATA/SAS SSDs and HDDs up to 15mm in height, and 1x Slim 12.7mm or Ultra-Slim 9.5mm CD/DVD/Blu-ray ROM optical disk drive reader for the external 5.25" bay. Featuring industrial full-metal construction inside and out, and designed for commercial applications such as military and medical systems, airborne and shipboard PCs, in-vehicle systems, servers, workstations, and mobile computer systems. Maintain optimal drive temperatures with the user-configurable 40mm cooling fan and plenty of ventilation holes throughout the enclosure. Advanced removable trays with anti-vibration protect drives in harsh environments, and built-in individual status LEDs give you drive updates at a glance.
Maximize Space-Efficiency
The high-density design of ToughArmor MB602SPO-B packs two full-height 2.5" SSD/HDD hot-swap bays and one Slim/Ultra-Slim CD/DVD/Blu-ray ROM optical disk drive into a single 5.25" drive bay, perfect for space-sensitive applications such as powerhouse PC, portable military workstation, and rackmount industrial PC.
MB602SPO-B's newly designed optical drive bracket features an adaptable design to support any Slim 12.7mm or Ultra-Slim 9.5mm CD/DVD/Blu-Ray ROM optical disk drive reader.
MB602SPO-B's tray is designed to support HDDs and SSDs up to 15mm in height, making them compatible with SAS drives as well as SATA drives. SAS drives are used in enterprise applications such as long-term archival for their long lifespan, higher reliability, and faster rotational speeds up to 15,000 RPM for fast data access. All SAS drives are supported, including Seagate Exos, HGST Ultrastar C series, and Dell, HPE, and Toshiba SAS drives.
Designed for Versatility
Whether you're using a slim or an ultra-slim disk drive, installation is easy using the conveniently labeled screw holes. Once connected, simply secure the built-in screw and your drive is locked into place. This ensures that your optical disk drive reader stays put, even under heavy movement or vibrations. When using an Ultra-Slim (9.5mm) optical reader, the included foam spacer can be installed on top of the ODD for a cleaner look.
When it's time to replace or upgrade your CD/DVD/Blu-ray optical disk drive reader, removal is just as easy. When the bracket screw is loosened, the spring-loaded ejection arm is revealed. Simply pull the ejection arm to remove the optical disk drive from the enclosure.
Built Tough
ICY DOCK's ToughArmor uses a ruggedized full-metal construction throughout the enclosure and trays, and this trend continues with the MB602SPO-B. ToughArmor is specifically designed for industrial applications operating in strenuous conditions, such as in military and medical applications, avionics systems, factory and warehouse machinery, and any application requiring a flammability rating.

For extra protection, the EZ-slide trays are fully constructed with metal provided maximum protection to your valuable SSD inside and outside of the unit. Anti-vibration technology built into the tray reduces vibration from mechanical hard drives, reducing noise and protecting drives from vibration damage. On top of that, the tray is also equipped with EMI grounding mechanism to provide a stable environment for the hard drives or SSDs used to perform at its best.
For drive security, the eagle-hook latching design holds drives securely while in use, and makes ejection as easy as pushing a button.

  • Rugged heavy-duty steel construction designed for industrial and commercial applications such as military and medical, servers, data centers, workstations, and portable computer systems
  • Provides amazing solution for expanding PC storage
  • Perfect for applications that must meet a flammability requirement
  • Fits 2x SSDs or HDDs between 5mm and 15mm in height
  • Supports SATA III and SAS single-channel
  • Mounts internally, providing a speedy data transfer for faster and smoother read and write functionality
  • Supports Slim (12.7mm) or Ultra-Slim (9.5mm) Optical Disk Drive (ODD Drive)
  • Spring-loaded ODD bracket for fast installation and removal
  • Dual SATA power connectors separate ODD from HDD/SSD power for stable power delivery
  • 40mm cooling fan with high/low/off setting maintains drive temperatures
  • Ventilation holes located on the trays and throughout the chassis for excellent passive cooling
  • Active Power Technology (APT) - individual LED & cooling fan only powers up if there is a drive installed in the bay

Product Specifications

  • Brand Name
    Icy Dock
  • Color
    Black
  • Compatible Drive Bay Width
    5.25"
  • Cooling Fan
    Yes
  • Depth
    6.1"
  • Drive Interface
    6Gb/s SAS Serial ATA/600
  • Environmental Certification
    REACH RoHS
  • Environmentally Friendly
    Yes
  • Form Factor
    Internal
  • Height
    1.6"
  • Host Interface
    Serial ATA/300
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    MB602SPO-B
  • Material
    Metal
  • Number of 2.5" Bays
    2
  • Number of 5.25" Bays
    1
  • Number of Hard Drives Installed
    No
  • Number of Hard Drives Supported
    2
  • Number of Solid State Drive Installed
    No
  • Number of Solid State Drive Supported
    2
  • Number of Total Expansion Bays
    3
  • Package Contents
    ToughArmor MB602SPO-B Drive Enclosure User Manual Screws EVA Foam Spacer
  • Product Line
    ToughArmor
  • Product Model
    MB602SPO-B
  • Product Name
    ToughArmor MB602SPO-B Drive Enclosure
  • Product Type
    Drive Enclosure
  • Width
    5.7"
  • Wireless LAN
    No
