Elo 1291L Open-frame LCD Touchscreen Monitor - 4:3 - 25 ms
Product #:
ETLZ1039238532
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

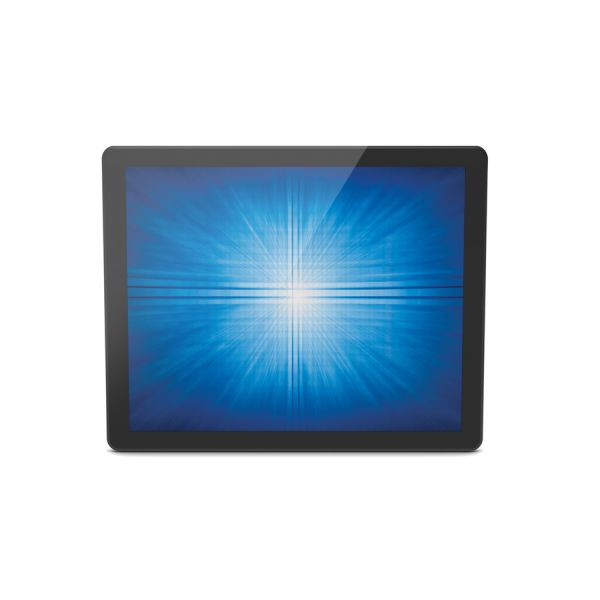

Elo 1291L Open-frame LCD Touchscreen Monitor - 4:3 - 25 ms
12.1" Viewable - Projected Capacitive - Multi-touch Screen - 800 x 600 - SVGA - 16.2 Million Colors - 1,500:1 - 450 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - 3 Year
The Elo 1291L 12-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch with proven Elo expertise and reliability built in. The 1291L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected, as well as backwards compatibility, helping to minimize enclosure costs.
Touch ready.
Available with a choice of industry-leading single-touch or multi-touch technologies, including IntelliTouch single-touch surface acoustic wave (SAW) touchscreen technology, and Elo's latest TouchPro PCAP two glass solution (2GS) 10-touch with Zero-bezel, offering pristine optical clarity and touch durability.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
Display Port and VGA video interfaces
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected, as well as backwards compatibility, helping to minimize enclosure costs.
Touch ready.
Available with a choice of industry-leading single-touch or multi-touch technologies, including IntelliTouch single-touch surface acoustic wave (SAW) touchscreen technology, and Elo's latest TouchPro PCAP two glass solution (2GS) 10-touch with Zero-bezel, offering pristine optical clarity and touch durability.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
Display Port and VGA video interfaces
- Projective Capacitive touchscreen technology offers two essential advantages, not only can you touch the panel with your bare finger, but you can also actuate it with surgical gloves or slender cotton gloves on
- The SVGA touchscreen highlights SVGA display with the resolution of up to 800 x 600 pixels
- The 1,500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
- LED backlight technology provides for industry-leading low power consumption and less hazardous materials
- View your content easily in well-lit areas with 450 Nit brightness
- Features HDMI input to get connected with the top of the line PCs, Blu-ray players, and cutting edge gaming consoles
- VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Product Specifications
-
Aspect Ratio4:3
-
Backlight TechnologyLED
-
Brand NameElo
-
Brightness450 Nit
-
Certifications & StandardsTÜV
-
Color Supported16.2 Million Colors
-
Contrast Ratio1,500:1
-
Depth1.8"
-
DisplayPortYes
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) China Restriction of Hazardous Substances (China RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Environmentally FriendlyYes
-
HDMIYes
-
Height9.5"
-
Limited Warranty3 Year
-
Manufacturer Part NumberE331595
-
Maximum Resolution800 x 600
-
Mount TypeFlush Mount
-
Multi-touch ScreenYes
-
Operating Power Consumption12.20 W
-
Package Contents1291L 12" Open Frame Touchscreen (Rev B) HDMI cable VGA Cable RJ45 OSD Remote Touch USB Cable User Manual CD Quick Install Guide Flush Mount Brackets w/Screws EEI Label Japan Class-B TM info sheet
-
Product ColorBlack
-
Product Model1291L
-
Product Name1291L 12" Open Frame Touchscreen (Rev B)
-
Product TypeOpen-frame LCD Touchscreen Monitor
-
Response Time25 ms
-
Screen ModeSVGA
-
Touchscreen TypeProjected Capacitive
-
USBYes
-
VESA Mount CompatibleYes
-
VGAYes
-
Viewable Screen Size12.1"
-
Width11.9"
