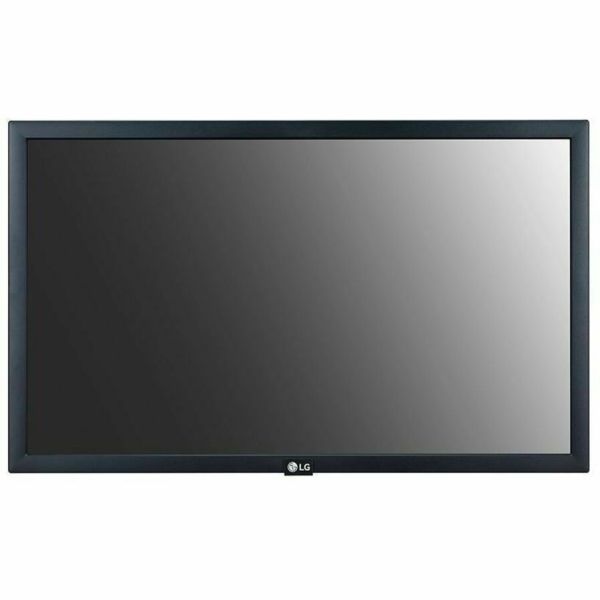

LG 22SM3G-B Digital Signage Display

Product #: SYNX5894493
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

LG 22SM3G-B Digital Signage Display
21.50" - In-plane Switching (IPS) Technology - 16 Hours/ 7 Days Operation - 1920 x 1080 - 16:9 - 14 ms - Edge LED - 250 Nit - HDMI - Wireless LAN - webOS 4.1 - TAA Compliant
22" Signage with More Utility for Commercial Space
22SM3G delivers information and performs guide with more effective ways in various commercial space, which provides more convenient solution thanks to its upgraded webOS platform.
High Performance SoC with webOS
Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
SMART SIGNAGE PLATFORM | Various Sensor Applications
LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via USB plug-in. The overall cost for maintenance is reduced as there's no need to purchase additional software or media players.
SMART SIGNAGE PLATFORM | A Wide Range of Interfaces
Through its diverse interfaces, users can connect the display with various sources for optimal use. Also, the failover function supports users preparing backup sources in case an unexpected error occurs.
SMART SIGNAGE PLATFORM | USB Plug & Play
22SM3G supports USB Plug & Play feature, so users can easily set content playback using a USB.
SMART SIGNAGE PLATFORM | Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi network.
SMART SIGNAGE PLATFORM | Real-time Promotion
With Beacon and BLE (Bluetooth Low Energy), shop managers can provide coupons and information in real-time.
SMART SIGNAGE PLATFORM | Wireless Solution
22SM3G operates as a virtual router which can be a wireless access point for mobile devices.
OPERATIONAL EFFICIENCY | Remote Monitoring and Control
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G displays in different locations in real-time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
OPERATIONAL EFFICIENCY | Real-time Care Service with LG ConnectedCare
The maintenance gets easier and faster with the optional service LG ConnectedCare, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring stable operation of the client's business.
More from the Manufacturer
  • Brightness(Typ.) : 250 cd/m²
  • Bezel : 16.3mm
  • Depth : 53.8mm
  • Interface : HDMI(2) / USB 2.0 / RS232C / RJ45 / IR / Audio
  • USB Plug & Play, Built-in Wi-Fi
  • Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
  • Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
  • Edge LED backlighting technology enabled for a bright and sharp display
Guides & Information
Need more information? Ask a Question

Product Specifications

  • Additional Information
    Surface Treatment (Hard Coating) : No Surface Treatment (Anti Glare) : No Anti-Reflective : No Transparency : No Cisco Certified Compatibility : No Conformal Coating (Power Board) : No Handle : No Direct Sunlight : No External Speaker Out (3.5 mm) : No Power Loop Out : No Power Loop In : No RGB In : No Power In (DC From External PWR Box) : No Anti-Reflective Coating : No Heater : No Anti-Reflective Film : No Heat Dissipation : No Degree of Protection : No OPS Power Built-in : No OPS Compatible : No RS-232C Sync : No Tile Mode Setting : No UL Certification : No Color Depth : 16.7 Million Colors, 6 bit Internal Memory : 8 GB (eMMC) Bezel Width (Off Bezel) : 16.3 mm IR In (3.5 mm) : Yes RS-232C In (3.5 mm 4-pin) : Yes (x1) RS-232C In (D-sub 9-pin) : No Power Type : Built-in Power Local Key Operation: Yes
  • Aspect Ratio
    16:9
  • Audio Line In
    Yes
  • Audio Line Out
    No
  • Backlight Technology
    Edge LED
  • Bluetooth
    No
  • Brand Name
    LG
  • Brightness
    250 Nit
  • Certifications & Standards
    FCC: EMC Class A CE Marking (Regulatory): Yes
  • Color Depth
    6-bit
  • Compatible Software
    SuperSign CMS SuperSign Control+ SuperSign
  • Country of Assembly
    Mexico
  • Depth
    2.1"
  • DisplayPort In
    No
  • Display Resolution
    1920 x 1080
  • Dynamic Contrast Ratio
    400,000:1
  • Embedded CMS
    Local Contents Scheduling
  • Energy Star
    No
  • Features
    Daisy Chain Connectivity Picture by Picture (PbP) Picture in Picture Smart Energy Saving FailOver Control Manager Group Manager Booting Logo Image SNMP Manageable HDMI (CEC) Temperature Sensor Pro:Idiom Wake on LAN (WOL) External Input Rotation ConnectedCare Crestron Connected
  • HDCP Version
    2.2
  • HDMI
    Yes
  • Height
    11.9"
  • Horizontal Viewing Angle
    178°
  • Image Sticking Minimization (ISM) Method
    Yes
  • Infrared Output
    No
  • Input Voltage
    120 V AC 230 V AC
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    22SM3G-B
  • Maximum Operating Temperature
    104°F (40°C)
  • Minimum Operating Temperature
    32°F (0°C)
  • Multi-touch Screen
    No
  • Native Contrast Ratio
    1,100:1
  • Network (RJ-45)
    No
  • Number of HDMI Inputs
    2
  • Number of HDMI Outputs
    1
  • Number of Network (RJ-45) Ports
    1
  • Number of USB 2.0 Ports
    1
  • Off-Mode Power Consumption
    500 mW
  • Operating System
    webOS 4.1
  • Orientation
    Landscape/Portrait
  • Package Contents
    Power Cord QSG HDMI Cable Phone to RS232C Gender External IR IR Sheet Remote Controller (include battery 2ea)
  • Panel Technology
    In-plane Switching (IPS) Technology
  • Power Consumption
    33 W
  • Power Consumption (DPM)
    0.5W
  • Product Model
    22SM3G-B
  • Product Name
    22SM3G-B Digital Signage Display
  • Product Type
    Digital Signage Display
  • Response Time
    14 ms
  • Speakers
    No
  • Standard Refresh Rate
    60 Hz
  • TAA Compliant
    Yes
  • VESA Mount Standard
    100 x 100
  • Vertical Viewing Angle
    178°
  • Viewable Screen Size
    21.50"
  • Width
    20.1"
  • Wireless LAN
    Yes
