LG 55'' 700 nits FHD 0.44mm Even Bezel Video Wall
Product #:
ETLZ1068727976
+6View All
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

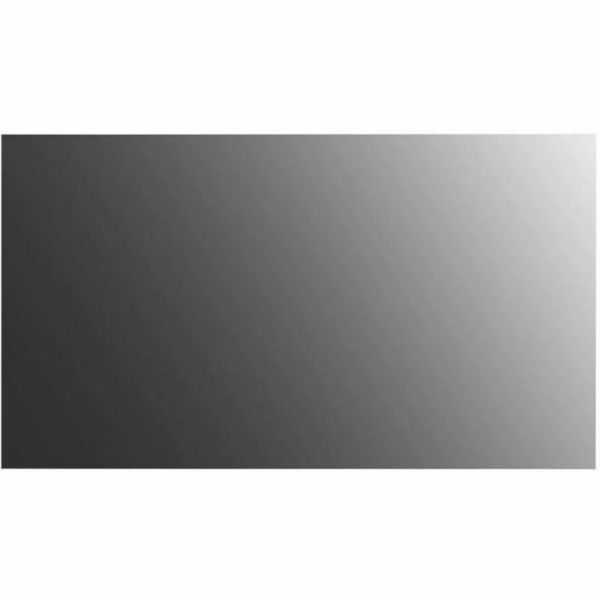

LG 55'' 700 nits FHD 0.44mm Even Bezel Video Wall
55" - In-plane Switching (IPS) Technology - 24 Hours/7 Days Operation - 1920 x 1080 - 16:9 - 8 ms - 700 Nit - webOS 4.1 - Energy Star
Groundbreaking 0.44mm Even Bezel
The unprecedented razor-thin bezel - 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL - which has been verified by Nemko, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions. Seamlessly assembled on a large video wall screen, the VSH7J series will provide an even more immersive experience to viewers.
Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VSH7J series is high enough to display vivid colors throughout the screen with no distortion.
Wide Viewing Angle
It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VSH7J series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.
Uniform Color Expression
Poor uniformity around bezel boundaries can give the corners a darker appearance, which doesn't look good on a large screen. However, the VSH7J series has enhanced uniformity, even within the four corners of the display, to deliver vivid and consistent color throughout the screen.
Image Gap Reduction
The VSH7J series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
Smart Calibration
Smart Calibration is a solution that enables error-free calibration while dramatically reducing time and costs compared to existing sensor calibration methods. It analyzes not only the color property differences within each individual display but also the property differences between the connected displays, eliminating the need for any additional manual color adjustments. Because it can be done in a matter of minutes with just the click of a remote control, this process is so simple. In addition, calibration can be set to automatically occur at regular intervals and brightness can be adjusted based on the surrounding environment, allowing you to always deliver optimum image quality.
Clear View with Non-glare Panel
Viewers can be annoyed by unnecessary light reflection when watching a screen under bright conditions. The VSH7J series has resolved such inconveniences by increasing the level of haze to 28%, which enhanced visibility and text readability.
High Performance and Great Scalability
Thanks to its built-in SoC and webOS smart signage platform, the VSH7J series can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.
Flexible Content Creation
Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming is also available, providing the flexibility to organize and diversify content free from capacity limits.
Intuitive Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.
The unprecedented razor-thin bezel - 0.44 mm EVEN BEZEL and 0.88 mm BEZEL TO BEZEL - which has been verified by Nemko, makes content look like the actual original image by depicting a subject perfectly true to form, without any distortions. Seamlessly assembled on a large video wall screen, the VSH7J series will provide an even more immersive experience to viewers.
Higher Viewing Angle
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VSH7J series is high enough to display vivid colors throughout the screen with no distortion.
Wide Viewing Angle
It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VSH7J series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.
Uniform Color Expression
Poor uniformity around bezel boundaries can give the corners a darker appearance, which doesn't look good on a large screen. However, the VSH7J series has enhanced uniformity, even within the four corners of the display, to deliver vivid and consistent color throughout the screen.
Image Gap Reduction
The VSH7J series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
Smart Calibration
Smart Calibration is a solution that enables error-free calibration while dramatically reducing time and costs compared to existing sensor calibration methods. It analyzes not only the color property differences within each individual display but also the property differences between the connected displays, eliminating the need for any additional manual color adjustments. Because it can be done in a matter of minutes with just the click of a remote control, this process is so simple. In addition, calibration can be set to automatically occur at regular intervals and brightness can be adjusted based on the surrounding environment, allowing you to always deliver optimum image quality.
Clear View with Non-glare Panel
Viewers can be annoyed by unnecessary light reflection when watching a screen under bright conditions. The VSH7J series has resolved such inconveniences by increasing the level of haze to 28%, which enhanced visibility and text readability.
High Performance and Great Scalability
Thanks to its built-in SoC and webOS smart signage platform, the VSH7J series can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.
Flexible Content Creation
Four different videos can be played simultaneously via web apps, and various animation effects, such as scaling or rotating, are added to content using CSS (Cascading Style Sheets) transition effects. Real-time streaming is also available, providing the flexibility to organize and diversify content free from capacity limits.
Intuitive Menu Structure
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays.
- Brightness(Typ.) : 700 nits
- Bezel : 0.44 mm (Even)
- Depth : 86.5 mm
- Interface : HDMI(2)/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR
- Smart Calibration
- Digital Signage Display delivers a highly realistic sound and immersive visual experience thanks to the high pixel density that shows even the most subtle details
- Features full 1920 x 1080 HD resolution enabling sharp and clear images
Product Specifications
-
Additional InformationSurface Treatment (Hard Coating) : No Surface Treatment (Anti Glare) : No Anti-Reflective : No Picture-by-Picture (PBP) : No Transparency : No Cisco Certified Compatibility : No Direct Sunlight : No External Speaker Out (3.5 mm) : No Power Loop Out : No HDMI Out : No Power Loop In : No RGB In : No Power In (DC From External PWR Box) : No Anti-Reflective Coating : No Heater : No Anti-Reflective Film : No Heat Dissipation : No Degree of Protection : No OPS Power Built-in : No OPS Compatible : No UL Certification : No Internal Memory : 8 GB (eMMC) BTU Heat Generation (Typ.) : 717 BTU DisplayPort In : Yes (x1) HDCP 2.2 Displayport Out : Yes (x1), input : HDMI / DVI / DP IR In (3.5 mm) : Yes RS-232C In (D-sub 9-pin) : Yes (x1) RS-232C Out (D-sub 9-pin) : Yes (x1) Power Type : Built-in Power Local Key Operation: Yes
-
Aspect Ratio16:9
-
Audio Line InYes
-
Audio Line OutYes
-
BluetoothNo
-
Brand NameLG
-
Brightness700 Nit
-
Certifications & StandardsFCC: EMC Class B CE Marking (Regulatory): Yes
-
Color Depth10-bit
-
Color Gamut72% NTSC
-
Compatible SoftwareSuperSign CMS SuperSign Control+ SuperSign
-
Content SynchronizationRS-232C
-
Country of AssemblyMexico
-
Depth3.4"
-
DisplayPort InYes
-
Display Resolution1920 x 1080
-
Dynamic Contrast Ratio500,000:1
-
Embedded CMSLocal Contents Scheduling
-
Energy Efficiency CertificationENERGY STAR 8.0
-
Energy Efficiency ComplianceEnergy-related Products Directive (ErP)
-
Environmental CertificationENERGY STAR 8.0 ErP
-
Environmentally FriendlyYes
-
FeaturesTemperature Sensor FailOver Tile Mode Setting (15 × 15) Auto Set ID Wake on LAN (WOL) Smart Energy Saving Conformal Coating (Power Board) Carrying Handle Control Manager Group Manager SNMP Manageable HDMI (CEC) Gyroscopic Sensor Pro:Idiom External Input Rotation Scan Inversion ConnectedCare Daisy Chain Connectivity Crestron Connected Brightness Compensation
-
HDCP Version1.4
-
Height26.8"
-
Horizontal Viewing Angle178°
-
Image Sticking Minimization (ISM) MethodYes
-
Infrared OutputNo
-
Input Voltage120 V AC 230 V AC
-
Limited Warranty3 Year
-
Manufacturer Part Number55VSH7J-H
-
Maximum Operating Temperature104°F (40°C)
-
Minimum Operating Temperature32°F (0°C)
-
Multi-touch ScreenNo
-
Native Contrast Ratio1,000:1
-
Network (RJ-45)No
-
Number of Audio Line Out1
-
Number of DisplayPort Outputs1
-
Number of HDMI Inputs2
-
Number of Network (RJ-45) Ports1
-
Number of USB 2.0 Ports1
-
Off-Mode Power Consumption500 mW
-
Operating SystemwebOS 4.1
-
OrientationLandscape/Portrait
-
Package ContentsRemote Controller (include battery 2ea) Power Cord RS232C cable Lan cable DP cable IR Receiver Guide Bracket Screws Manual
-
Panel TechnologyIn-plane Switching (IPS) Technology
-
Power Consumption250 W
-
Power Consumption (DPM)0.5W
-
Product Model55VSH7J-H
-
Product Name55'' 700 nits FHD 0.44mm Even Bezel Video Wall
-
Product TypeDigital Signage Display
-
Response Time8 ms
-
SpeakersNo
-
Standard Refresh Rate60 Hz
-
TAA CompliantNo
-
VESA Mount Standard600 x 400
-
Vertical Viewing Angle178°
-
Viewable Screen Size55"
-
Width47.7"
-
Wireless LANNo
