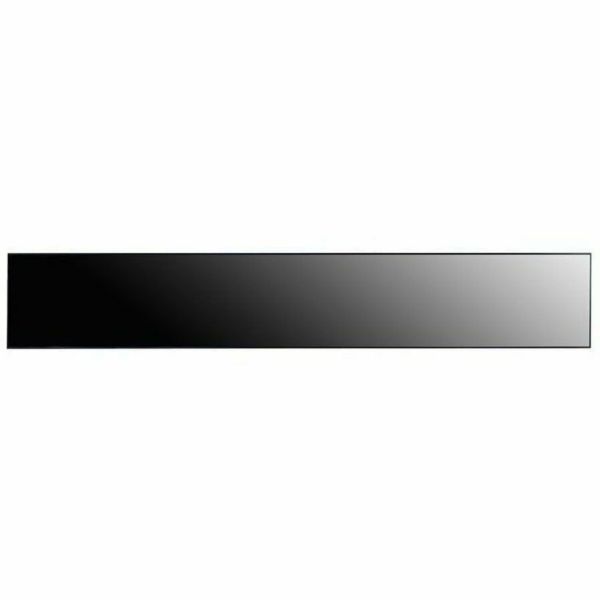

LG 86BH5F-M Digital Signage Display
Product #:
SYNX6442204
+4View All
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
LG 86BH5F-M Digital Signage Display
86" - In-plane Switching (IPS) Technology - 24 Hours/7 Days Operation - 3840 x 600 - 58:9 - 8 ms - 500 Nit - Wireless LAN - webOS 4.0 - TAA Compliant
Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen
The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.
58:9 Extended Wide Format
It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content than the conventional display of 16:9 ratio.
Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.
Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
User-Friendly UX
The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD can also be adjusted accordingly.
LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time Monitoring with ConnectedCare
Easier and faster maintenance are available with our optional cloud service solution ConnectedCare. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
More from the Manufacturer
The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.
58:9 Extended Wide Format
It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content than the conventional display of 16:9 ratio.
Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.
Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.
Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.
IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.
User-Friendly UX
The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD can also be adjusted accordingly.
LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.
Real-Time Monitoring with ConnectedCare
Easier and faster maintenance are available with our optional cloud service solution ConnectedCare. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
More from the Manufacturer
- IPS Display with wide viewing angle so customers can see from virtually anywhere
- Life time of 50,000 hrs. & can operate 24/7
- Built-in Wi-Fi
- Portrait or landscape, tile mode, 4PBP to create the best customer experience
- IP5X Durability Rating
- Compatible with LG SuperSign CMS and other LG software
- Digital Signage Display - Ideal for rack, passageway, booth or display counter
- 3840 x 600 display resolution for reliable results with precision and clarity
Product Specifications
-
Additional InformationSurface Treatment (Hard Coating) : No Surface Treatment (Anti Glare) : No Anti-Reflective : No Transparency : No Cisco Certified Compatibility : No Direct Sunlight : No External Speaker Out (3.5 mm) : No Power Loop Out : No HDMI Out : No Power Loop In : No RGB In : No Power In (DC From External PWR Box) : No Anti-Reflective Coating : No Heater : No Anti-Reflective Film : No Heat Dissipation : No Degree of Protection : No OPS Power Built-in : No OPS Compatible : No SI Server Setting : No Idiom : No UL Certification : No Internal Memory : 8 GB (eMMC) BTU Heat Generation (Typ.) : 751 BTU DisplayPort In : Yes (x1) HDCP 2.2/1.3 IR In (3.5 mm) : Yes RS-232C In (3.5 mm 4-pin) : Yes (x1) RS-232C In (D-sub 9-pin) : No RS-232C Out (3.5 mm) : Yes (x1) Power Type : Built-in Power Bezel Width (Off Bezel) : T: 5.9 mm, R/L: 4.4 mm, B: 5.9 mm Local Key Operation: Yes
-
Aspect Ratio58:9
-
Audio Line InYes
-
Audio Line OutYes
-
BluetoothNo
-
Brand NameLG
-
Brightness500 Nit
-
Certifications & StandardsFCC: EMC Class A CE Marking (Regulatory): Yes
-
Color Depth10-bit
-
Compatible SoftwareSuperSign Control+ SuperSign Mobile CMS
-
Content SynchronizationRS-232C
-
Country of AssemblySouth Korea
-
Depth3.2"
-
DisplayPort InYes
-
Display Resolution3840 x 600
-
Dynamic Contrast Ratio500,000:1
-
Embedded CMSLocal Contents Scheduling
-
Energy StarNo
-
FeaturesTemperature Sensor FailOver Tile Mode Setting (15 × 15) Auto Set ID Wake on LAN (WOL) Picture by Picture (PbP) Smart Energy Saving 10% Haze Conformal Coating (Power Board) Carrying Handle Control Manager Group Manager Booting Logo Image SNMP Manageable HDMI (CEC) Brightness Sensor Current Sensor External Input Rotation ConnectedCare Daisy Chain Connectivity Crestron Connected
-
HDCP Version1.4/2.2
-
Height13.7"
-
Horizontal Viewing Angle178°
-
Image Sticking Minimization (ISM) MethodYes
-
Infrared OutputNo
-
Input Voltage120 V AC 230 V AC
-
Limited Warranty3 Year
-
Manufacturer Part Number86BH5F-M
-
Maximum Operating Temperature104°F (40°C)
-
Minimum Operating Temperature32°F (0°C)
-
Multi-touch ScreenNo
-
Native Contrast Ratio1,100:1
-
Number of Audio Line Out1
-
Number of DisplayPort Outputs1
-
Number of HDMI Inputs3
-
Number of Network (RJ-45) Ports1
-
Number of USB 2.0 Ports2
-
Off-Mode Power Consumption500 mW
-
Operating SystemwebOS 4.0
-
OrientationLandscape/Portrait
-
Package ContentsPower Cord RS-232C Cable IR/Light sensor receiver Manual Remote Controller (including battery 2ea) DP cable
-
Power Consumption240 W
-
Power Consumption (DPM)0.5W
-
Product Model86BH5F-M
-
Product Name86BH5F-M Digital Signage Display
-
Product TypeDigital Signage Display
-
Response Time8 ms
-
SpeakersNo
-
Standard Refresh Rate60 Hz
-
TAA CompliantYes
-
VESA Mount Standard600 x 200
-
Vertical Viewing Angle178°
-
Viewable Screen Size86"
-
Width85"
-
Wireless LANYes
