Asus Barebone System - 1U Rack-mountable - Socket LGA-4677 - 2 x Processor Support
Product #:
ETLZ1077164104
+5View All
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

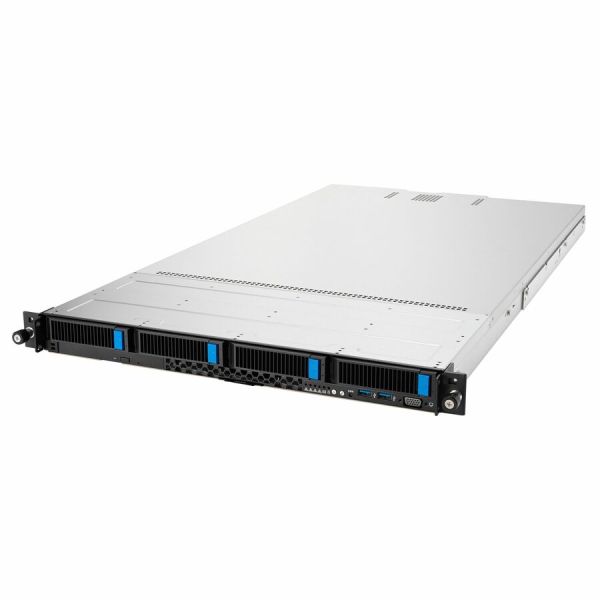

Asus Barebone System - 1U Rack-mountable - Socket LGA-4677 - 2 x Processor Support
Intel C741 Chip - 12 TB DDR5 SDRAM DDR5-4800/PC5-38400 Maximum RAM Support - 32.0 Total Memory Slots - Serial ATA, NVMe Controller - ASPEED AST2600 64 MB Graphic(s) - 4 3.5" Bay(s) - Network (RJ-45) - 2 M.2 Interface(s) - Processor Support (Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze) - Ethernet - Windows Server 2022 x64, Red Hat Enterprise Linux, SuSE Linux Enterprise Server, CentOS, Ubuntu Linux, W
RS700-E11-RS4U | 1U dual-socket server powered by 4th Gen Intel Xeon Scalable processors that supports 32 DIMMs, 4 PCIe 5.0 slots, 4 NVMe, 1 dual-slot GPU, OCP 3.0, ASUS ASMB11-iKVM
Key Features
Powerful performance: Powered by 4th Gen Intel Xeon Scalable processors designed for potent data infrastructure from the cloud, to the network, to the intelligent edge
Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, and 4 PCIe 5.0 slots for higher bandwidth and system upgrade
Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
Ready for AI and HPC workloads: Supports 1 dual-slot GPU, including Intel Data Center GPU Flex series and NVIDIA A100
PCIe 5.0Ready | Faster storage, graphics and networking capabilities
PCI Express (PCIe) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.
4th Gen Intel Xeon Scalable Processors
The 4th Gen Intel Xeon Scalable Processors are designed to accelerate performance across the fastest-growing workloads that businesses depend on today Built-in accelerators improve performance across AI, analytics, networking, storage, and HPC. By making the best use of CPU core resources, built-in accelerators can result in more efficient utilization and power efficiency advantages, helping businesses achieve their sustainability goals.
World Records Leadership
ASUS holds the most amount of records in dual-socket (2P) and single-socket (1P) on SPEC CPU 2017 benchmark and dominate the computing performance. These top performance results provide a useful insight into compute-intensive workloads on different computer systems, enabling our customers to reduce complexity, tackle challenging workloads and accelerate system validations.
Computing Performance
ASUS servers feature Performance Boost technology to achieve the best server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximizing processor frequency and boost power, ideal for timesensitive applications such as financial services or data center operations.
Key Features
Powerful performance: Powered by 4th Gen Intel Xeon Scalable processors designed for potent data infrastructure from the cloud, to the network, to the intelligent edge
Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, and 4 PCIe 5.0 slots for higher bandwidth and system upgrade
Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
Ready for AI and HPC workloads: Supports 1 dual-slot GPU, including Intel Data Center GPU Flex series and NVIDIA A100
PCIe 5.0Ready | Faster storage, graphics and networking capabilities
PCI Express (PCIe) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.
4th Gen Intel Xeon Scalable Processors
The 4th Gen Intel Xeon Scalable Processors are designed to accelerate performance across the fastest-growing workloads that businesses depend on today Built-in accelerators improve performance across AI, analytics, networking, storage, and HPC. By making the best use of CPU core resources, built-in accelerators can result in more efficient utilization and power efficiency advantages, helping businesses achieve their sustainability goals.
World Records Leadership
ASUS holds the most amount of records in dual-socket (2P) and single-socket (1P) on SPEC CPU 2017 benchmark and dominate the computing performance. These top performance results provide a useful insight into compute-intensive workloads on different computer systems, enabling our customers to reduce complexity, tackle challenging workloads and accelerate system validations.
Computing Performance
ASUS servers feature Performance Boost technology to achieve the best server performance and agility by tuning servers to match the requirements of workloads, letting you gain greater control of your server environment. This technology improves workload throughput by maximizing processor frequency and boost power, ideal for timesensitive applications such as financial services or data center operations.
- Compatible Xeon Platinum processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- Get data transfer speeds up to 10 Mbps with Ethernet connectivity
- With 4 USB ports, connect/disconnect devices while not having to shut down the system
- With Serial ATA interface get superb reliability and high-speed data transfer
Product Specifications
-
64-bit ProcessingYes
-
Brand NameAsus
-
Chipset ManufacturerIntel
-
Chipset ModelC741
-
Controller TypeSerial ATA NVMe
-
Depth33.2"
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Ethernet TechnologyEthernet
-
Form FactorRack-mountable
-
Graphics Controller ManufacturerASPEED
-
Graphics Controller ModelAST2600
-
Graphics Memory Capacity64 MB
-
Height1.7"
-
Input Voltage120 V AC 230 V AC
-
Manufacturer Part NumberRS700E11RS4U16W10G
-
Maximum Memory Supported12 TB
-
Memory StandardDDR5-4800/PC5-38400
-
Memory TechnologyDDR5 SDRAM
-
Network (RJ-45)Yes
-
Number of 3.5" Bays4
-
Number of M.2 Interfaces2
-
Number of PCI Express x8 Slots1
-
Number of PCI Express x16 Slots3
-
Number of Power Supplies Installed2
-
Number of Processors Supported2
-
Number of Total Expansion Bays4
-
Number of Total Expansion Slots4
-
Number of Total Memory Slots32.0
-
Number of VGA Ports2
-
Operating System SupportedWindows Server 2022 x64 Red Hat Enterprise Linux SuSE Linux Enterprise Server CentOS Ubuntu Linux Windows Server 2019 x64
-
Processor SocketSocket LGA-4677
-
Processor SupportedXeon Platinum Xeon Gold Xeon Silver Xeon Bronze
-
Product NameRS700-E11-RS4U Barebone System
-
Product SeriesRS700-E11-RS4U
-
Product TypeBarebone System
-
Rack Height1U
-
Supported Storage Drive InterfacesSerial ATA PCI Express
-
Supported Storage Drive TypesHDD SSD
-
Total Number of USB Ports4
-
Width17.3"
