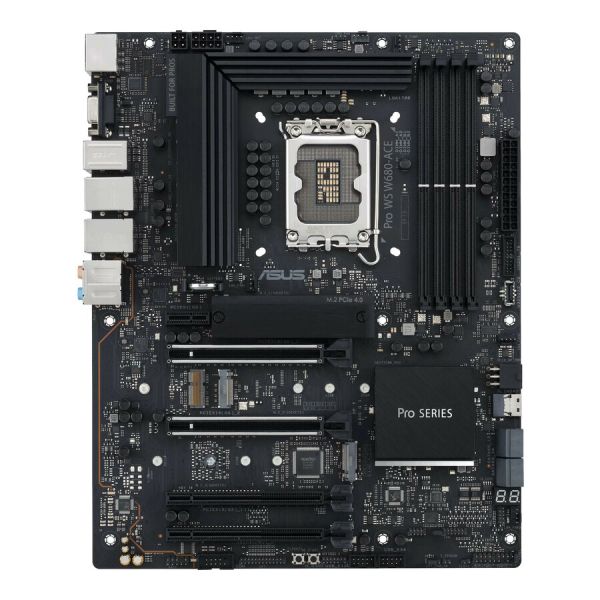

Asus Pro WS W680-ACE Workstation Motherboard - Intel W680 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX
Product #:
ETLZ1076153498
+2View All
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Asus Pro WS W680-ACE Workstation Motherboard - Intel W680 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX
Celeron, Core i5, Core i7, Core i9, Pentium Gold, Core Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - HDMI - DisplayPort - 8 x SATA Interfaces
Pro WORKSTATION MOTHERBOARD
ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software, so they're also an efficient and cost-effective option for IT administrators.
Ultra Powerful Back IO
The motherboard comes with four USB 3.2 Gen 1 type connector, one reversible USB Type-C connector and front-panel connector to support additional USB expansions.
ECC Memory Support
Designed for creative professionals who require outstanding performance, reliability and enhanced security, ASUS Pro WS W680-ACE motherboard is powered by the latest 13th and 12th Gen Intel processors for always-on usage scenarios and supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability.
Dual 2.5G Ethernet
Boosted connectivity with dual onboard Ethernet ports. Intel 2.5G Ethernet upgrades your traditional LAN connection with an up to 2.5X bandwidth improvement. Using your existing Ethernet cable, you can experience faster file transfers and immediately stream high-resolution videos.
ASUS Control Center Express
The best business performance requires smart IT management. ASUS Control Center Express is an intuitive and secure software designed to simplify IT operations and improve workload productivity by providing comprehensive control of all the systems in your organization. Plus, ASUS Control Center Express is compatible with over 100 ASUS motherboards to give you more upgrade flexibility and less compatibility issues.
Multi-GPU Support
Two PCIe 5.0 x16 slots provide flexible system configurability and expandability - including support for NVIDIA Quadro - for enhanced performance in modelling, simulation, and rendering applications.
Triple M.2 Slots
Triple M.2 slots support PCIe 4.0, offering up to 64 Gbps data-transfer speeds and flexible M.2 interfaces. The RAID 0/1/5/10 configuration are available for the data protection and increases fault tolerance to the entire system, higher storage capacity and better SSD performance.
Thermal Solution | VRM heatsink
A large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.
PCH heatsink
An expanded surface area for the chipset cooler maximizes performance and heat dissipation.
M.2 heatsink
M.2 slot has a dedicated heatsink keep the M.2 SSD at optimum operating temperature to ensure consistent performance and reliability.
ASUS Pro Workstation motherboards are designed for professionals in AI training, deep learning, animation, 3D rendering or media production. Featuring expandable graphics, extensive storage, impressive connectivity and exceptional overall performance and reliability, Pro Workstation motherboards are the ideal solution for creative professionals. Each motherboard includes centralized management software, so they're also an efficient and cost-effective option for IT administrators.
Ultra Powerful Back IO
The motherboard comes with four USB 3.2 Gen 1 type connector, one reversible USB Type-C connector and front-panel connector to support additional USB expansions.
ECC Memory Support
Designed for creative professionals who require outstanding performance, reliability and enhanced security, ASUS Pro WS W680-ACE motherboard is powered by the latest 13th and 12th Gen Intel processors for always-on usage scenarios and supports ECC memory to automatically detect and correct data corruption, reducing the chance of system crashes to ensure workstation stability.
Dual 2.5G Ethernet
Boosted connectivity with dual onboard Ethernet ports. Intel 2.5G Ethernet upgrades your traditional LAN connection with an up to 2.5X bandwidth improvement. Using your existing Ethernet cable, you can experience faster file transfers and immediately stream high-resolution videos.
ASUS Control Center Express
The best business performance requires smart IT management. ASUS Control Center Express is an intuitive and secure software designed to simplify IT operations and improve workload productivity by providing comprehensive control of all the systems in your organization. Plus, ASUS Control Center Express is compatible with over 100 ASUS motherboards to give you more upgrade flexibility and less compatibility issues.
Multi-GPU Support
Two PCIe 5.0 x16 slots provide flexible system configurability and expandability - including support for NVIDIA Quadro - for enhanced performance in modelling, simulation, and rendering applications.
Triple M.2 Slots
Triple M.2 slots support PCIe 4.0, offering up to 64 Gbps data-transfer speeds and flexible M.2 interfaces. The RAID 0/1/5/10 configuration are available for the data protection and increases fault tolerance to the entire system, higher storage capacity and better SSD performance.
Thermal Solution | VRM heatsink
A large, high-mass heatsink with extensive surface that covers the VRM and choke areas improves heat dissipation.
PCH heatsink
An expanded surface area for the chipset cooler maximizes performance and heat dissipation.
M.2 heatsink
M.2 slot has a dedicated heatsink keep the M.2 SSD at optimum operating temperature to ensure consistent performance and reliability.
- Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Enhanced power solution: DrMOS, ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Next-gen connectivity: Dual PCIe 5.0 SafeSlots, dual PCIe 3.0 slots, 3 x M.2 PCIe 4.0, SlimSAS, dual Intel 2.5Gb Ethernet, front panel USB 3.2 Gen2x2 Type-C, Thunderbolt 4 header support, TPM header, LPT header
- Comprehensive cooling: Large VRM heatsink, M.2 heatsinks, hybrid fan headers and Fan Xpert 4
- Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
- Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability
- Experience responsive performance, power and adaptability with the compatible Intel Celeron processor
- With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
- Supported 0 RAID levels provide data reliability and fault tolerance
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
- Thunderbolt host interface provides a fast and reliable transfer of information from your computer to the connected devices
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
Product Specifications
-
2.5Gigabit EthernetYes
-
Audio Channels7.1
-
Brand NameAsus
-
Chipset ManufacturerIntel
-
Chipset ModelW680
-
Controller TypeSerial ATA/600
-
Depth9.6"
-
DisplayPortYes
-
Form FactorATX
-
Gigabit EthernetYes
-
HDMIYes
-
HDMI Version2.1
-
Intel Optane Memory ReadyYes
-
Manufacturer Part NumberPRO WS W680-ACE
-
Maximum Memory Supported128 GB
-
Memory Form FactorDIMM UDIMM
-
Memory TechnologyDDR5 SDRAM
-
Number of Memory Slots4
-
Number of Network (RJ-45) Ports2
-
Number of Onboard USB 2.0 Ports4
-
Number of PCI Express x1 Slots1
-
Number of PCI Express x16 Slots4
-
Number of SATA Interfaces8
-
Number of Thunderbolt 4 Ports1
-
Number of USB 3.2 Gen 1 Type-A Ports4
-
Number of USB 3.2 Gen 2 Type-A Ports1
-
Number of USB 3.2 Gen 2 Type-C Ports1
-
Onboard VideoCPU Dependent Video
-
PCI Express StandardPCI Express 3.0 PCI Express 4.0 PCI Express 5.0
-
Package ContentsPRO WS W680-ACE Workstation Motherboard 2 x SATA 6Gb/s cables 1 x Q-connector 1 x M.2 Rubber Packages 2 x Screw package for M.2 SSD 1 x Screw package for M.2 Key E 1 x I/O Shield 1 x User guide 1 x ACC Express Activation Key Card
-
Processor Generation Supported12th Gen 13th Gen
-
Processor SocketSocket LGA-1700
-
Processor SupportedCeleron Core Core i5 Core i7 Core i9 Pentium Gold
-
Product LinePro
-
Product ModelWS W680-ACE
-
Product NamePro WS W680-ACE Workstation Motherboard
-
Product TypeWorkstation Motherboard
-
RAID Levels0 1 10 5
-
RAID SupportedYes
-
ThunderboltYes
-
Total Number of Expansion Slots5.0
-
Total Number of Onboard USB Ports7
-
Total Number of PCI Express Slots5
-
Total Number of USB Ports8
-
Total Processor Supported1
-
VGAYes
-
Width12"
