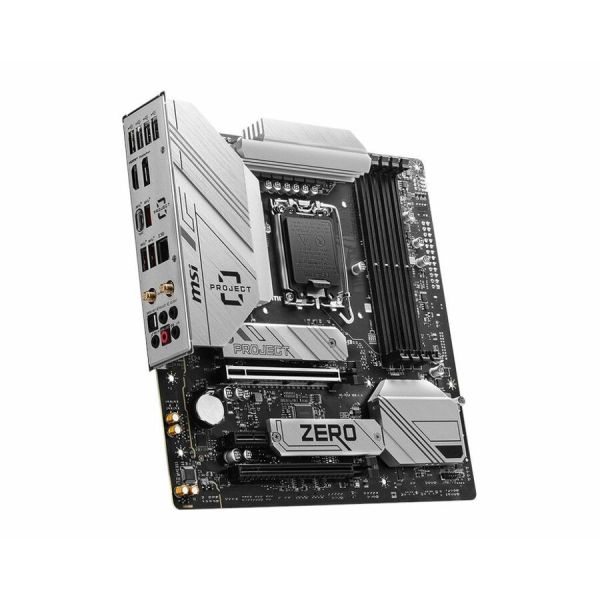

MSI B760M PROJECT ZERO Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX

Product #: ETLZ1079603900
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

MSI B760M PROJECT ZERO Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Micro ATX
Core, Pentium Gold, Celeron Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
The B760M PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management, resulting in a neater and more aesthetically pleasing appearance for the system. It's compatible with Intel 14th/13th/12th Processors, supports DDR5, and comes equipped with a 2.5G LAN and Wi-Fi 6E solution. This makes it an excellent choice among mATX motherboards.
ABSOLUTE SIMPLICITY
B760M PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.
DIY FRIENDLY
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.
EASY OVERCLOCKING WITH XMP PROFILE
The XMP (Extreme Memory Profiles) in MSI BIOS are tested and certified by MSI OC LAB. It is easy to enable with auto power settings to get the best memory speed and stability.
Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!
XMP
Choose from a preset XMP profile and automatically overclock compatible DDR memory.
VMD (VOLUME MANAGEMENT DEVICE)
Enable direct control and management of NVMe SSDs from the PCIe bus without additional hardware adaptors.
M-FLASH
Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.
HARDWARE MONITOR
Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.
MEMORY TRY IT
Get extreme speed out of your system memory and get more performance.
SEARCH & FAVORITES
A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
EXCLUSIVE UI OF AIDA64 EXTREME
MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
We have many partners, working together to cultivate the Back-connect device ecosystem, and we warmly welcome others to join us in strengthening the entire system!
  • Support Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 7800+(OC) MHz
  • Enhanced Power Design: 12+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • Audio Boost: Reward your ears with studio grade sound
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Compatible Core processor lets you perform all your computational tasks at a swift pace
  • The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
  • RAID supported levels provide data reliability and fault tolerance
  • IEEE 802.11 a/b/g/n/ac/ax wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
  • HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
  • DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
  • Micro ATX form factor for your accessibility convenience and simplicity of usage for Desktop Motherboard
  • 4 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
Need more information? Ask a Question

Product Specifications

  • Audio Channels
    7.1
  • Bluetooth
    Yes
  • Bluetooth Standard
    Bluetooth 5.3
  • Brand Name
    MSI
  • Chipset Manufacturer
    Intel
  • Chipset Model
    B760
  • Controller Type
    Serial ATA/600
  • Depth
    9.6"
  • DisplayPort
    Yes
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS)
  • Environmentally Friendly
    Yes
  • Form Factor
    Micro ATX
  • Gigabit Ethernet
    Yes
  • HDMI
    Yes
  • HDMI Version
    2.1
  • Manufacturer Part Number
    B760MPZERO
  • Maximum Memory Supported
    192 GB
  • Memory Form Factor
    DIMM UDIMM
  • Memory Speed Supported
    7800 MHz 7600 MHz 7400 MHz 7200 MHz 7000 MHz 6800 MHz 6600 MHz 6400 MHz 6200 MHz 6000 MHz 5800 MHz 5600 MHz 5400 MHz 5200 MHz 5000 MHz 4800 MHz
  • Memory Technology
    DDR5 SDRAM
  • Number of M.2 Interfaces
    2
  • Number of Memory Slots
    4
  • Number of Network (RJ-45) Ports
    1
  • Number of Onboard USB 2.0 Ports
    4
  • Number of PCI Express x1 Slots
    1
  • Number of PCI Express x16 Slots
    2
  • Number of SATA Interfaces
    4
  • Number of USB 2.0 Ports
    4
  • Onboard Video
    CPU Dependent Video
  • PCI Express Standard
    PCI Express 5.0 PCI Express 4.0 PCI Express 3.0
  • Processor Socket
    Socket LGA-1700
  • Processor Supported
    Core Pentium Gold Celeron
  • Product Model
    B760M PROJECT ZERO
  • Product Name
    B760M PROJECT ZERO Desktop Motherboard
  • Product Type
    Desktop Motherboard
  • RAID Levels
    0 1 5 10
  • RAID Supported
    Yes
  • S/PDIF
    Yes
  • Total Number of Onboard USB Ports
    7
  • Total Number of PCI Express Slots
    3
  • Total Number of USB Ports
    8
  • Total Processor Supported
    1
  • Width
    9.6"
  • Wireless LAN
    Yes
  • Wireless LAN Standard
    IEEE 802.11 a/b/g/n/ac/ax
