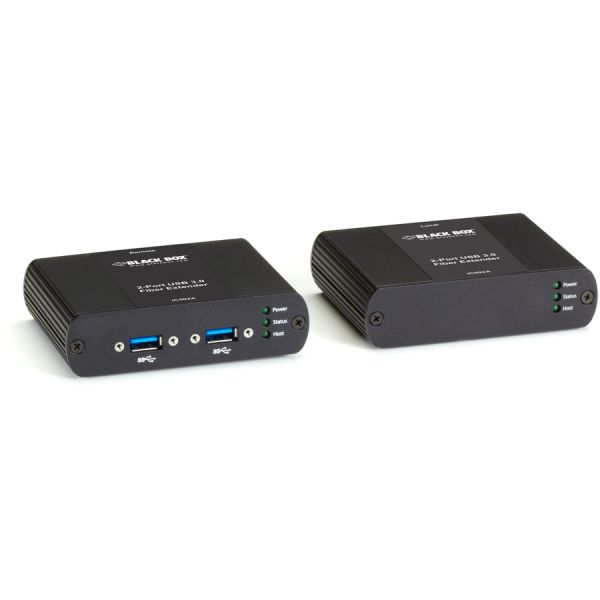

Black Box USB 3.0 Extender - Multimode, 2-Port

2 x USB - 328.08 ft Extended Range
Product Number: ETLZ1035903265
  • Ideal for linking to USB 3.0 security and industrial cameras, external DVD drives, and other high-bandwidth USB devices.
  • Extends USB 3.0 signals up 100 meters (330 ft.) over OM3 multimode fiber cable.
  • Transfers at 5-Gbps speeds-ten times faster than USB 2.0.
  • Receiver supplies 900 mA power to the remote USB devices.
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Black Box USB 3.0 Extender - Multimode, 2-Port - Extend a SuperSpeed USB 3.0 signal beyond the 16 ft (5 m) limitation up to 328 ft (100 m) over Multimode fiber to two peripherals. Compatible with the USB 3.0 or "SuperSpeed USB" standard, the extender boasts speeds up to 5 Gbps, about ten times that of USB 2.0. This way, you can extend your USB bus connections to newer USB 3.0 devices that use higher bandwidths and require bidirectional asynchronous, full-duplex data transfer. Plus, it supplies more power than USB 2.0 to the remote devices. With the higher data-transfer rate and power, the extender is ideal for connecting industrial USB 3.0 machine vision cameras, particularly those with high power sensors. It's also great for post-production video editing and broadcast applications with USB 3.0 peripherals and external USB CD/DVD drives in different rooms

  • Ideal for linking to USB 3.0 security and industrial cameras, external DVD drives, and other high-bandwidth USB devices.
  • Extends USB 3.0 signals up 100 meters (330 ft.) over OM3 multimode fiber cable.
  • Transfers at 5-Gbps speeds-ten times faster than USB 2.0.
  • Receiver supplies 900 mA power to the remote USB devices.
  • Plug and play. No drivers to install on your computer.
  • Features locking USB power ports for secure plug-ins.
  • Works with Windows, Mac OS X, and Linux systems.
  • Does not support USB 2.0 or USB 1.1 interfaces.
 Need more information? Ask a Question

Product Specifications

  • Additional Information
    Power Local unit: From the USB bus; Remote unit: From 100-240 VAC, 50-60 Hz adapter (included); Output: 24 VDC (locking) Local unit: USB: (1) USB 3.0 Type B F (locking); Interconnect: (2) LC fiber Remote unit: USB: (2) USB 3.0 Type A F (locking); Interconnect: (2) LC fiber On each unit: (3) LEDs (Power, Link, Host)
  • Brand Name
    Black Box
  • Certifications & Standards
    CE
  • Country of Origin
    China
  • Depth
    3"
  • Environmentally Friendly
    Yes
  • Height
    1"
  • Input Voltage
    240 V AC
  • Limited Warranty
    2 Year
  • Manufacturer Part Number
    IC502A-R2
  • Maximum Data Transfer Rate
    640 MB/s
  • Number of USB Ports
    2
  • Package Contents
    Local extender unit Remote extender unit USB 3.0 cable Power supply with country-specific cord Quick start guide
  • Product Name
    USB 3.0 Extender - Multimode, 2-Port
  • Product Type
    USB Extender
  • USB
    Yes
  • Width
    3.9"
