Black Box RS232 Passive Splitter Rackmount Card - RJ45, 4-Port
Product #:
ETLZ1031944698
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

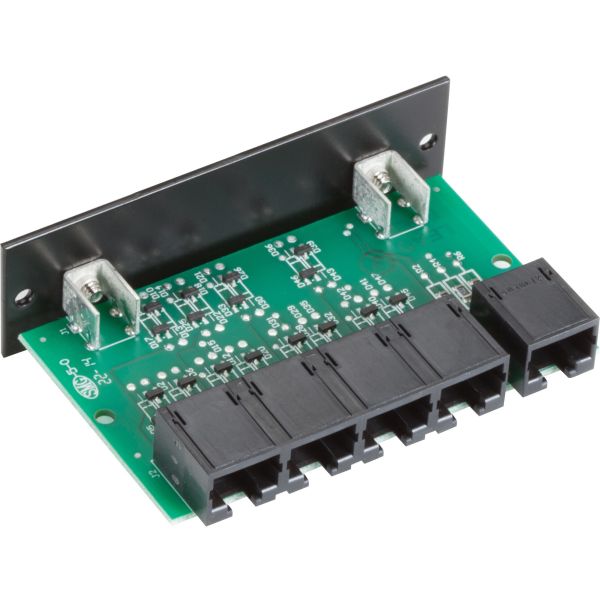

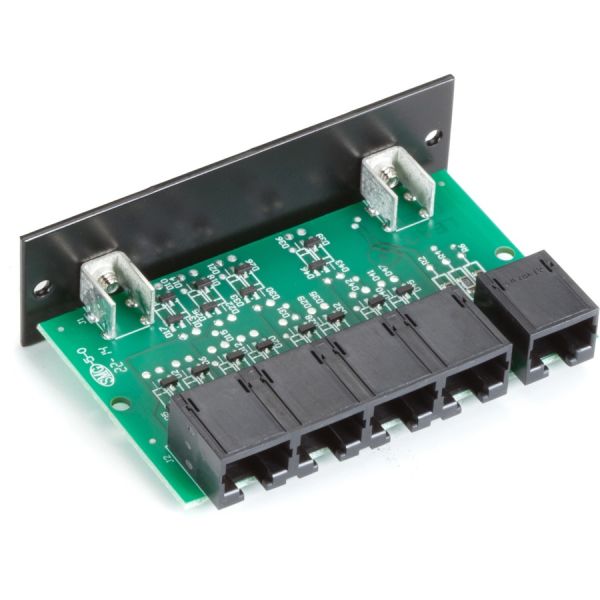

Black Box RS232 Passive Splitter Rackmount Card - RJ45, 4-Port
Network (RJ-45) - TAA Compliant
Used with the RS-232 Modem Splitter Rackmount Chassis - 2U (TL400A), this splitter makes it easy and affordable for four terminals to share a single modem.
With this system, you can avoid the cost of having to purchase and install multiple modems and multiple modem lines.
Plus, it's easy to set up and use. There are no user-configurable switches, jumpers, or settings on the modem splitter. Simply connect the modem and terminal (DTE) devices to it, then power up your modem and terminals as normal.
The splitter's master port connects to your modem using an RJ-45 straight-through cable and the appropriate RJ or DB adapter. Its other ports (Port 1 through Port 4) connect to your DTE terminal devices.
NOTE: Only one terminal device can send data to the modem at a time.
With this system, you can avoid the cost of having to purchase and install multiple modems and multiple modem lines.
Plus, it's easy to set up and use. There are no user-configurable switches, jumpers, or settings on the modem splitter. Simply connect the modem and terminal (DTE) devices to it, then power up your modem and terminals as normal.
The splitter's master port connects to your modem using an RJ-45 straight-through cable and the appropriate RJ or DB adapter. Its other ports (Port 1 through Port 4) connect to your DTE terminal devices.
NOTE: Only one terminal device can send data to the modem at a time.
- Enables four RS-232 terminal devices to share a single modem.
- Transmits data received from the modem to all attached terminal devices.
- Passive, non-powered. Operates transparent to data formats and speeds.
- Only one terminal device can send data to the modem at a time.
- transparent to data formats, rates & protocols.
- RS232 data output by the attached terminal devices is logically OR gated by the modem splitter and then transmitted to the modem.
Product Specifications
-
Brand NameBlack Box
-
Country of OriginUnited States
-
Depth6.6"
-
Environmentally FriendlyYes
-
Height2.3"
-
Limited Warranty1 Year
-
Manufacturer Part NumberTL421-C
-
Network (RJ-45)Yes
-
Number of Network (RJ-45) Ports5
-
Product NameRS232 Passive Splitter Rackmount Card - RJ45, 4-Port
-
Product TypeSignal Splitter
-
Width4.3"
