Brainboxes Compact Industrial 4 Port Gigabit Ethernet Switch

Product #: ETLZ1076426752
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

Brainboxes Compact Industrial 4 Port Gigabit Ethernet Switch
4 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 3.60 W Power Consumption - Twisted Pair - DIN Rail Mountable - Lifetime Limited Warranty - TAA Compliant
Industrial Gigabit Ethernet switch. Compact 4 port unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
  • Effectively reduces downtime with improved network performance
  • Quickly and easily set up a wired network with 4 networking ports
  • With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience

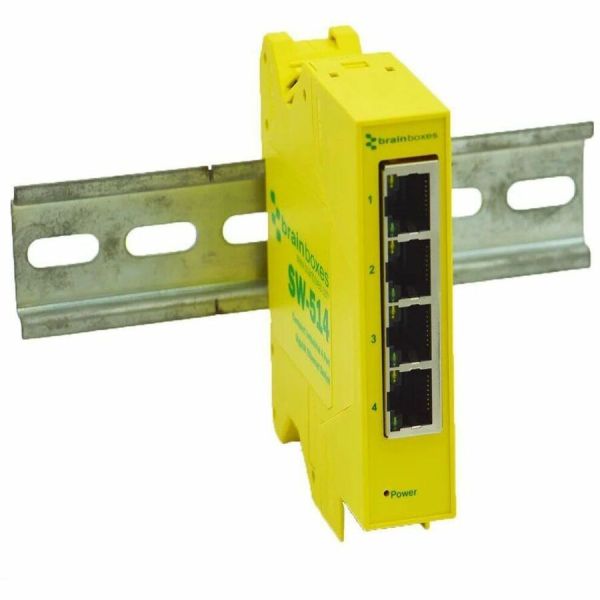

  • DIN Rail Mountable form factor allows hassle-free and easy usage with increased efficiency
  • The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
  • Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
  • Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Need more information? Ask a Question

Product Specifications

  • Application/Usage
    Industrial
  • Brand Name
    Brainboxes
  • Depth
    3.7"
  • Environmental Compliance
    Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmentally Friendly
    Yes
  • Ethernet Technology
    Gigabit Ethernet
  • Form Factor
    DIN Rail Mountable
  • Height
    3.9"
  • Input Voltage
    30 V DC
  • Layer Supported
    2
  • Limited Warranty
    Lifetime
  • Manageable
    No
  • Manufacturer Part Number
    SW514
  • Media Type Supported
    Twisted Pair
  • Modular
    No
  • Network Technology
    10/100/1000Base-T
  • Package Contents
    Compact Industrial 4 Port Gigabit Ethernet Switch Quick Start Guide
  • Power Consumption
    3.60 W
  • Power Source
    Power Supply
  • Product Model
    SW-514
  • Product Name
    Compact Industrial 4 Port Gigabit Ethernet Switch
  • Product Type
    Ethernet Switch
  • Stack Port
    No
  • Total Number of Network Ports
    4
  • Uplink Port
    No
  • Width
    0.9"
