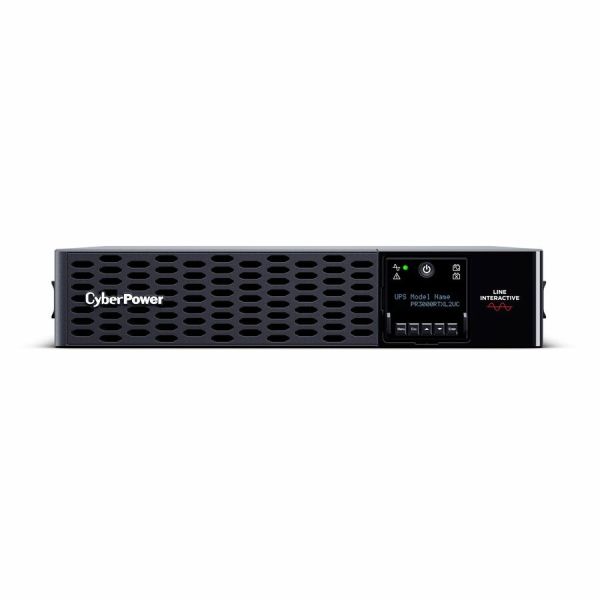

CyberPower PR3000RTXL2UC New Smart App Sinewave UPS Systems

3000VA/3000W, 120 VAC, NEMA L5-30P, 2U, Rack / Tower, Sine Wave, 9 Outlets, LCD, PowerPanel Business, $400000 CEG, 3YR Warranty
Product Number: ETLZ1077862219
  • Capacity: 3000 VA / 3000 W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 100-125 VAC +/- 5%
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

CyberPower PR3000RTXL2UC New Smart App Sinewave UPS Systems - The PR3000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.
The Smart App Sinewave PR3000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR3000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U02 Extended Battery Module (EBM) for expanded runtime during power outages and accepts the optional RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring.
With a $400,000 connected equipment guarantee and a threeyear warranty, you can trust CyberPower's commitment to the quality of the PR3000RTXL2UC.

  • Capacity: 3000 VA / 3000 W
  • Topology: Line Interactive
  • Waveform: Sine Wave
  • Output: 100-125 VAC +/- 5%
  • Runtime (half/full): 7 minutes / 1.7 minutes
  • Plug type & cord: NEMA L5-30P, 10 ft. cord
  • Outlets: 9 surge + battery backup
  • Outlet types: 8 x NEMA 5-20R, 1 x NEMA L5-30R
  • Communication: USB, Serial, SNMP, Relay, EPO, Cloud
  • Management software: PowerPanel Business Edition
  • Remote management: Yes, with optional RMCARD205 and Built-in Cloud Monitoring
  • Warranty: 3-year
  • Connected Equipment Guarantee: $400,000
  • ENERGY STAR certified: Yes
  • Experience higher efficiency with lower energy cost
  • Keep your sensitive devices powered with a backup of up to 1.70 minute at full load
  • 3000 W load capacity - backup power for your valuable electronics
  • 3000 VA load capacity provides sufficient backup during power failures
  • Overload protection feature protects a motor by sensing the current going to the motor to prevent malfunction
  • 4 batteries for optimal performance with maximum usability
  • 12V battery size for better reliance and optimal performance
  • 9000 mAh battery capacity for dependable, faster charging to ensure maximum convenience and usability
  • 3 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
  • Replaceable battery for maximum feasibility and better usability
CyberPower logo
Guides & Information
 Need more information? Ask a Question

Product Specifications

  • AVR
    Yes
  • Additional Warranty Information
    Connected Equipment Guarantee: Lifetime
  • Alarm
    Battery Mode Low Battery Overload Over-charge Fault
  • Application/Usage
    Server Storage Device VoIP Network Device Telecommunication Equipment
  • Battery Capacity
    9000 mAh
  • Battery Chemistry
    Lead Acid
  • Battery Size
    12V
  • Brand Name
    CyberPower
  • Depth
    19.7"
  • Display
    LCD
  • EMI/RFI Noise Filter
    Yes
  • EPO Port
    Yes
  • Environmental Certification
    RoHS GreenPower UPS
  • Environmentally Friendly
    Yes
  • Form Factor
    Rack/Tower
  • Height
    3.4"
  • Hot Swappable
    Yes
  • Input Frequency
    63 Hz
  • Input Voltage
    120 V AC
  • Input Voltage Range
    70 V AC - 155 V AC
  • Limited Warranty
    3 Year
  • Load Capacity (VA)
    3000 VA
  • Load Capacity (Watt)
    3000 W
  • Manufacturer Part Number
    PR3000RTXL2UC
  • Maximum Operating Elevation
    9842.52 ft
  • Maximum Operating Temperature
    104°F (40°C)
  • Maximum Storage Elevation
    49209.32 ft
  • Network Management
    SNMP/HTTP Remote Monitoring Relay-MS Card Dry Contact
  • Number of Batteries
    4
  • Number of Battery & Surge Outlets
    9
  • Number of Critical Load Outlets
    4
  • Operating Humidity
    95%
  • Output Frequency
    60 Hz
  • Output Power Factor
    1
  • Output Voltage
    100 V AC 110 V AC 120 V AC 125 V AC
  • Overload Protection
    Yes
  • Plug/Connector Type
    NEMA L5-30P
  • Product Color
    Black
  • Product Model
    PR3000RTXL2UC
  • Product Name
    Smart App Sinewave PR3000RTXL2UC 3000VA Rack/Tower UPS
  • Product Series
    Smart App Sinewave
  • Product Type
    Line-interactive UPS
  • Rack Height
    2U
  • Receptacle Detail
    8 x NEMA 5-20R 1 x NEMA L5-30R
  • Receptacle Type
    NEMA 5-20R NEMA L5-30R
  • Replaceable Battery
    Yes
  • Serial Port
    Yes
  • Sound Emission (A-Weighted)
    57.5 dB(A)
  • Status Indicators
    LED Indicators: Power On Line Mode Battery Mode Fault
  • Storage Relative Humidity
    95%
  • Storage Temperature
    5°F (-15°C) - 113°F (45°C)
  • Surge Energy Rating
    2430 J
  • Thermal Dissipation
    56.42 W
  • Transfer Time
    4 ms
  • Typical Battery Recharge Time
    3 Hour
  • USB
    Yes
  • USB (HID Compliant) Port
    Yes
  • Waveform Type
    Sine Wave
  • Width
    17.1"
