Eaton Tripp Lite Series 1440VA 1050W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring - 10 NEMA 5-15R Outlets (Surge and Battery Backup), Extended Run, LCD, 5-15P Plug, 2U Rack/Tower
Product #:
ETLZ1082297323
+32View All
$619.08
Loading...
Product Description
Eaton Tripp Lite Series 1440VA 1050W 120V Line-Interactive Cloud-Connected UPS with Remote Monitoring - 10 NEMA 5-15R Outlets (Surge and Battery Backup), Extended Run, LCD, 5-15P Plug, 2U Rack/Tower
2U Desktop/Tower/Rack - AVR - 8 Hour Recharge - 2 Minute Stand-by - 120 V AC Input - 120 V AC Output - Single Phase - Sine Wave, Pulse-width Modulated Sine Wave - USB - LCD Display - 10 x NEMA 5-15R Receptacle(s) - 10 x Battery/Surge Outlet - Network Card
Features | 1440VA/1050W/120V Battery Backup for Small Network Servers and Network Workstations

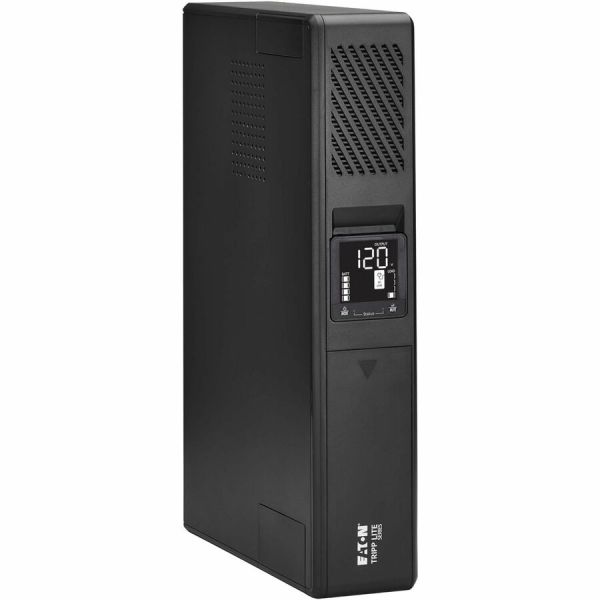

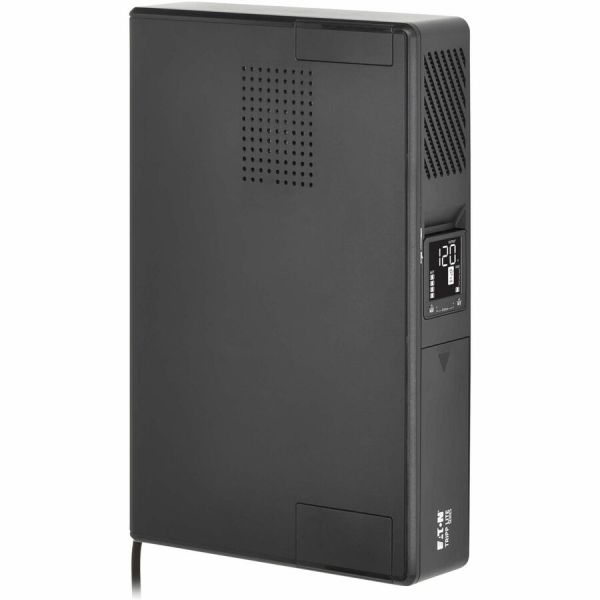

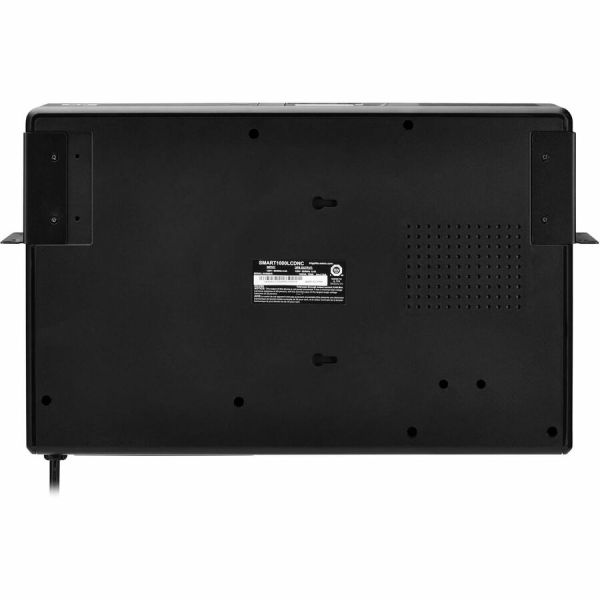

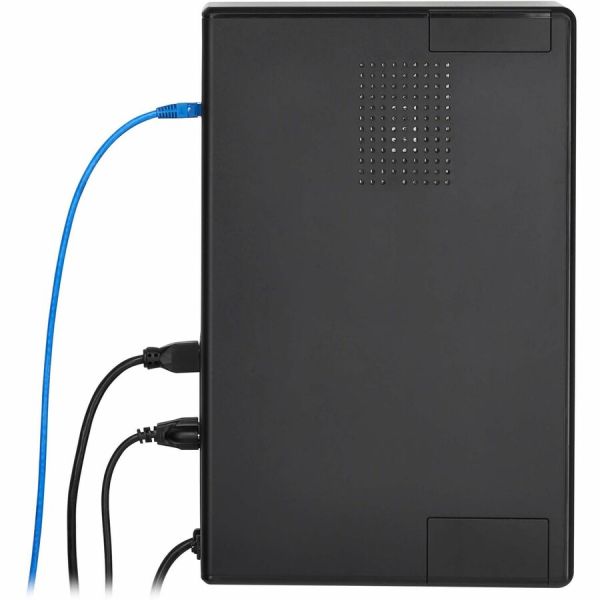

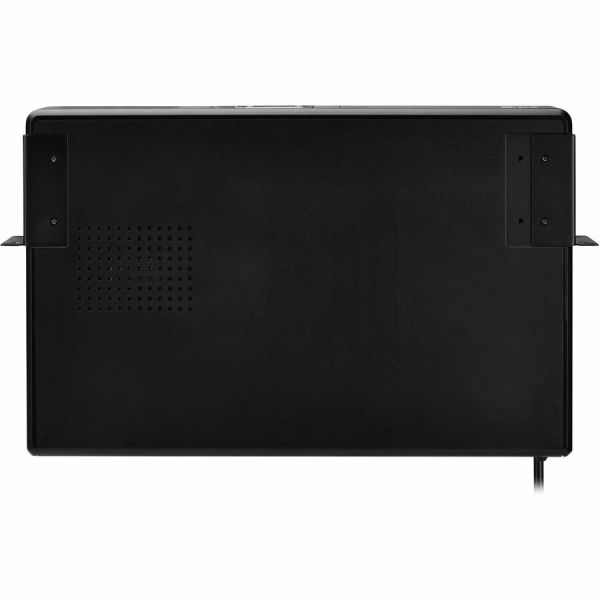

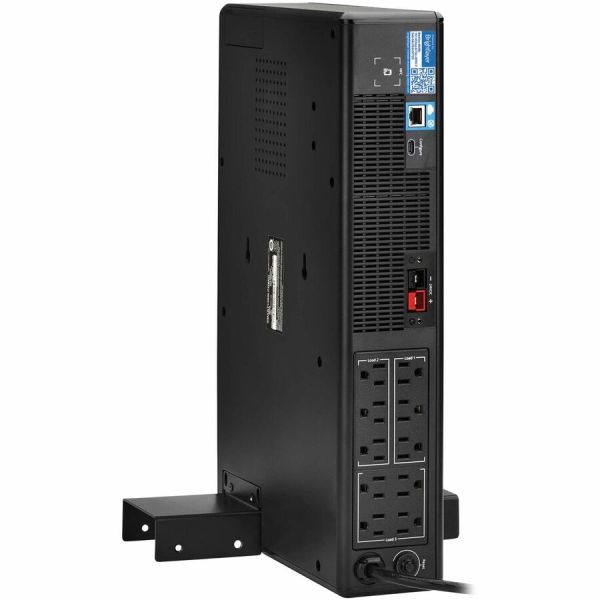

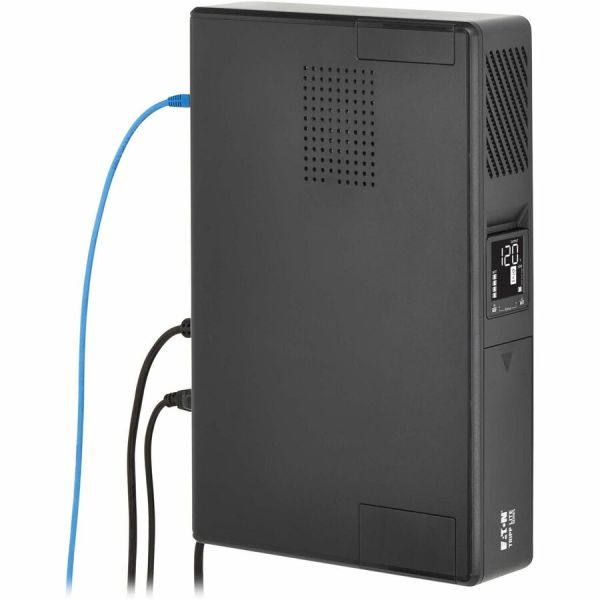

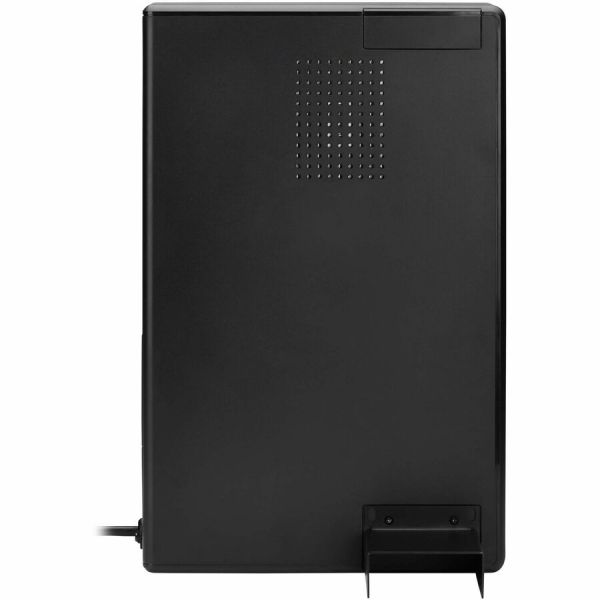

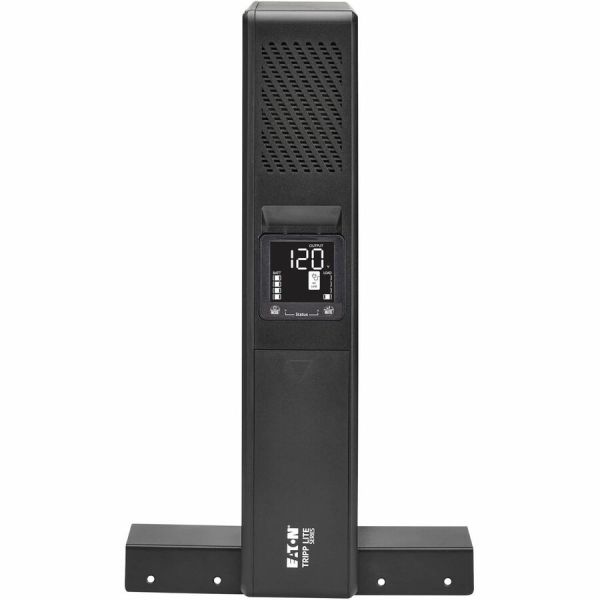

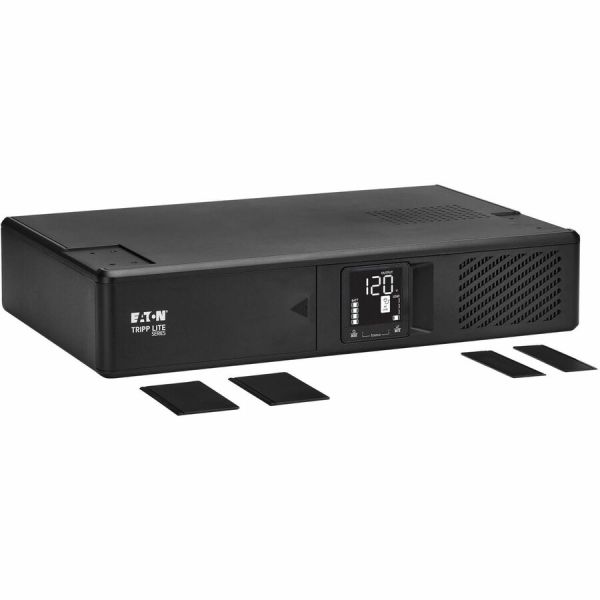

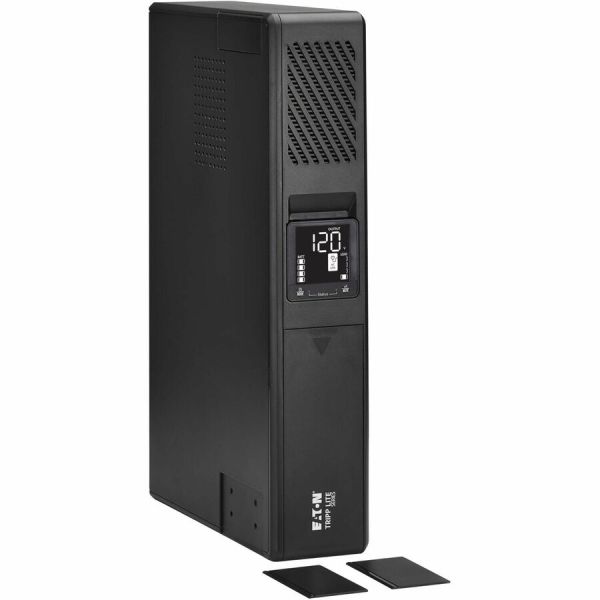

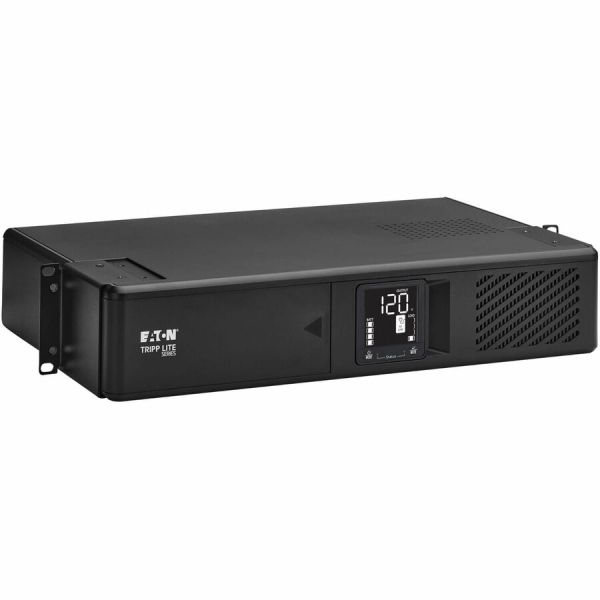

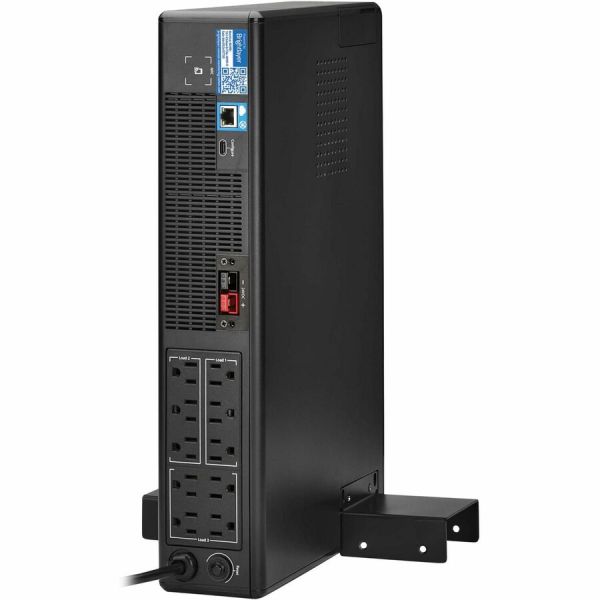

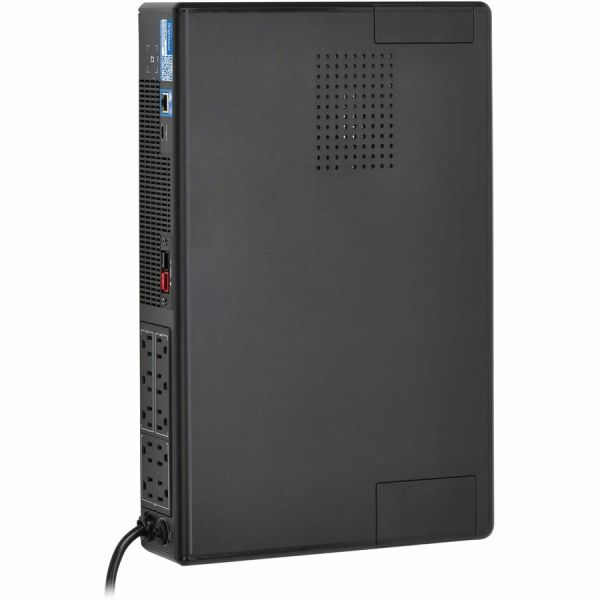

The SMART1500LCDXNC line-interactive cloud-connected UPS system combines cloud connectivity, remote management and advanced protection features. Its flexible form factor is suitable for desktop or floor placement, under desks or workstations, mounted on a wall or installed in 2U of space in a 2-post or 4-post rack. It's recommended for home, office and retail use, as well as network closets in both local and remote locations.
Easy-to-Use Cloud-Enabled Remote Monitoring Powered by Brightlayer
Eaton's cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control load banks using a mobile app or web browser. Being able to monitor and access multiple UPS systems from a remote location helps reduce the number of site visits, saving you time and money. The unit's NFC (near-field communication) feature lets you configure network settings instantly from your mobile device.
Allows Time to Back Up Critical Files During a Blackout
During short blackouts, the SMART1500LCDXNC switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Once AC power is restored, the SMART1500LCDXNC restarts automatically, regardless of battery charge level, saving you a costly site visit.
Add an Extended Battery Module (EBM) for Extra Runtime
Runtime can be significantly increased by connecting an optional extended battery module (BP24V15RT2U, sold separately). This helps the UPS sustain power through extended outages, which provides additional runtime for heavy or light loads. Only one EBM can be connected at a time.

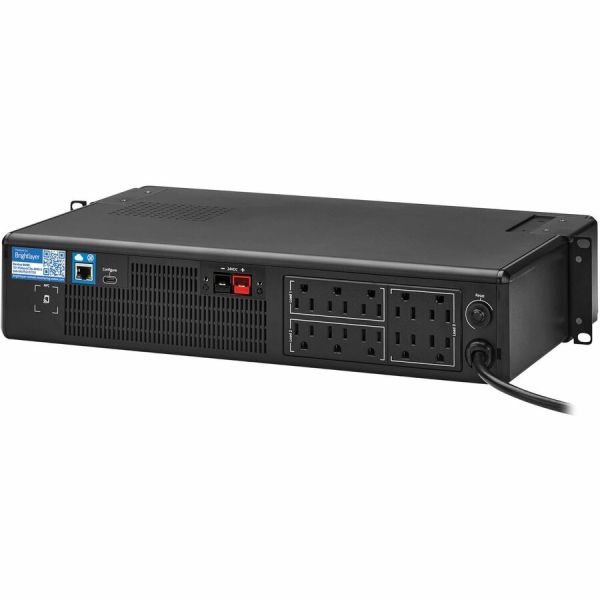

NEMA 5-15R Outlets and Controllable Load Banks Protect Connected Components

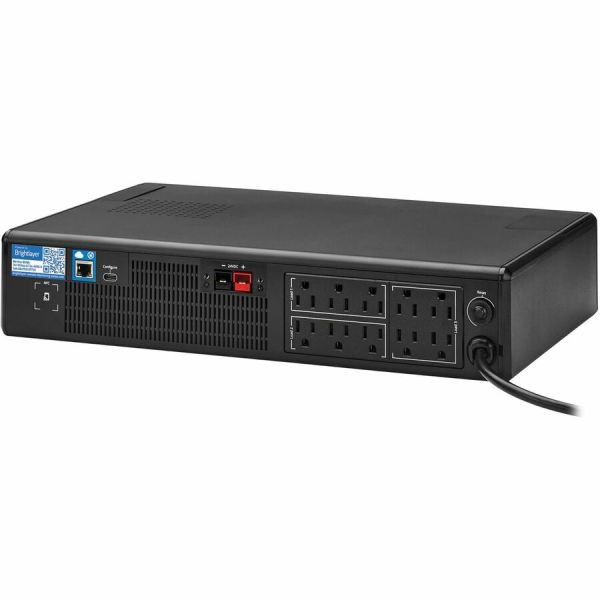

Ten 5-15R outlets provide battery backup and surge protection for your computer, monitor, security camera, router, network switch, server and other electronic devices. Remote monitoring allows individual control of three switchable load banks that can be powered on/off or cycled remotely, saving you an expensive and time-consuming on-site visit.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltage. The SMART1500LCDXNC can correct brownouts as low as 97V and overvoltage as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
Communications Ports

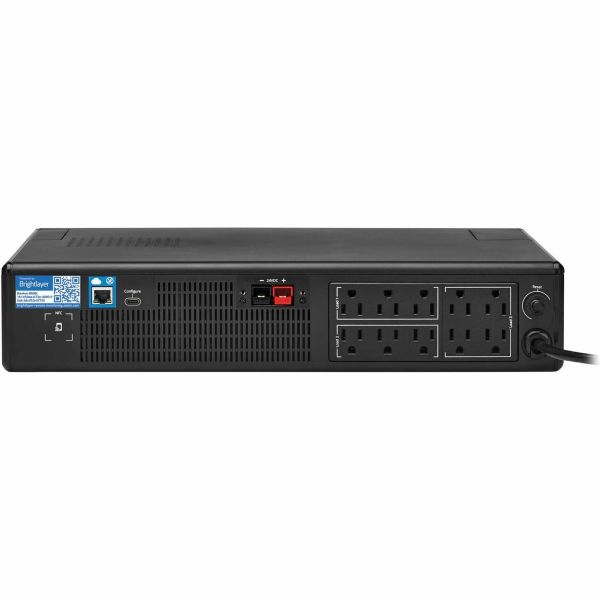

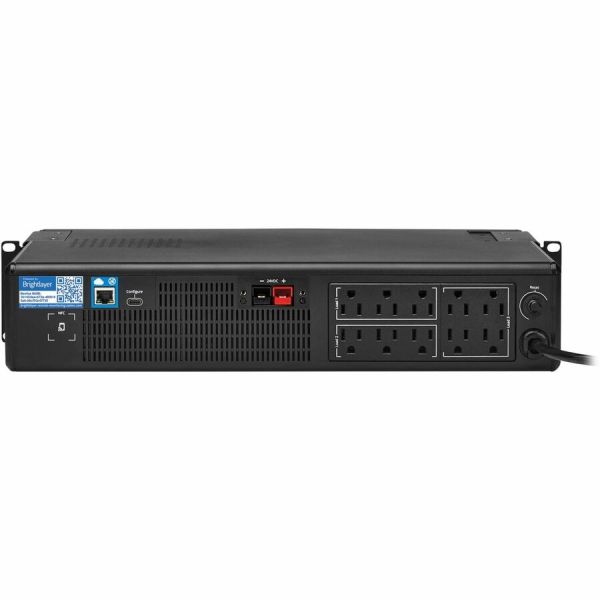

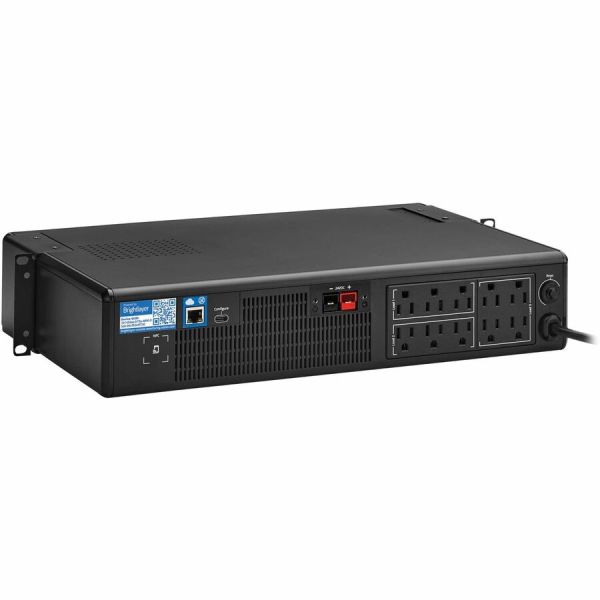

An RJ45 port for Ethernet connectivity enables use of the cloud-based remote monitoring application. A USB-C port provides direct connection to the command line interface (CLI) for configuration and identification of local network parameters.

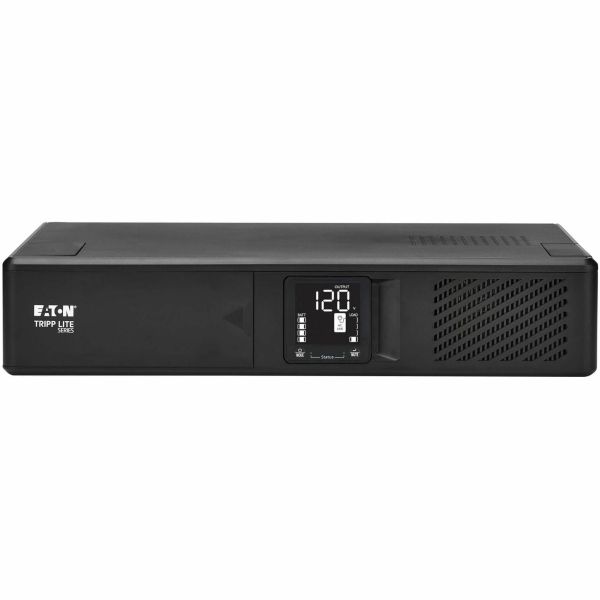

Intuitive LCD, Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7

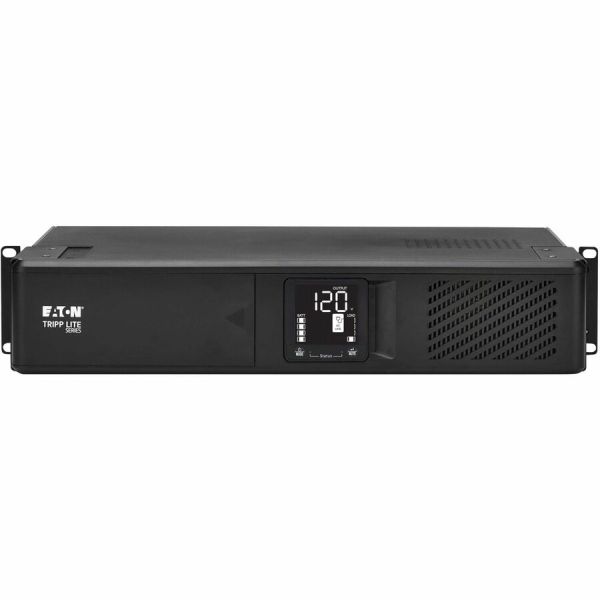

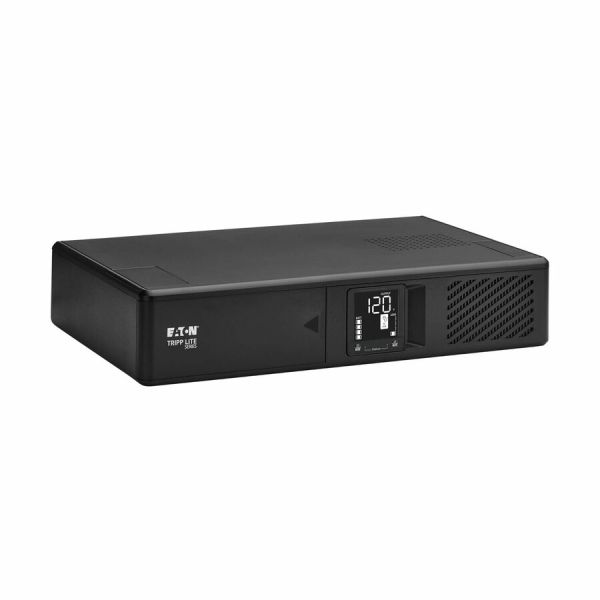

The easy-to-read LCD and two status LEDs allow at-a-glance local monitoring of UPS status, voltage, load level, battery level and other vital information. A solid green LED means the battery is charged, a flashing green indicates it is charging and a solid red indicates fault. The audible alarm indicates power outage, low-battery and fault conditions. It can be silenced via the LCD or the remote monitoring app, which will still respond to silenced alarms.
The SMART1500LCDXNC line-interactive cloud-connected UPS system combines cloud connectivity, remote management and advanced protection features. Its flexible form factor is suitable for desktop or floor placement, under desks or workstations, mounted on a wall or installed in 2U of space in a 2-post or 4-post rack. It's recommended for home, office and retail use, as well as network closets in both local and remote locations.
Easy-to-Use Cloud-Enabled Remote Monitoring Powered by Brightlayer
Eaton's cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control load banks using a mobile app or web browser. Being able to monitor and access multiple UPS systems from a remote location helps reduce the number of site visits, saving you time and money. The unit's NFC (near-field communication) feature lets you configure network settings instantly from your mobile device.
Allows Time to Back Up Critical Files During a Blackout
During short blackouts, the SMART1500LCDXNC switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Once AC power is restored, the SMART1500LCDXNC restarts automatically, regardless of battery charge level, saving you a costly site visit.
Add an Extended Battery Module (EBM) for Extra Runtime
Runtime can be significantly increased by connecting an optional extended battery module (BP24V15RT2U, sold separately). This helps the UPS sustain power through extended outages, which provides additional runtime for heavy or light loads. Only one EBM can be connected at a time.
NEMA 5-15R Outlets and Controllable Load Banks Protect Connected Components
Ten 5-15R outlets provide battery backup and surge protection for your computer, monitor, security camera, router, network switch, server and other electronic devices. Remote monitoring allows individual control of three switchable load banks that can be powered on/off or cycled remotely, saving you an expensive and time-consuming on-site visit.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltage. The SMART1500LCDXNC can correct brownouts as low as 97V and overvoltage as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
Communications Ports
An RJ45 port for Ethernet connectivity enables use of the cloud-based remote monitoring application. A USB-C port provides direct connection to the command line interface (CLI) for configuration and identification of local network parameters.
Intuitive LCD, Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7
The easy-to-read LCD and two status LEDs allow at-a-glance local monitoring of UPS status, voltage, load level, battery level and other vital information. A solid green LED means the battery is charged, a flashing green indicates it is charging and a solid red indicates fault. The audible alarm indicates power outage, low-battery and fault conditions. It can be silenced via the LCD or the remote monitoring app, which will still respond to silenced alarms.
- Cloud-based dashboard allows 24/7 remote monitoring via browser or mobile app
- Cloud-connected UPS sets up in minutes to start protecting your devices
- Create account with two-factor authentication for an additional layer of security
- NFC technology allows easy configuration of network settings from your mobile device
- Add external battery module (sold separately) to extend runtime during power outages
- Restarts automatically when AC power is restored, even when battery level is low or absent
- 3-year limited warranty
- $250,000 Ultimate Lifetime Insurance
- Works adequately in situations where the supply is prone to sags and surges
- Keep your sensitive devices powered with a backup of up to 2 minute at full load
- 1050 W load capacity - backup power for your valuable electronics
- 1440 VA load capacity - work without any interruption during power outages
- Overload protection feature protects a motor by sensing the current going to the motor to prevent malfunction
- 8 Hour typical battery recharge time for better convenience and prolonged, productive usage
- Replaceable battery for optimal performance with maximum charged dependability
- Lead Acid battery chemistry for your convenience and better usability
- NEMA 5-15P plug/connector type for maximum usability with added reliability
- NEMA 5-15R receptacle type provides secure, reliable connection with added productivity
Loading...
Product Specifications
-
AlarmPower Failure Low Battery
-
Application/UsageRetail POS Hospital Home Office Desktop High-end System Network Home Network Server Workstation Computer Monitor CCTV Camera Router Network Switch Electronic Device
-
Backup/Run Time (Full Load)2 Minute
-
Backup/Run Time (Half Load)10 Minute
-
Battery CharacteristicsValve-regulated
-
Battery ChemistryLead Acid
-
Brand NameTripp Lite series
-
Certifications & StandardsCAN/CSA C22.2NOM (Mexico)UL 1778FCC Part 15 Class B (USA)
-
Circuit BreakerYes
-
Cord Length5 ft
-
Country of OriginVietnam
-
Depth11"
-
Directly Connected Equipment Guarantee$250000 Lifetime
-
DisplayLCD
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
FeaturesAudible Alarm Cold Start Function
-
Form FactorDesktop/Tower/Rack
-
Height3.4"
-
Hot SwappableYes
-
Input Current12 A
-
Input Frequency50 Hz 60 Hz
-
Input Voltage120 V AC
-
Input Voltage Range97 V AC - 145 V AC
-
Limited Warranty3 Year
-
Load Capacity (VA)1440 VA
-
Load Capacity (Watt)1050 W
-
Manufacturer Part NumberSMART1500LCDXNC
-
Maximum Operating Temperature104°F (40°C)
-
Minimum Operating Temperature32°F (0°C)
-
Network (RJ-45)Yes
-
Network ManagementNetwork Card
-
Output Frequency50 Hz 60 Hz
-
Output Voltage120 V AC
-
Overload ProtectionYes
-

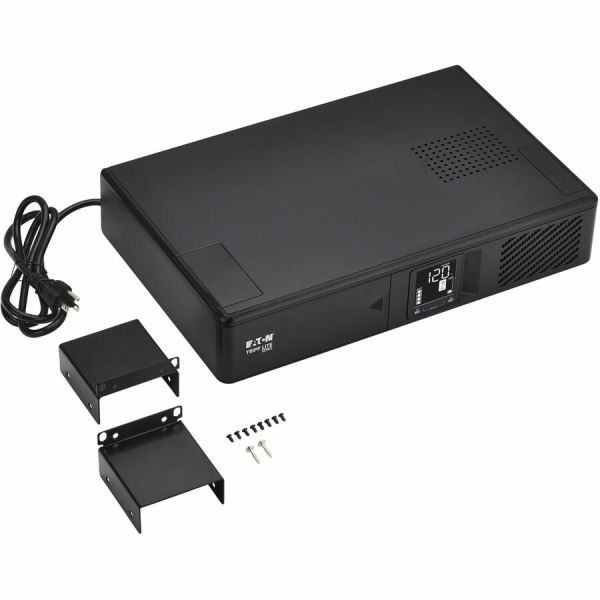

Package ContentsSMART1500LCDXNC 1440VA Desktop/Tower/Rack UPSMounting HardwareQuick Start Guide
-
PhaseSingle Phase
-
Plug/Connector TypeNEMA 5-15P
-
Product ModelSMART1500LCDXNC
-
Product NameSMART1500LCDXNC 1440VA Desktop/Tower/Rack UPS
-
Product TypeLine-interactive UPS
-
Rack Height2U
-
Receptacle TypeNEMA 5-15R
-
Status IndicatorsFront Panel LCD Display:UPS status Input VoltageOutput VoltageEstimated Runtime (minutes)Output Load PercentageOutput Load WattageBattery VoltageGraphical 4-Bar Battery Charge level 4 bar load Level UPS status AC Powered Battery operationAlarm muted (icon flashing)Alarm disabled (icon steady on) LED Indicators:AC operationBattery chargingUPS fault
-
Surge Energy Rating380 J
-
Surge SuppressionYes
-
Thermal Dissipation16.80 W
-
USBYes
-
Waveform TypeSine Wave Pulse-width Modulated Sine Wave
-
Width17.2"
