Eaton Tripp Lite Series SmartRack 12U Small Server Rack Enclosure for Harsh Environments, 230V
Product #:
ETLZ1044649366
+2View All
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

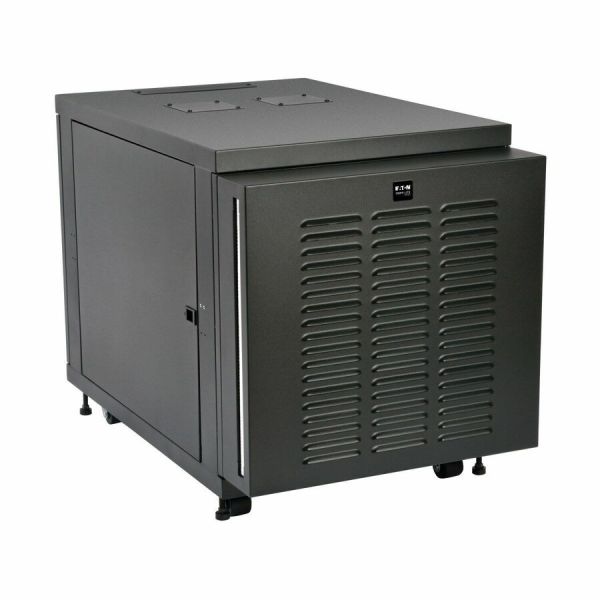

Eaton Tripp Lite Series SmartRack 12U Small Server Rack Enclosure for Harsh Environments, 230V
For Server, Patch Panel, LAN Switch, UPS, Battery Pack - 12U Rack Height x 19" Rack Width x 32.50" Rack Depth - Black Powder Coat - Steel - 1000 lb Maximum Weight Capacity - 1000.90 lb Dynamic/Rolling Weight Capacity - 1000.90 lb Static/Stationary Weight Capacity
The SRX12UBFFD SmartRack 12U NEMA 12 Server-Depth Rack Enclosure Cabinet is designed to house standard 19-inch (48.3 cm) rack equipment in harsh, dirty work environments with limited floor space, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs and warehouses. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 1000 pounds (453.4 kg).
The SRX12UBFFD has an IP54 (NEMA 12) protection rating, protecting sensitive equipment against dirt, dust, lint, oil, drips and splashes. Its pre-installed air filter and louvered vents on the front door prevent dripping water, oil and airborne contaminants from getting inside. You can replace the air filter with standard, off-the-shelf furnace filters. Four high-performance intake fans built into the front door pull filtered air through the cabinet to keep your equipment cool.
Dust- and drip-resistant top and bottom ports allow easy cable routing through the enclosure. The reversible front and rear doors and removable side panels lock securely to help prevent damage, tampering or theft.
The SRX12UBFFD comes fully assembled and ready to use with removable casters and levelers for smooth deployment and placement. Square mounting holes and numbered rack spaces make equipment installation easy. The adjustable front and rear vertical mounting rails accommodate equipment up to 32.5 inches (82.6 cm) deep, such as 1U servers, UPS systems, battery packs, network switches and patch panels.
Features
Saves Valuable Workspace
Perfect for harsh, dirty work environments where you need equipment to be secure, organized, out of the way and protected from environmental contaminants
Houses standard 19 in. (48.3 cm) rack equipment in 12U of space
Maximum load capacity of 1000 lb. (453.4 kg)
IP54 (NEMA 12) Protection Rating
Pre-installed air filter and louvered door vents keep out dirt, dust, lint, oil, drips and splashes
Removable air filter can be replaced with standard, off-the-shelf furnace filters
Built-in high-performance door fans have C13 outlet that accepts various input cords (Schuko, BS 1363 and C14 cords included)
Sealed cable ports maintain dust and moisture resistance
Keeps Important Equipment Secure
Removable side panels and reversible doors lock securely to help prevent damage, tampering or theft
Convenient ports with removable covers allow cable routing through top and bottom
Easy Enclosure and Equipment Installation
Ships fully assembled and ready to use
Wall-mounting holes spaced 16 in. apart for standard wall stud placement
Adjustable vertical mounting rails accommodate equipment up to 32.5 in. (82.6 cm) deep, such as 1U servers and patch panels
Rack spaces numbered for easy reference
Removable casters and levelers help with minor position adjustments and stabilization
Meets Payment Card Industry Standards
Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance
The SRX12UBFFD has an IP54 (NEMA 12) protection rating, protecting sensitive equipment against dirt, dust, lint, oil, drips and splashes. Its pre-installed air filter and louvered vents on the front door prevent dripping water, oil and airborne contaminants from getting inside. You can replace the air filter with standard, off-the-shelf furnace filters. Four high-performance intake fans built into the front door pull filtered air through the cabinet to keep your equipment cool.
Dust- and drip-resistant top and bottom ports allow easy cable routing through the enclosure. The reversible front and rear doors and removable side panels lock securely to help prevent damage, tampering or theft.
The SRX12UBFFD comes fully assembled and ready to use with removable casters and levelers for smooth deployment and placement. Square mounting holes and numbered rack spaces make equipment installation easy. The adjustable front and rear vertical mounting rails accommodate equipment up to 32.5 inches (82.6 cm) deep, such as 1U servers, UPS systems, battery packs, network switches and patch panels.
Features
Saves Valuable Workspace
Perfect for harsh, dirty work environments where you need equipment to be secure, organized, out of the way and protected from environmental contaminants
Houses standard 19 in. (48.3 cm) rack equipment in 12U of space
Maximum load capacity of 1000 lb. (453.4 kg)
IP54 (NEMA 12) Protection Rating
Pre-installed air filter and louvered door vents keep out dirt, dust, lint, oil, drips and splashes
Removable air filter can be replaced with standard, off-the-shelf furnace filters
Built-in high-performance door fans have C13 outlet that accepts various input cords (Schuko, BS 1363 and C14 cords included)
Sealed cable ports maintain dust and moisture resistance
Keeps Important Equipment Secure
Removable side panels and reversible doors lock securely to help prevent damage, tampering or theft
Convenient ports with removable covers allow cable routing through top and bottom
Easy Enclosure and Equipment Installation
Ships fully assembled and ready to use
Wall-mounting holes spaced 16 in. apart for standard wall stud placement
Adjustable vertical mounting rails accommodate equipment up to 32.5 in. (82.6 cm) deep, such as 1U servers and patch panels
Rack spaces numbered for easy reference
Removable casters and levelers help with minor position adjustments and stabilization
Meets Payment Card Industry Standards
Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance
- Maximum load capacity of 1000 lbs (453.6 kgs)
- Protects against dirt, dust, drips and splashes
- Pre-installed dust filter protects interior from airborne particles
- Locking steel cabinet with built-in ventilation fans
- Secures 12U of 19 in. rack equipment up to 32.5 in. (82.6 cm) deep
- Rack Cabinet offers practical and convenient storage and organization solutions that are adaptable to your space
- Comes in black powder coat color for an elegant and fashionable look
- Built with steel which enhances the design and general presentation style of Rack Cabinet
- Server application, usage for easy accessibility with items, valuables, equipment organizational, storage, placement convenience
Product Specifications
-
Application/UsageServer Patch Panel LAN Switch UPS Battery Pack
-
Assembly RequiredNo
-
Brand NameTripp Lite series
-
Country of OriginChina
-
Depth38.5"
-
Dynamic/Rolling Weight Capacity1000.90 lb
-
Height25.2"
-
Manufacturer Part NumberSRX12UBFFD
-
Maximum Weight Capacity1000 lb
-
Product LineSmartRack
-
Product ModelSRX12UBFFD
-
Product NameSRX12UBFFD SmartRack 12U NEMA 12 Server-Depth Rack Enclosure Cabinet
-
Product TypeRack Cabinet
-
Rack Depth32.50"
-
Rack Height12U
-
Rack Width19"
-
Static/Stationary Weight Capacity1000.90 lb
-
Width23.6"
