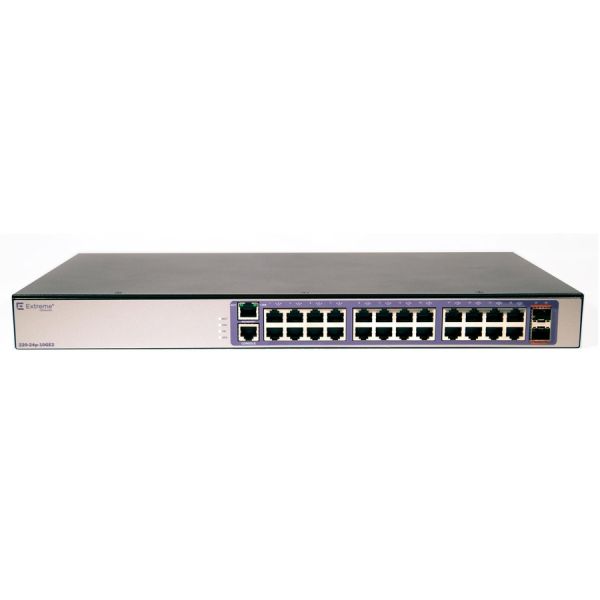

Extreme Networks 220-24p-10GE2 Layer 3 Switch
Product #:
ETLZ1038739512
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Extreme Networks 220-24p-10GE2 Layer 3 Switch
24 Ports - Manageable - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - Lifetime Limited Warranty
The ExtremeSwitching 220 Series is an economical, fixed-configuration family of Gigabit Ethernet Layer 2/3 switches designed for enterprises, branch offices and small to medium-sized businesses looking for key features in a flexible, yet easy-to-manage solution.
The series consists of six switches including 12-, 24-, and 48-port Gigabit Ethernet switches and 12-, 24-, and 48-port Gigabit PoE+ models. All models provide non- blocking Gigabit per port performance and include either 2 or 4 SFP+ ports for high-speed 10Gbps fiber connectivity. In addition, the 12-port PoE+ and non-PoE+ models can operate in fanless mode, making them ideal for office deployments. In addition to a rich Layer 2 feature set, the 220 Series offers dynamic IPv4 RIP routing services, stacking of up to 4 switches with single IP management, and redundant power supply option.
The 220 Series also provides multiple management options, including cloud-based management via ExtremeCloud for wired and wireless network oversight through a single pane of glass. The switches can also be set-up via a web browser, or managed by ExtremeManagement for centralized provisioning, monitoring and troubleshooting. And for advanced users, the 220 Series offers an industry-standard CLI along with scripting capabilities.
All ExtremeSwitching 220 Series switches include a Limited Lifetime Warranty, which provides advanced hardware replacement with next business day shipment.
The series consists of six switches including 12-, 24-, and 48-port Gigabit Ethernet switches and 12-, 24-, and 48-port Gigabit PoE+ models. All models provide non- blocking Gigabit per port performance and include either 2 or 4 SFP+ ports for high-speed 10Gbps fiber connectivity. In addition, the 12-port PoE+ and non-PoE+ models can operate in fanless mode, making them ideal for office deployments. In addition to a rich Layer 2 feature set, the 220 Series offers dynamic IPv4 RIP routing services, stacking of up to 4 switches with single IP management, and redundant power supply option.
The 220 Series also provides multiple management options, including cloud-based management via ExtremeCloud for wired and wireless network oversight through a single pane of glass. The switches can also be set-up via a web browser, or managed by ExtremeManagement for centralized provisioning, monitoring and troubleshooting. And for advanced users, the 220 Series offers an industry-standard CLI along with scripting capabilities.
All ExtremeSwitching 220 Series switches include a Limited Lifetime Warranty, which provides advanced hardware replacement with next business day shipment.
- 12, 24, or 48 Gigabit Ethernet ports
- 12, 24, or 48 IEEE 802.3at PoE port models
- 2 or 4 10GBase-X SFP+ ports
- Line rate performance on all ports
- Stacking of up to four switches with other 220 Series
- Comprehensive Layer 2 Edge feature set
- Layer 3 Static and RIP Routing with 64 routes for network segmentation
- Access control lists for granular security control
- Redundant Power Supply option
- Limited Lifetime Warranty
- Layer 3 Switch ensures productivity by providing an efficient, hassle-free connection
- Stack port provides an easy and hassle-free way to extend your office network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 24 ports
- Supports layer 3 switching for enhanced performance and usability
- Management capability provides control over setup and configuration of your network
- Optimize the performance of business networks with 10 Gigabit Ethernet connectivity
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
Product Specifications
-
Brand NameExtreme Networks
-
Depth10"
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) China Restriction of Hazardous Substances (China RoHS)
-
Environmentally FriendlyYes
-
Ethernet TechnologyGigabit Ethernet 10 Gigabit Ethernet
-
Expansion Slot TypeSFP+
-
Height1.7"
-
Layer Supported3
-
Limited WarrantyLifetime
-
ManageableYes
-
Manufacturer Part Number16563
-
Media Type SupportedOptical Fiber Twisted Pair
-
ModularYes
-
Network Technology10/100/1000Base-T 10GBase-X
-
Number of SFP+ Slots2
-
Package Contents220-24p-10GE2 Layer 3 Switch 1 x Fixed AC PSU 1 x Power Cord
-
Port/Expansion Slot Details24 x Gigabit Ethernet Network 2 x 10 Gigabit Ethernet Expansion Slot
-
Power SourcePower Supply
-
Product Model220-24p-10GE2
-
Product Name220-24p-10GE2 Layer 3 Switch
-
Product Series220
-
Product TypeLayer 3 Switch
-
Redundant Power Supply SupportedYes
-
Shared SFP SlotNo
-
Stack PortYes
-
Total Number of Expansion Slots2
-
Total Number of Network Ports24
-
Uplink PortNo
-
Width17.4"
