dbx ZC-FIRE ZonePRO Fire Safety Interface
Product #:
ETLZ1035743119
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

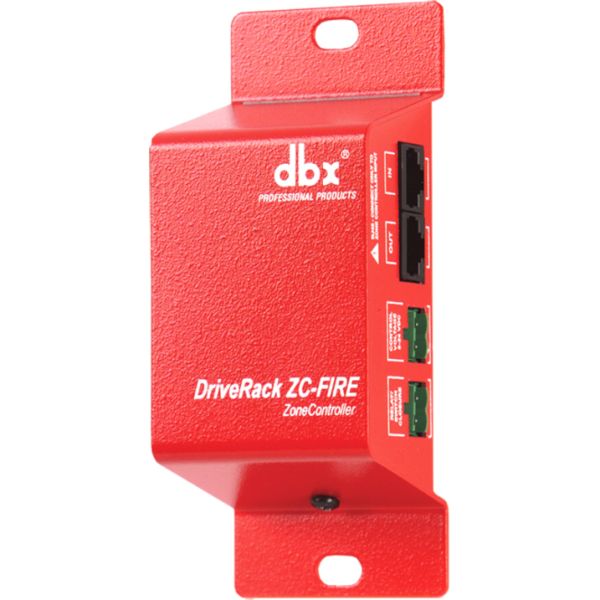

dbx ZC-FIRE ZonePRO Fire Safety Interface
Wired
The Zone Controllers offer extended utility to the DriveRack and ZonePRO families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.
The ZC-FIRE is a dedicated fire safety interface for the ZonePRO products that allows selection of either system mute or scene selection upon being triggered by either a relay or control voltage from the fire safety system.
The ZC-FIRE is a dedicated fire safety interface for the ZonePRO products that allows selection of either system mute or scene selection upon being triggered by either a relay or control voltage from the fire safety system.
- Programmable Volume Control
- Program or Scene Selection
- Programmable Contact Closure Interface
- Up to 1000 ft. on CAT 5 Cable
- Programmable Push-ToTalk Paging
- Programmable Source Selection
Product Specifications
-
Additional InformationConnectors (2) RJ-45 Series Wiring Maximum Cable Length varies with number of Zone Controllers. For Example,Three Zone Controllers: 600 ft. Six Zone Controllers: 300 ft. Parallel Wiring using ZC-BOB Up to Six Zone Controllers: 1000 ft. Parallel Wiring Cable CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher. Safety Agency Certifications UL 60065, IEC 60065, EN 55013, E60065
-
Brand Namedbx
-
Connectivity TechnologyWired
-
Form FactorWall Mountable
-
Limited Warranty2 Year
-
Manufacturer Part NumberDBXZCV-FIRE
-
Product ModelZC-FIRE
-
Product NameZC-FIRE ZonePRO Fire Safety Interface
-
Product SeriesZC
-
Product TypeAudio Control Device
