Fluke 289 True-RMS Industrial Logging Multimeter
Product #:
ETLZ1072445183
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

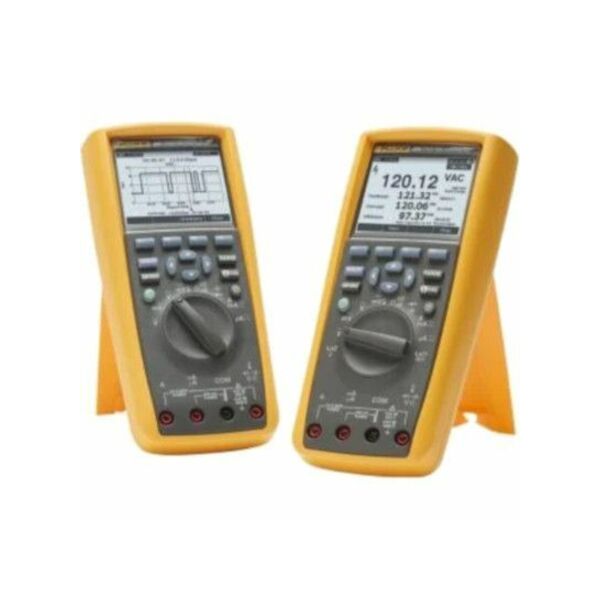

Fluke 289 True-RMS Industrial Logging Multimeter
1000 V, 10 A AC - 1000 V, 10 A DC - Backlight, Adjustable Recording
Product overview: Fluke 289 True-RMS Data Logging Multimeter | Fluke 289 True-RMS Logging Multimeter helps you find little problems before they become big ones
The Fluke 289 is the next generation high performance industrial logging multimeter. This Fluke Connect-compatible DMM is designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. Let the 289 be your watchdog for systems or processes while you are off doing other jobs. It provides the ability to log data and graphically review up 10,000 recorded events and logged readings with on-board TrendCapture. Zoom on trend provides a 14x zoom to view and analyze data-without needing a PC.
Because the 289 is Fluke Connect-compatible you can set it up with the ir3000 FC wireless connector (sold separately) to communicate with your iOS and Android smart devices through the Fluke Connect mobile app and monitor readings from a remote location. Or you can share readings with your team in an instant anytime, from anywhere with ShareLive video call. It can help you solve problems faster and minimize downtime.
Other useful features:
Provides up to a 14x zoom to view and analyze TrendCapture data in depth
Includes a selectable AC filter (smoothing mode) to help display a steadier reading when the input signal is changing rapidly or noisy.
Offers adjustable recording and auto hold thresholds to specify a percentage change in the readings that begins a new event
Features a large 50,000 count, 1/4 VGA dot matrix display with white backlight
Stores up to 15,000 recorded events so you can save multiple logging sessions before PC download is necessary
Provides two-terminal 50 ohm range with 1 milliohm resolution, 10 mA source current, for measuring and comparing differences in motor winding resistance or contact resistance
Includes low pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment.
Provides LoZ Volts, a low impedance voltage function for eliminating ghost voltages Recommended when testing for absence or presence of live power
Features on-board help screens for measurement functions
Includes a real-time clock to automatically time stamp saved readings
Offers relative mode to remove test lead resistance from low ohms or capacitance measurements
Provides True-RMS AC voltage and current for accurate measurements on non-linear signals
Measures up to 10 A (20 A for 30 seconds)
Provides up to 100 mF capacitance range
Records transients as fast as 250 µs with peak capture
Includes premium test leads, alligator clips, and amp jack plugs
Offers optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
Works with optional FlukeView forms to enable you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents.
Includes a limited lifetime warranty.
The Fluke 289 is the next generation high performance industrial logging multimeter. This Fluke Connect-compatible DMM is designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. Let the 289 be your watchdog for systems or processes while you are off doing other jobs. It provides the ability to log data and graphically review up 10,000 recorded events and logged readings with on-board TrendCapture. Zoom on trend provides a 14x zoom to view and analyze data-without needing a PC.
Because the 289 is Fluke Connect-compatible you can set it up with the ir3000 FC wireless connector (sold separately) to communicate with your iOS and Android smart devices through the Fluke Connect mobile app and monitor readings from a remote location. Or you can share readings with your team in an instant anytime, from anywhere with ShareLive video call. It can help you solve problems faster and minimize downtime.
Other useful features:
Provides up to a 14x zoom to view and analyze TrendCapture data in depth
Includes a selectable AC filter (smoothing mode) to help display a steadier reading when the input signal is changing rapidly or noisy.
Offers adjustable recording and auto hold thresholds to specify a percentage change in the readings that begins a new event
Features a large 50,000 count, 1/4 VGA dot matrix display with white backlight
Stores up to 15,000 recorded events so you can save multiple logging sessions before PC download is necessary
Provides two-terminal 50 ohm range with 1 milliohm resolution, 10 mA source current, for measuring and comparing differences in motor winding resistance or contact resistance
Includes low pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment.
Provides LoZ Volts, a low impedance voltage function for eliminating ghost voltages Recommended when testing for absence or presence of live power
Features on-board help screens for measurement functions
Includes a real-time clock to automatically time stamp saved readings
Offers relative mode to remove test lead resistance from low ohms or capacitance measurements
Provides True-RMS AC voltage and current for accurate measurements on non-linear signals
Measures up to 10 A (20 A for 30 seconds)
Provides up to 100 mF capacitance range
Records transients as fast as 250 µs with peak capture
Includes premium test leads, alligator clips, and amp jack plugs
Offers optional magnetic hanger for easy setup and viewing while freeing your hands for other tasks
Works with optional FlukeView forms to enable you to document, store and analyze individual readings or a series of measurements, then convert them into professional-looking documents.
Includes a limited lifetime warranty.
- Share results with your team using ShareLive video call (requires ir3000 FC wireless connector [sold separately] and no-cost Fluke Connect mobile app).
- TrendCapture graphically displays logged data session to quickly determine whether anomalies may have occurred.
- Zoom on trend provides unprecedented ability to view and analyze TrendCapture data; zoom in up to 14 times.
- Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy.
- Low Pass filter for accurate voltage and frequency measurements at the same time on adjustable speed motor drives and other electrically noisy equipment.
- LoZ Volts. Low impedance voltage function for eliminating ghost voltages. Also recommended when testing for absence or presence of live power.
- Adjustable recording and auto hold thresholds, specify a percentage change in the readings that begins a new event.
- Large 50,000 count, 1/4 VGA dot matrix display with white backlight.
- Measure up to 10 A (20 A for 30 seconds).
- 100 mF capacitance range.
Product Specifications
-
Application/UsageElectrical Electronic/Electric Equipment Electromechanical Equipment
-
Battery ChemistryAlkaline
-
Battery SizeAA
-
Brand NameFluke
-
Depth2.4"
-
FeaturesBacklight Adjustable Recording
-
Height8.7"
-
Limited WarrantyLifetime
-
Manufacturer Part NumberFLUKE289
-
Measurement TypeAC Voltage DC Voltage Resistance Continuity Capacitance Frequency AC Current DC Current Temperature Duty Cycle
-
Package Contents289 True-RMS Industrial Logging Multimeter(1 pair) TL71 Test LeadsAC175 Alligator Clips6 x AA Batteries InstalledQuick Reference Guide
-
Product Model289
-
Product Name289 True-RMS Industrial Logging Multimeter
-
Product TypeMultimeter
-
Width4"
