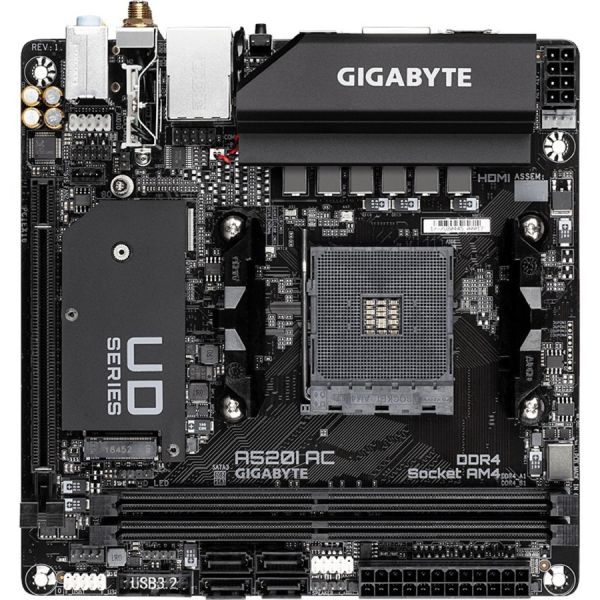

Gigabyte Ultra Durable A520I AC Desktop Motherboard - AMD A520 Chipset - Socket AM4 - Mini ITX
Product #:
ETLZ1064915609
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Gigabyte Ultra Durable A520I AC Desktop Motherboard - AMD A520 Chipset - Socket AM4 - Mini ITX
Ryzen 3, Ryzen 5, Ryzen 7, Ryzen 9, Ryzen 3 PRO, Ryzen 5 Pro, Ryzen 7 PRO, Ryzen 9 PRO Processor Supported - 64 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - IEEE 802.11a/b/g/n/ac - HDMI - DisplayPort - 4 x SATA Interfaces
AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard Intel 802.11ac WIFI, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus
Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
Direct 6 Phases Digital VRM Solution with 55A DrMOS
Ultra-Fast NVMe PCIe 3.0 x4 M.2
Onboard Intel Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable Antenna
GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management
DisplayPort, Dual HDMI for for Multiple Display
RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design
PERFORMANCE
Direct 6 Phases Digital VRM Solution with 55A DrMOS
A520I AC motherboard uses a Direct 6 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen processors.
Digital PWM Controller delivers appropriate voltage to the CPU.
Direct 6 Phases DrMOS, each power phase connects directly to the CPU. With capability to handle up to 330 Amps current in total.
All-solid capacitors to improve Transient response and minimize oscillation.
8pin Solid Pin CPU Power Connector.
The onboard 802.11ac WIFI module from Intel supports the Dual Band and up to 433 Mbps transition speed, 3x faster than 802.11n and also support BLUETOOTH 4.2.
The brand new of Ultra Durable Antenna supports Dual Band 802.11ax/ac 2.4GHz & 5GHz with 4dBi signal gained. It featured with better signal strength as compared to traditional antenna design and the magnetic base is the best design for signal strength direction and location.
Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
Dual HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth - twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.
Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
Direct 6 Phases Digital VRM Solution with 55A DrMOS
Ultra-Fast NVMe PCIe 3.0 x4 M.2
Onboard Intel Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable Antenna
GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management
DisplayPort, Dual HDMI for for Multiple Display
RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design
PERFORMANCE
Direct 6 Phases Digital VRM Solution with 55A DrMOS
A520I AC motherboard uses a Direct 6 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen processors.
Digital PWM Controller delivers appropriate voltage to the CPU.
Direct 6 Phases DrMOS, each power phase connects directly to the CPU. With capability to handle up to 330 Amps current in total.
All-solid capacitors to improve Transient response and minimize oscillation.
8pin Solid Pin CPU Power Connector.
The onboard 802.11ac WIFI module from Intel supports the Dual Band and up to 433 Mbps transition speed, 3x faster than 802.11n and also support BLUETOOTH 4.2.
The brand new of Ultra Durable Antenna supports Dual Band 802.11ax/ac 2.4GHz & 5GHz with 4dBi signal gained. It featured with better signal strength as compared to traditional antenna design and the magnetic base is the best design for signal strength direction and location.
Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
Dual HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth - twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.
- Ryzen 3 processors supported for faster, dependable performance and better access to data and information
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Supported 0 RAID levels provide data reliability and fault tolerance
- Enjoy the freedom of Wi-Fi and connect devices faster
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor
- With 2 USB 2.0 ports, transfer several documents without error
Need more information?
Ask a Question
Product Specifications
-
Audio Channels7.1
-
BluetoothYes
-
Brand NameGigabyte
-
Chipset ManufacturerAMD
-
Chipset ModelA520
-
Controller TypeSerial ATA/600
-
Country of OriginChina
-
Depth6.7"
-
DisplayPortYes
-
Form FactorMini ITX
-
Gigabit EthernetYes
-
HDMIYes
-
Manufacturer Part NumberA520I AC
-
Maximum Memory Supported64 GB
-
Memory Form FactorDIMM UDIMM
-
Memory TechnologyDDR4 SDRAM
-
Number of Memory Slots2
-
Number of Network (RJ-45) Ports1
-
Number of Onboard USB 2.0 Ports2
-
Number of Onboard USB 3.2 Ports2
-
Number of PCI Express x16 Slots1
-
Number of SATA Interfaces4
-
Number of USB 2.0 Ports2
-
Number of USB 3.2 Gen 1 Ports4
-
Onboard VideoCPU Dependent Video
-
Processor SocketSocket AM4
-
Processor SupportedRyzen 3 Ryzen 3 PRO Ryzen 5 Ryzen 5 Pro Ryzen 7 Ryzen 7 PRO Ryzen 9 Ryzen 9 PRO
-
Product LineUltra Durable
-
Product ModelA520I AC
-
Product NameUltra Durable A520I AC (rev. 1.x) Desktop Motherboard
-
Product TypeDesktop Motherboard
-
RAID Levels0 1 10
-
RAID SupportedYes
-
Total Number of Expansion Slots1.0
-
Total Number of Onboard USB Ports4
-
Total Number of PCI Express Slots1
-
Total Number of USB Ports6
-
Total Processor Supported1
-
Width6.7"
-
Wireless LANYes
-
Wireless LAN StandardIEEE 802.11a/b/g/n/ac
