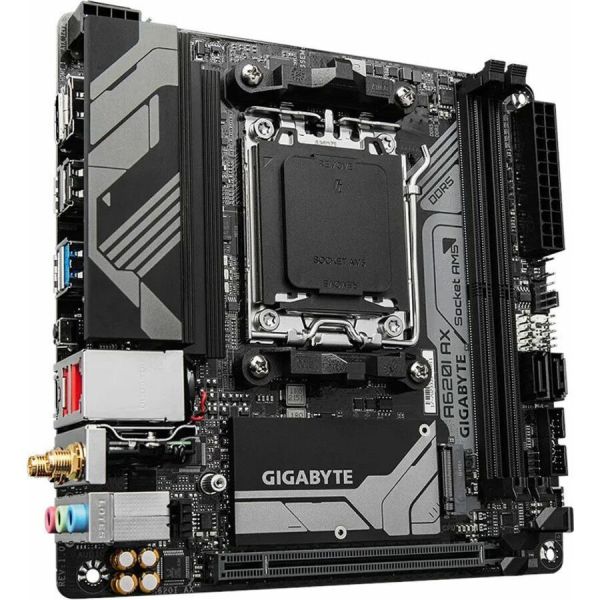

GIGABYTE Ultra Durable A620I AX Gaming Desktop Motherboard - AMD A620 Chipset - Socket AM5 - Mini ITX
Product #:
ETLZ1077720951
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
GIGABYTE Ultra Durable A620I AX Gaming Desktop Motherboard - AMD A620 Chipset - Socket AM5 - Mini ITX
Ryzen 7, Ryzen 5 Processor Supported - 96 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 2 x SATA Interfaces
Durable Performance
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design 5+2+1 Phases Digital VRM Solution with Low RDS(on) MOSFETs
GIGABYTE UD series motherboards use a 5+2+1 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
EXPO & XMP Support DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond
GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO/ Intel XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!
STEP 1:Plug 24pin & 8pin power supply cable on motherboard
STEP 2:Download motherboard BIOS file and rename to ""gigabyte.bin"" , save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
STEP 3:Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
High Current Support:Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Precision Control:Multiple temperature/fan speed control points for precise fan curve
Dual Curve Mode:Slope/Stair dual mode for different user scenario
Fan Stop:Fan can stop completely below users' specified temperature point
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design 5+2+1 Phases Digital VRM Solution with Low RDS(on) MOSFETs
GIGABYTE UD series motherboards use a 5+2+1 phases digital PWM + Low RDS(on) MOSFETs design to support AMD's new generation CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
EXPO & XMP Support DDR5 EXPO & XMP Overclocking Up to 6400 and Beyond
GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 6400 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO/ Intel XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don't need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you're good to go!
STEP 1:Plug 24pin & 8pin power supply cable on motherboard
STEP 2:Download motherboard BIOS file and rename to ""gigabyte.bin"" , save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
STEP 3:Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.
Cooling Features
High Current Support:Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
Precision Control:Multiple temperature/fan speed control points for precise fan curve
Dual Curve Mode:Slope/Stair dual mode for different user scenario
Fan Stop:Fan can stop completely below users' specified temperature point
- AMD Socket AM5?Supports AMD Ryzen 7000/ Ryzen 8000 Series Processors
- Unparalleled Performance?5+2+1 Phases Digital VRM Solution
- Dual Channel DDR5?2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- SuperSpeed Storage?PCIe 4.0 x4 M.2 Connector
- EZ-Latch?PCIe x16 Slot with Quick Release Design
- Fast Networks?Wi-Fi 6E 802.11ax & 2.5GbE LAN
- Extended Connectivity?DP, HDMI
- Smart Fan 6?Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus?Update BIOS Without Installing the CPU, Memory and Graphics Card
- Ryzen 7 processors supported for faster, dependable performance and better access to data and information
- With DDR5 SDRAM get efficient data transfer rate and enhanced computer's performance
- RAID supported levels provide data reliability and fault tolerance
- IEEE 802.11 a/b/g/n/ac/ax wireless standard support enables a hassle-free peripheral connection
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor
- 3 USB 2.0 ports offer the impressive data transfer speed of up to 60 Mb/sec
Need more information?
Ask a Question
Product Specifications
-
Audio Channels7.1
-
BluetoothYes
-
Bluetooth StandardBluetooth 5.3
-
Brand NameGIGABYTE
-
Chipset ManufacturerAMD
-
Chipset ModelA620
-
Controller TypeSerial ATA/600
-
Depth6.7"
-
DisplayPortYes
-
Form FactorMini ITX
-
Gigabit EthernetYes
-
Graphics Controller ModelRadeon Graphics
-
HDMIYes
-
HDMI Version2.1
-
Manufacturer Part NumberA620IAX
-
Maximum Memory Supported96 GB
-
Memory Form FactorDIMM UDIMM
-
Memory Speed Supported6400 MHz 6200 MHz 6000 MHz 5600 MHz 5400 MHz 5200 MHz 4800 MHz 4400 MHz
-
Memory TechnologyDDR5 SDRAM
-
Number of M.2 Interfaces1
-
Number of Memory Slots2
-
Number of Network (RJ-45) Ports1
-
Number of PCI Express x16 Slots1
-
Number of SATA Interfaces2
-
Number of USB 2.0 Ports3
-
Onboard VideoCPU Dependent Video
-
PCI Express StandardPCI Express 4.0
-
Processor SocketSocket AM5
-
Processor SupportedRyzen 7 Ryzen 5
-
Product LineUltra Durable
-
Product ModelA620I AX
-
Product NameUltra Durable A620I AX Gaming Desktop Motherboard
-
Product TypeGaming Desktop Motherboard
-
RAID Levels0 1
-
RAID SupportedYes
-
Total Number of Expansion Slots1.0
-
Total Number of Onboard USB Ports5
-
Total Number of PCI Express Slots1
-
Total Number of USB Ports6
-
Total Processor Supported1
-
Width6.7"
-
Wireless LANYes
-
Wireless LAN StandardIEEE 802.11 a/b/g/n/ac/ax
