Kramer RS-232 to Open End Control Cable
Product #:
ETLZ1061160340
$8.79
Loading...
Product Description

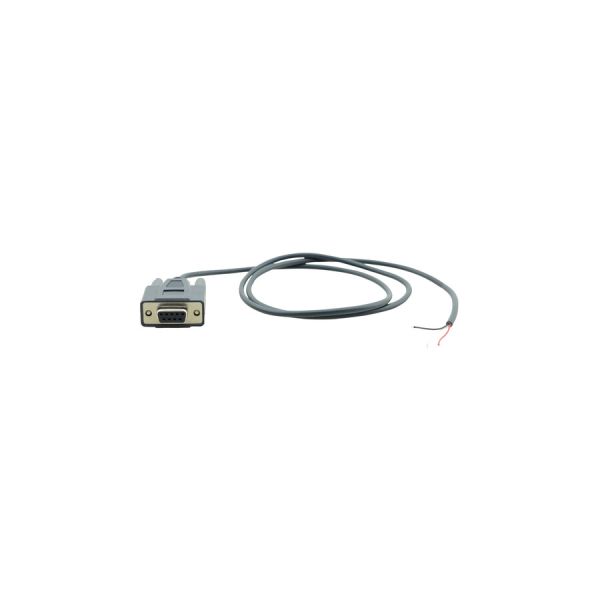

Kramer RS-232 to Open End Control Cable
Bare Wire/Serial Data Transfer Cable for PC, Touch Panel, Audio/Video Device, Serial Controller - First End: 1 x 9 - pin DB-9 RS-232 Serial - Female - Nickel Plated Connector - 28 AWG - Gray, Red, White, Black
Kramer's C-D9F/OPEN control cables are for RS-232 applications to control devices within a professional AV system. Many Kramer products are RS-232 controllable and equipped with terminal block connector. This RS-232 cable helps to connect them safely to transmit the RS-232 serial commands to a touch-screen system, PC, or other serial controller equipped with D9 connector.
Quality Construction - Constructed using three 28AWG isolated conductors, terminated with a molded female 9-pin D-sub connector, nickel plated on one side and open end, non-terminated, on the second side.
Pinout - Wired pin to pin on pins 2, 3 & 5.
Molded Strain Relief.
Stripped & Tinned Wires - At open end.
RoHS Compliant.
Varied Selection of Lengths - 3 to 50ft (1 to 15m).
Quality Construction - Constructed using three 28AWG isolated conductors, terminated with a molded female 9-pin D-sub connector, nickel plated on one side and open end, non-terminated, on the second side.
Pinout - Wired pin to pin on pins 2, 3 & 5.
Molded Strain Relief.
Stripped & Tinned Wires - At open end.
RoHS Compliant.
Varied Selection of Lengths - 3 to 50ft (1 to 15m).
- Allows easy connection between devices and helps transfer data quickly with accuracy
- Features Bare Wire/Serial cable type for optimal performance and better dependability
- Molded feature for better reliability and ensure maximum productivity
- PC device supported according to your requirements with maximum productivity
Loading...
Product Specifications
-
Brand NameKramer
-
Cable Length6 ft
-
Cable TypeBare Wire/Serial
-
Color DetailsPinout - Red, White, Black
-
Connector Type on First EndDB-9 RS-232 Serial - Female
-
Connector Type on Second EndBare Wire
-
Connector on First End Details1 x 9 - pin DB-9 RS-232 Serial - Female
-
Country of OriginChina
-
Device SupportedAudio/Video Device PC Serial Controller Touch Panel
-
Environmental CertificationRoHS
-
Environmentally FriendlyYes
-
FeaturesMolded Strain Relief
-
Limited Warranty7 Year
-
Manufacturer Part Number95-0210006
-
Material DetailsTinned Copper - Conductor
-
Number of Conductors3
-
Product ColorBlack Gray Red White
-
Product MaterialTinned Copper
-
Product ModelC-D9F/OPEN-6
-
Product NameRS-232 to Open End Control Cable
-
Product TypeData Transfer Cable
