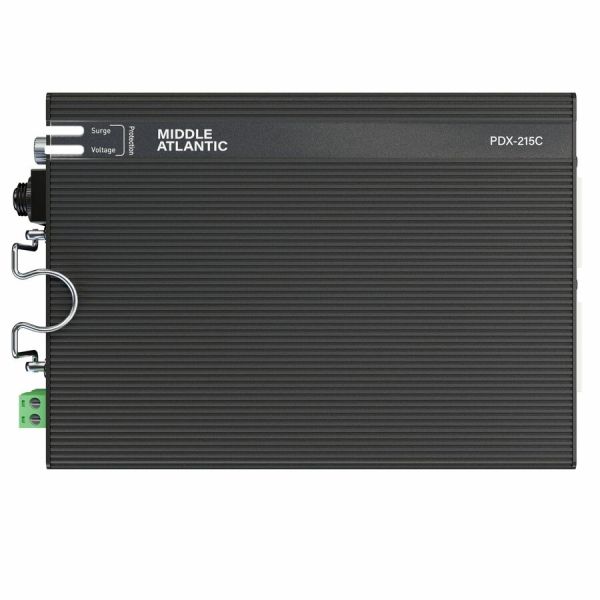

Middle Atlantic NEXSYS Compact Power Distribution Unit - 15 Amp, 2 Outlet PDU - Multi-Stage Surge Protection
Product #:
ETLZ1077252420
Product Description
Middle Atlantic NEXSYS Compact Power Distribution Unit - 15 Amp, 2 Outlet PDU - Multi-Stage Surge Protection
NEMA 5-15P - 2 x NEMA 5-15R - 120 V AC - 0U - Rack-mountable, Wall-mountable - Rack
The Middle Atlantic PDX-215C is a compact NEXSYS PDU designed for 'behind-the-display' applications, particularly digital signage. It features (2) NEMA 5-15R outlets and operates at 15A. The PDU offers flexible mounting options with both clamp and L-brackets, which can be easily attached to a Lever Lock plate for tool-free installation inside a rack, kiosk, or in-wall box. It includes multi-stage MOV surge protection with 3 stages and visual indicators of surge status on the front and side. The selectable on/off voltage protection from the dry contact port helps safeguard sensitive equipment from over/under voltage scenarios by automatically turning off the outlets during such events and restoring them once the power is within the acceptable range. The PDU also supports cleaner cable management with a standard 2ft power cord and allows for the use of both outlets without obstruction, thanks to the orientation designed for easier plugging of DC transformers (wall warts).
- 15A with (2) NEMA 5-15R Outlets
- Oh Snap! It's Compact!
- The compact design of this NEXSYS PDU is perfect for "behind-the-display" applications, especially digital signage.
- It's very flexible.
- The NEXSYS Compact PDU includes (2) mounting options for mounting flexibility, a clamp and L-brackets.
- Easily attach both mounting solutions to a Lever Lock™ plate for tool-free mounting inside a rack, kiosk, in-wall box, etc.
- Multi-stage MOV surge protection
- 3 stages of surge protection
- Visual Indicators of surge status on the front and side of the PDU
- Worried about the under/over voltage? Don't.
- With the selectable on/off voltage protection from the dry contact port, it gives the option to protect sensitive equipment from over/under voltage scenarios.
- If the voltage protection is on and an over or under voltage event happens the outlets will automatically be turned off to protect the equipment. Once the power restores within the acceptable voltage range the PDU will automatically turn the outlets back on.
- IEC Inlet:
- Allows for cleaner cable management by selecting your desired length of power cord.
- A standard 2' cord is included with all models
- Tired of blocked outlets?
- You pay for 2 outlets and we think you should be able to use all 2 outlets! The outlets are oriented for easier plugging of DC transformers (wall warts) eliminating blocked outlets.
- Provide circuit protection and easy configuration for trouble-free access
- NEMA 5-15R receptacle type to ensure maximum dependability and optimal performance
- NEMA 5-15P plug/connector type for better, dependable connectivity and desired power output
- 120 V AC input voltage for maximum feasibility and added productivity
- 120 V AC output voltage for better reliance and maximum usability
Loading...
Product Specifications
-
Brand NameMiddle Atlantic
-
Country of OriginMalaysia
-
Depth6.5"
-
FeaturesCompact
-
Form FactorRack
-
Height1.7"
-
Input Current15 A
-
Input Voltage120 V AC
-
Limited Warranty3 Year
-
Manufacturer Part NumberPDX215C
-
Mount TypeRack-mountable Wall-mountable
-
Output Voltage120 V AC
-
Package ContentsNEXSYS Compact Power Multi-Stage Surge Protection - PDX-215C Clamp L-brackets Standard 2' Cord
-
Plug/Connector TypeNEMA 5-15P
-
Product LineNEXSYS
-
Product ModelPDX-215C
-
Product NameNEXSYS Compact Power Distribution Unit - 15 Amp, 2 Outlet PDU
-
Product TypePDU
-
Protection TypeSurge Protection
-
Rack Height0U
-
Receptacle Detail2 x NEMA 5-15R
-
Receptacle TypeNEMA 5-15R
-
Width4.6"
