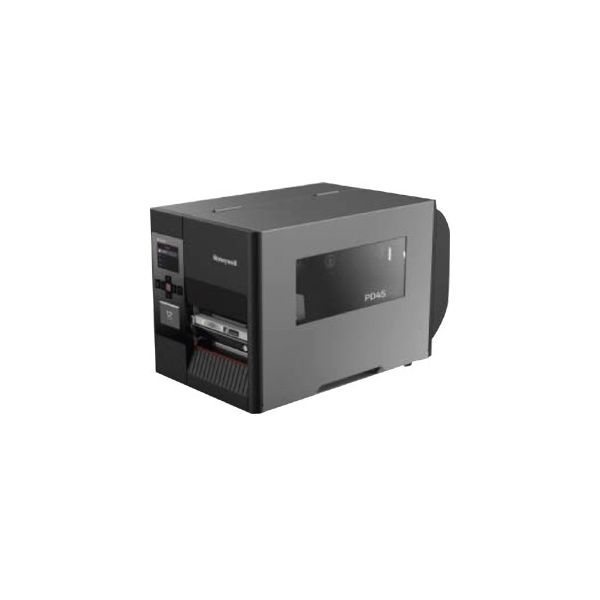

Honeywell PD4500B Industrial, Retail, Healthcare, Manufacturing, Transportation & Logistic Thermal Transfer Printer - Monochrome - Label Print - USB - USB Host - Serial
Product #:
ETLZ1071526731
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Honeywell PD4500B Industrial, Retail, Healthcare, Manufacturing, Transportation & Logistic Thermal Transfer Printer - Monochrome - Label Print - USB - USB Host - Serial
15.75" Print Length x 4.25" Print Width - 7.87 in/s Mono - 203 dpi - 4.49" Label Width - ZPL II, ZSim2, IPL, DPL, Direct Protocol (DP), Fingerprint, FP, ZPL Emulation - For PC
The PD45 is Honeywell's new commercial grade industrial printer, which is suited for manufacturing, retail, transportation & logistics, health care, and government applications. The PD45 is available with standard features such as smart printing capability, in which users can configure and fine-tune settings without the need for a host computer by running apps right inside the printer - minimizing the need to connect to a PC. With Honeywell print platform that supports multiple print languages, PD45 can be an effective alternative to the competing printers available in the market.
Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45 is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications. A large glass window design allows users to easily monitor the status of the printer and its consumables. A side opening makes it convenient for ribbon and paper loading.
The PD45 runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDR AM. It features a sophisticated industrial print head which supports
both direct thermal and thermal transfer printing modes. Honey well's patented dual sensor positioning technology supports a dynamic positioning function that
ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and a double media guides ensures accurate
paper feeding and help to avoid ribbon wrinkles & printing dirt.
Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45 supports multiple printer command languages such as FP/DP/IPL /ZPL /DPL, one-key installation of printer driver and easy windows configuration.
Uniquely designed using minimum internal mechanical parts and an all-metallic frame structure, PD45 is sturdy and durable. This gives our printer a tough, compact, and sleek appearance, suitable for use in a wide range of settings & applications. A large glass window design allows users to easily monitor the status of the printer and its consumables. A side opening makes it convenient for ribbon and paper loading.
The PD45 runs on Arm Cortex-A7 / 800Mhz processor, 128M memory and 128M DDR3 SDR AM. It features a sophisticated industrial print head which supports
both direct thermal and thermal transfer printing modes. Honey well's patented dual sensor positioning technology supports a dynamic positioning function that
ensures a minimum label height of 5mm and vertical position accuracy of 0.5mm. Two sets of adjustable pressure bars and a double media guides ensures accurate
paper feeding and help to avoid ribbon wrinkles & printing dirt.
Thanks to a very ergonomic design, the print head can be easily switched out and replaced. The front sensor that ensures accurate printing can also be easily removed to facilitate cleaning and replacement of the rubber roller. The PD45 supports multiple printer command languages such as FP/DP/IPL /ZPL /DPL, one-key installation of printer driver and easy windows configuration.
- Thermal Transfer Printer is a reliable label/receipt printing solution with maximum efficiency
- 203 maximum print resolution (dpi) offers great dependability with added efficiency
- Monochrome print color capability for rich in detail, sharp, and clear printing results
- Delivers high-speed, hassle-free labeling solution for your business needs
- 4.49" maximum label width for dependable, desired results
- Supports label media type for dependable, efficient results with maximum productivity
- Can be conveniently used for printing replacement shelf labels and tags to facilitate your retail operations
- Ergonomic feature for better reliance and usability
Product Specifications
-
Application/UsageHealthcare Industrial Manufacturing Retail Transportation & Logistic
-
Barcode Symbology Supported1D 2D AIAG GM1724 HIBCC ISBT-128 MH10.8 OGMARS POSTNET UCC/EAN 128 Serial Shipping Container UPC/EAN Shipping Container
-
Brand NameHoneywell
-
Depth17.2"
-
FeaturesCompact Ergonomic Rugged
-
Height10.6"
-
Language EmulationDirect Protocol (DP) DPL Fingerprint FP IPL ZPL ZPL II ZSim2
-
Manufacturer Part NumberPD4500B0030000200
-
Maximum Label Width4.49"
-
Maximum Mono Print Speed7.87 in/s
-
Maximum Print Length15.75"
-
Maximum Print Resolution (dpi)203
-
Maximum Print Width4.25"
-
Maximum Roll Diameter3.15"
-
Media SensorBlack Mark Sensor Gap Sensor
-
Media Thickness8.82 mil
-
Media TypeContinuous Label Continuous Paper Label Notch Tag
-
Operating Relative Humidity20% - 85%
-
Operating Temperature41°F (5°C) - 104°F (40°C)
-
Optional ConnectivityWireless LAN
-
Platform SupportedPC
-
Power SourceAC Supply
-
Print TechnologyThermal Transfer
-
Product ModelPD4500B
-
Product NamePD4500B Icon Model Direct Thermal and Thermal Transfer Printer No Power Cord
-
Product TypeThermal Transfer Printer
-
Recommended UseLabel Print
-
Serial PortYes
-
Storage Temperature-4°F (-20°C) - 158°F (70°C)
-
USBYes
-
USB HostYes
-
Width9.8"
