Shuttle XH410G Barebone System - Socket LGA-1200 - 1 x Processor Support
Product #:
ETLZ1066862387
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

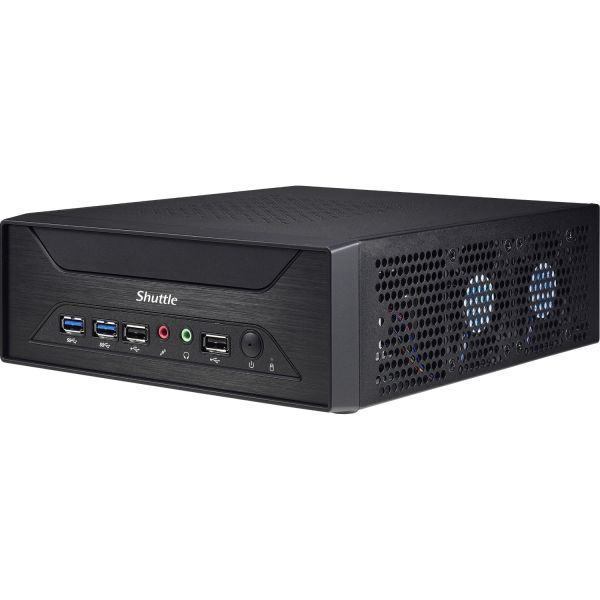

Shuttle XH410G Barebone System - Socket LGA-1200 - 1 x Processor Support
Intel H410 Express Chip - 64 GB DDR4 SDRAM DDR4-2933/PC4-23466 Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600 Controller - 1 2.5" Bay(s) - Processor Support (Core i3, Core i5, Core i7, Core i9, Pentium, Celeron) - Gigabit Ethernet - 4 USB 3.2 Gen 1 Port(s) - 180 W
3-liter mini-PC with a PCIE x16 slot enables more functionality
The new XH410G is built with performance and expandability in mind. Powered by the Intel H410 chipset and the 10th Gen LGA1200 Comet Lake 65W CPU, the XH410G can deliver reliable and high performance on complex tasks processing and 4K resolution content. Equipped one HDMI 2.0 and VGA, the XH410G supports dual independent displays, providing high productivity and dynamic visualization for digital signage and surveillance monitoring. With one PCI-E x16 expansion slot, it's able to install an extra graphics card, capture card, or more to meet the diverse application requirements. The XH410G provides multiple I/O ports, including 4xUSB 2.0, 4xUSB 3.2 Gen1, SATA 6Gbps, 2xM.2, and Intel Gigabit LAN. As stated above, XH410G is suitable for the workstation, surveillance, and video wall applications.
Intel 10th Gen processors and 4K/UHD Visuals
Based on the new H410 chipset, the XH410G is ready for Intel 10th Gen processors in the LGA1200 package. With up to 10 cores of processing power, the platform supports up to 64GB (32GBx2) of DDR4 memory for multi-task computing. Equipped with Intel UHD Graphics, the XH410G is capable of driving content that is fluent and stutter-free in 4K UHD.
Dual Display Productivity
With one HDMI 2.0 and VGA outputs built-in, the XH410G supports dual independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.
Single PCIE x16 Slot
With built-in a PCI-E x16 expansion slot, the XH410G is able to install a various add-on cards such as graphics card (multi-display), capture card, multi-network card, drawing graphics card for various applications.
Strong Expansion Capacity with M.2
With native M.2 2280 Type M and one M.2 2230 Type E slot, the XH410G offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
Rich Connectivity Interfaces
The XH410G provides 4xUSB 2.0, 4xUSB 3.2 Gen 1, and SATA 6Gbps. Besides, there's one RS232 for optional port, helping connect to peripherals such as thermal printer, automation, or barcode scanner.
High-Speed Gigabit LAN
The XH410G has built-in one Intel i219LM Gigabit LAN and supports Wake On LAN and Teaming Mode function to provide high-speed data transfer capability and thus a better business networking integration.
Exclusive Cooling Technology
The XH410G features Shuttle's exclusive heat-pipe cooling system with smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.
24/7 Certified, Operable in 0-50°C
Officially approved for 24/7 operation. The XH410G uses industrial capacitors in order to meet the environmental operation demands of commercial applications.
VESA Mount-Ready
The XH410G is VESA mount compliant and allows for versatile integration into hardware systems. This space-saving capability is well-suited for digital signage and kiosk applications with limited space.
Power on by RTC
Save energy costs as well as the cost of on-site service with Power-On by RTC function. Set automatic 'Power On' and 'Power Off' times by RTC via BIOS. Power on by RTC can also be turned on and off with the Windows task scheduler.
The new XH410G is built with performance and expandability in mind. Powered by the Intel H410 chipset and the 10th Gen LGA1200 Comet Lake 65W CPU, the XH410G can deliver reliable and high performance on complex tasks processing and 4K resolution content. Equipped one HDMI 2.0 and VGA, the XH410G supports dual independent displays, providing high productivity and dynamic visualization for digital signage and surveillance monitoring. With one PCI-E x16 expansion slot, it's able to install an extra graphics card, capture card, or more to meet the diverse application requirements. The XH410G provides multiple I/O ports, including 4xUSB 2.0, 4xUSB 3.2 Gen1, SATA 6Gbps, 2xM.2, and Intel Gigabit LAN. As stated above, XH410G is suitable for the workstation, surveillance, and video wall applications.
Intel 10th Gen processors and 4K/UHD Visuals
Based on the new H410 chipset, the XH410G is ready for Intel 10th Gen processors in the LGA1200 package. With up to 10 cores of processing power, the platform supports up to 64GB (32GBx2) of DDR4 memory for multi-task computing. Equipped with Intel UHD Graphics, the XH410G is capable of driving content that is fluent and stutter-free in 4K UHD.
Dual Display Productivity
With one HDMI 2.0 and VGA outputs built-in, the XH410G supports dual independent displays, providing productivity benefits and dynamic visualization for multitasking and digital signage applications.
Single PCIE x16 Slot
With built-in a PCI-E x16 expansion slot, the XH410G is able to install a various add-on cards such as graphics card (multi-display), capture card, multi-network card, drawing graphics card for various applications.
Strong Expansion Capacity with M.2
With native M.2 2280 Type M and one M.2 2230 Type E slot, the XH410G offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.
Rich Connectivity Interfaces
The XH410G provides 4xUSB 2.0, 4xUSB 3.2 Gen 1, and SATA 6Gbps. Besides, there's one RS232 for optional port, helping connect to peripherals such as thermal printer, automation, or barcode scanner.
High-Speed Gigabit LAN
The XH410G has built-in one Intel i219LM Gigabit LAN and supports Wake On LAN and Teaming Mode function to provide high-speed data transfer capability and thus a better business networking integration.
Exclusive Cooling Technology
The XH410G features Shuttle's exclusive heat-pipe cooling system with smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.
24/7 Certified, Operable in 0-50°C
Officially approved for 24/7 operation. The XH410G uses industrial capacitors in order to meet the environmental operation demands of commercial applications.
VESA Mount-Ready
The XH410G is VESA mount compliant and allows for versatile integration into hardware systems. This space-saving capability is well-suited for digital signage and kiosk applications with limited space.
Power on by RTC
Save energy costs as well as the cost of on-site service with Power-On by RTC function. Set automatic 'Power On' and 'Power Off' times by RTC via BIOS. Power on by RTC can also be turned on and off with the Windows task scheduler.
- With Intel Pentium processor, experience splendid PC performance; enjoy songs, movies and get your work completed concurrently
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Up to 10x faster than standard Ethernet connectivity and provides high-performance uplinks
- Featuring 8 USB ports to connect USB-compatible devices
- With Serial ATA/600 interface get superb reliability and high-speed data transfer
Product Specifications
-
64-bit ProcessingYes
-
Brand NameShuttle
-
Chipset ManufacturerIntel
-
Chipset ModelH410 Express
-
Controller TypeSerial ATA/600
-
Depth9.8"
-
Ethernet TechnologyGigabit Ethernet
-
HDMI (Rear)Yes
-
Height3.1"
-
Input Voltage120 V AC 230 V AC
-
Manufacturer Part NumberXH410G
-
Maximum Memory Supported64 GB
-
Maximum Power Supply Wattage180 W
-
Memory StandardDDR4-2933/PC4-23466
-
Memory TechnologyDDR4 SDRAM
-
Number of Internal 2.5" Bays1
-
Number of PCI Express x16 Slots1
-
Number of Processors Supported1
-
Number of Total Expansion Bays1
-
Number of Total Expansion Slots1
-
Number of Total Memory Slots2
-
Number of USB 3.2 Gen 1 Ports4
-
Operating System SupportedLinux Windows 10 x64
-
Processor SocketSocket LGA-1200
-
Processor SupportedCeleron Core i3 Core i5 Core i7 Core i9 Pentium
-
Product ModelXH410G
-
Product NameXH410G Barebone System
-
Product TypeBarebone System
-
Total Number of USB Ports8
-
Width7.9"
