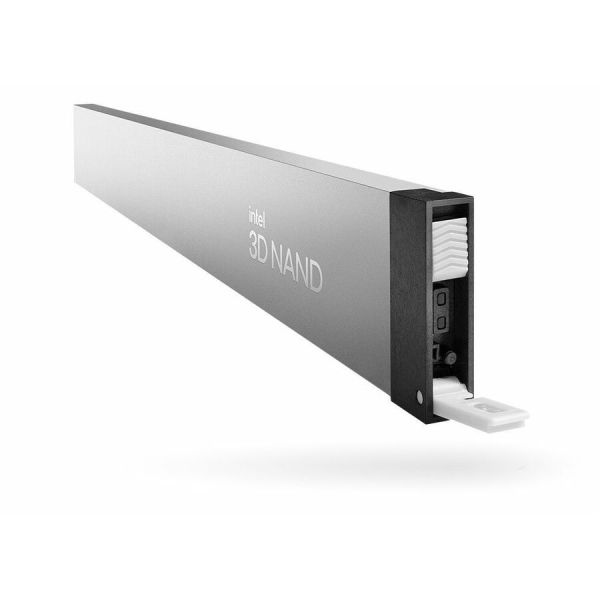

Solidigm SSD D5 P5316 Series (15.3TB, EDSFF L 9.5mm PCIe 4.0 x4, 3D4, QLC) Generic Single Pack
Product #:
ETLZ1072062116
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Solidigm SSD D5 P5316 Series (15.3TB, EDSFF L 9.5mm PCIe 4.0 x4, 3D4, QLC) Generic Single Pack
Server Device Supported - 0.41 DWPD - 53094.40 TB TBW - 7000 MB/s Maximum Read Transfer Rate - 256-bit AES Encryption Standard - 5 Year Warranty - 1 Pack - Bulk
Cloud inspired. | Storage optimized. | Combining the industry's first 144-layer QLC NAND and PCIe 4.0, the read-optimized Intel SSD D5-P5316 enables significant TCO savings while accelerating warm storage.
As data volume increases, storage becomes a growing challenge in terms of cost-effectiveness, physical footprint, and performance. Built with Intel's most advanced Quad-Level Cell NAND, the Intel SSD D5-P5316 addresses those challenges by delivering industry-leading SSD storage density with the high bandwidth performance of a PCIe 4.0 interface.
The Intel SSD D5-P5316 includes up to 30.72TB of capacity, and as an E1.L, provides up to 1 petabyte of storage in just 1U of rack space. The result is massive storage consolidation for lower TCO.
Unlock the value of stored data
Based on PCIe 4.0, the SSD D5-P5316 not only accelerates legacy HDD-based systems but also prior generation Intel SSD-based systems. Compared to HDDs, Intel's newest SSD can accelerate access to stored data by up to 25x1 while performance optimizations bring up to 2x higher sequential read performance, up to 38% higher random read performance, up to 48% better latency, and up to 5x higher endurance versus the previous generation Intel SSD family.
In addition to increased performance, the Intel SSD D5-P5316 offers storage footprint consolidation with up to 20x reduction of warm storage footprint.6 Storage consolidation enables further operational savings, including power consumption, cooling costs, drive replacement, and technician support.
Firmware enhancements for drive performance, IT efficiency, data security, and manageability
The Intel SSD D5-P5316 includes numerous firmware enhancements specifically optimized for both enterprise and cloud workloads to deliver better latency, expanded management capabilities, and critical new NVMe features.
NVMe 1.3c and NVMe-MI1.0a- compliant.
Scatter Gather List (SGL) removes the need to double-buffer host data.
Persistent Event Log exposes deeper drive history for debugging at scale.
Designed to enhance security with AES-256 Hardware Encryption, NVMe Sanitize, Firmware Measurement.
As data volume increases, storage becomes a growing challenge in terms of cost-effectiveness, physical footprint, and performance. Built with Intel's most advanced Quad-Level Cell NAND, the Intel SSD D5-P5316 addresses those challenges by delivering industry-leading SSD storage density with the high bandwidth performance of a PCIe 4.0 interface.
The Intel SSD D5-P5316 includes up to 30.72TB of capacity, and as an E1.L, provides up to 1 petabyte of storage in just 1U of rack space. The result is massive storage consolidation for lower TCO.
Unlock the value of stored data
Based on PCIe 4.0, the SSD D5-P5316 not only accelerates legacy HDD-based systems but also prior generation Intel SSD-based systems. Compared to HDDs, Intel's newest SSD can accelerate access to stored data by up to 25x1 while performance optimizations bring up to 2x higher sequential read performance, up to 38% higher random read performance, up to 48% better latency, and up to 5x higher endurance versus the previous generation Intel SSD family.
In addition to increased performance, the Intel SSD D5-P5316 offers storage footprint consolidation with up to 20x reduction of warm storage footprint.6 Storage consolidation enables further operational savings, including power consumption, cooling costs, drive replacement, and technician support.
Firmware enhancements for drive performance, IT efficiency, data security, and manageability
The Intel SSD D5-P5316 includes numerous firmware enhancements specifically optimized for both enterprise and cloud workloads to deliver better latency, expanded management capabilities, and critical new NVMe features.
NVMe 1.3c and NVMe-MI1.0a- compliant.
Scatter Gather List (SGL) removes the need to double-buffer host data.
Persistent Event Log exposes deeper drive history for debugging at scale.
Designed to enhance security with AES-256 Hardware Encryption, NVMe Sanitize, Firmware Measurement.
- Built on industry's first 144-layer QLC.
- Consolidate and accelerate warm storage.
- Enables up to 1PB of storage in just 1U.
- Same quality and reliability as TLC.
- Available in U.2 & E1.L form factor.
- Provides more productive performance and superior data storage for a variety of files
- Internal drive type to ensure maximum productivity with added feasibility
- With 15.36 TB capacity you have ample space for storing millions of images, hundreds of hours of video or for music lovers, up to a million songs
- With the stunning reading speed of 7000 MB/s, get faster boot times and improved overall computing performance
- Write speed of 3600 MB/s enables you to perform write-related tasks in seconds rather than minutes
- PCI Express NVMe 4.0 x4 interface for a speedy data transfer to ensure maximum efficiency
- 256-bit AES encryption to protect your precious and valuable data from unauthorized access
- E1.L form factor for your convenience and simplicity of usage
Product Specifications
-
Brand NameSOLIDIGM
-
Device SupportedServer
-
Drive InterfaceU.2
-
Drive TypeInternal
-
Encryption Standard256-bit AES
-
Endurance (DWPD)0.41
-
Endurance (TBW)53094.40 TB
-
Form FactorE1.L
-
Height0.4"
-
Limited Warranty5 Year
-
Manufacturer Part NumberSSDPFWNV153TZN1
-
Maximum Read Transfer Rate7000 MB/s
-
Maximum Write Transfer Rate3600 MB/s
-
Package TypeBulk
-
Product NameD5-P5316 Solid State Drive
-
Product SeriesD5-P5316
-
Product TypeSolid State Drive
-
Storage Capacity15.36 TB
-
Wireless LANNo
