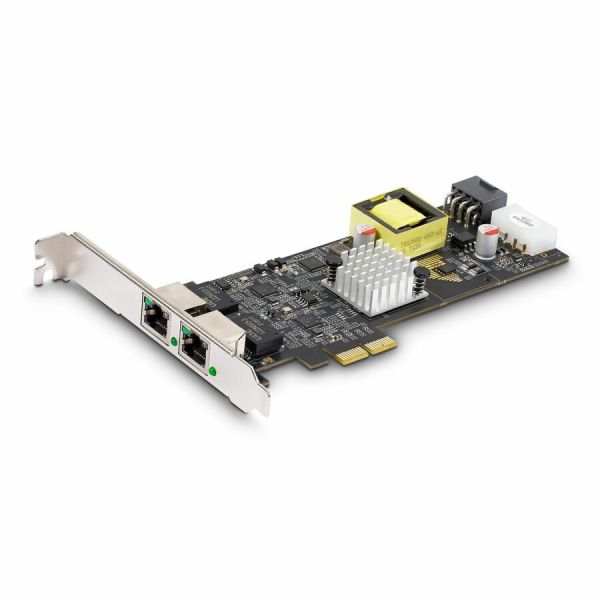

StarTech.com 2-Port 2.5Gbps PCI Express PoE Network Card, Dual Intel I225-V, PCIe 802.3af/at PoE+ Multi-Gigabit Ethernet NIC
Product #:
ETLZ1085502334
+1View All
$224.95
Loading...
Product Description
StarTech.com 2-Port 2.5Gbps PCI Express PoE Network Card, Dual Intel I225-V, PCIe 802.3af/at PoE+ Multi-Gigabit Ethernet NIC
2-port 2.5Gbps PoE network card w/Intel I225V; 802.3af/at PoE+ up to 30W PSE and 25.5W PD per port at 48V DC; NBASE-T, Multi-Gigabit Ethernet, Intel vPro, PXE boot, PCI Express 2.0; Incl. low-profile bracket; Supports Windows/Linux/VMware ESXI
This 2.5 GbE network interface card (NIC) features dual Intel I225-V chipsets with Intel vPro technology to enhance performance and data integrity. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing CAT5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.
Power Over Ethernet
The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48V DC and 25.5W of power per port to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power supplies or PoE injectors for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.
Increased Network Speed
The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware
The network interface card connects through an available PCI Express x2 2.0 (or higher) expansion slot. The card ships with a standard-profile bracket pre-installed and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, VMware, and Linux.
This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9K jumbo frame, full-duplex, and Intel vPro technology.
Power Over Ethernet
The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48V DC and 25.5W of power per port to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power supplies or PoE injectors for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.
Increased Network Speed
The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware
The network interface card connects through an available PCI Express x2 2.0 (or higher) expansion slot. The card ships with a standard-profile bracket pre-installed and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, VMware, and Linux.
This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9K jumbo frame, full-duplex, and Intel vPro technology.
- 2.5Gigabit Ethernet Card offers maximum efficiency and usability
- This 1000 MB/s bandwidth PCI Express 2.0 x2 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
- For high bandwidth connectivity, add this efficient dual port 2.5gigabit ethernet card to your server or workstation
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- 2.5GBase-T network technology for convenient, easy sharing of data and information with maximum feasibility
Loading...
Product Specifications
-
Application/UsageNetwork Server IP Camera Wireless Access Point Desktop IP Phone
-
Brand NameStarTech.com
-
Chipset ManufacturerIntel
-
Chipset ModelI225-V
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
FeaturesJumbo Frames Support PXE Support Wake on LAN (WOL) VLAN Tagging
-
Form FactorPlug-in Card
-
Height0.8"
-
Host InterfacePCI Express 2.0 x2
-
Limited Warranty2 Year
-
Manufacturer Part NumberPR22GIP-NETWORK-CARD
-
Maximum Data Transfer Rate2.50 Gbit/s
-
Maximum Operating Humidity (Non-condensing)5%
-
Media Type SupportedTwisted Pair
-
Minimum Operating Humidity (Non-condensing)90%
-
Network Technology2.5GBase-T
-
Number of Network (RJ-45) Ports2
-
Operating System CompatibilityWindows 10 Windows 11 Windows Server 2019 Windows Server 2002 VMware ESXi 7.0 Linux 5.8 Windows Server 2022
-
Package Contents2.5Gigabit Ethernet Card1 x Low Profile Bracket1 x Quick-Start Guide
-
Product Name2.5Gigabit Ethernet Card
-
Product Type2.5Gigabit Ethernet Card
-
Total Number of Ports2
-
Width4.8"
