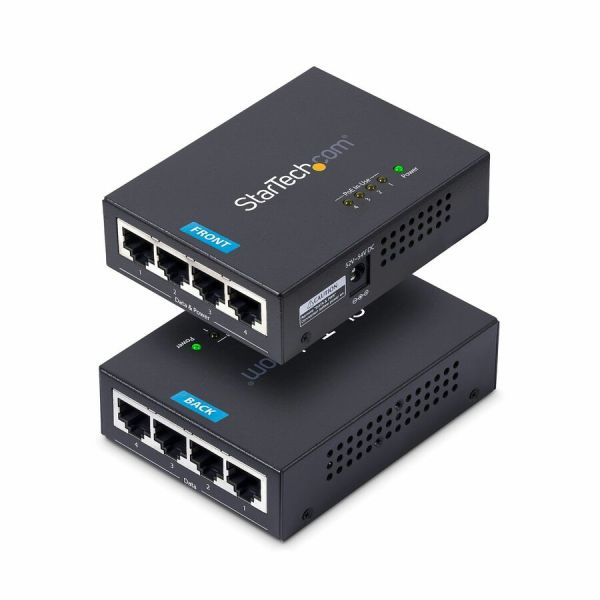

StarTech 4-Port Gigabit Midspan, PoE+ Injector, 802.3at & 802.3af, Wall-Mountable Power over Ethernet Midspan, TAA Compliant
Product #:
ETLZ1085571287
Product Description
StarTech 4-Port Gigabit Midspan, PoE+ Injector, 802.3at & 802.3af, Wall-Mountable Power over Ethernet Midspan, TAA Compliant
Deliver power and data to four PoE-powered devices (PD) using this wall-mountable PoE+ midspan hub; 4-Port Gigabit Power over Ethernet Midspan; 802.3at & 802.3af; Wall-mountable Power over Ethernet Injector; Up to 30.8 Watts per port; Easy setup; TAA
This Gigabit midspan PoE+ injector is a cost-effective alternative to upgrading your existing network switch to a PoE-capable model.
It supplies up to 30 Watts output to each port, so you can easily power and access up to four high-power PoE-compliant devices - such as IP cameras - using standard Ethernet cable.
More power, with less cost and hassle
This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W of total power distribution and delivers full power - up to 30.8W - from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable.
Plus, the cost-effective Power over Ethernet+ injector lets you connect your PoE-powered devices (PDs) to a non-PoE-capable switch, avoiding the expense and aggravation of upgrading your existing switch to a PoE-enabled model.
Easy to set up in mixed environments
This injector is the perfect solution for a variety of environments. It features a wall-mountable rugged metal casing but is palm-sized making it perfect for desktop placement too.
With plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.
Convenient, protected connections
Not sure which class your PoE devices are? The Gigabit midspan PoE+ injector automatically detects the power requirements of your PoE PDs and delivers the appropriate level of power without damaging your devices.
With integrated circuit protection between each port, your devices are also protected from power interference.
It supplies up to 30 Watts output to each port, so you can easily power and access up to four high-power PoE-compliant devices - such as IP cameras - using standard Ethernet cable.
More power, with less cost and hassle
This versatile midspan PoE+ injector is suited for almost all PoE device classes, including wireless access points, as well as IP phones and cameras. The high-power PoE+ injector offers 120W of total power distribution and delivers full power - up to 30.8W - from each port. Now, you can easily scale and power your PoE+ devices across long distances, even in remote locations where a typical power outlet is unavailable.
Plus, the cost-effective Power over Ethernet+ injector lets you connect your PoE-powered devices (PDs) to a non-PoE-capable switch, avoiding the expense and aggravation of upgrading your existing switch to a PoE-enabled model.
Easy to set up in mixed environments
This injector is the perfect solution for a variety of environments. It features a wall-mountable rugged metal casing but is palm-sized making it perfect for desktop placement too.
With plug-and-play operation, you can enjoy fast and hassle-free setup without disrupting your workflow.
Convenient, protected connections
Not sure which class your PoE devices are? The Gigabit midspan PoE+ injector automatically detects the power requirements of your PoE PDs and delivers the appropriate level of power without damaging your devices.
With integrated circuit protection between each port, your devices are also protected from power interference.

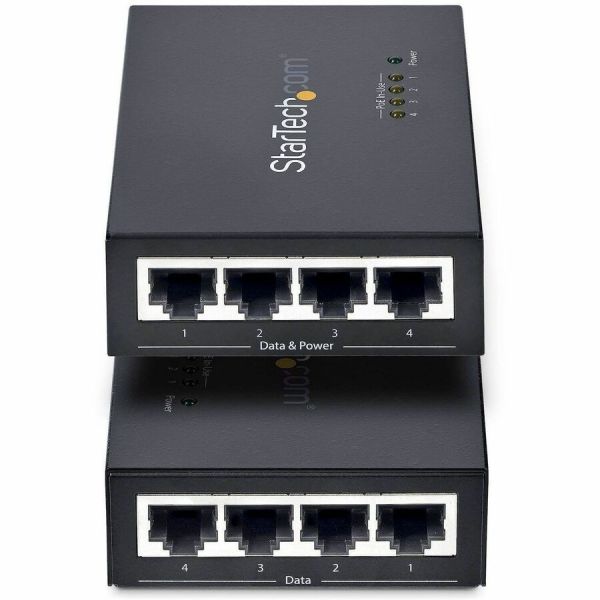

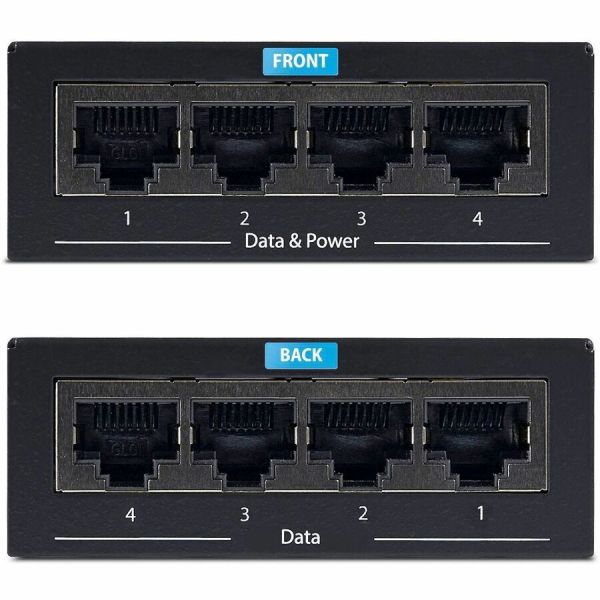

- 4-PORT GIGABIT PoE+ INJECTOR: Provides power and data to up to four PoE-enabled devices over an Ethernet connection; Supports Gigabit speeds with up to 30.8W(802.3at) or 15.4W (802.3af) per port, ensuring reliable performance for demanding applications
- AUTOMATIC SPEED & POWER NEGOTIATION: Supports auto-sensing between 10/100/1000Mbps, ensuring compatibility with a wide range of Powered Devices (PDs); Delivers power and data up to 328ft (100m) over existing Cat5e/6/6a cabling for flexible deployments
- PLUG-AND-PLAY: No software or configuration required; Connect to a network switch or router and power remote devices like IP cameras, access points (APs), and VoIP phones; Automatically detects and delivers the correct PoE level for each connected device
- FLEXIBLE & SPACE-SAVING DESIGN: Ideal for remote device installations where power outlets are limited; Wall-mountable for convenient access and clean cable management
- THE IT PRO'S CHOICE: Designed for reliability in edge and on-prem deployments, our solutions are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance
Loading...
Product Specifications
-
Brand NameStarTech.com
-
Certifications & StandardsCE FCC IEEE 802.3af PoE IEEE 802.3at PoE+ IEEE 802.3 (10BASE-T) IEEE 802.3u (100BASE-TX IEEE 802.3ab (1000BASE-T)
-
CompatibilityCompatible Devices: IP Cameras Wireless Access Points IP Phones Voip Phones PTZ Cameras Information Kiosk Touch Screens
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
-
Form FactorWall Mountable
-
Height1"
-
Input Ports4 x RJ-45
-
Input Voltage120 V AC 230 V AC
-
Length3.7"
-
Limited Warranty2 Year
-
Manufacturer Part NumberPOEINJ4G-US
-
Maximum Input Current2 A
-
Maximum Output Current2.40 A
-
Maximum Output Power120 W
-

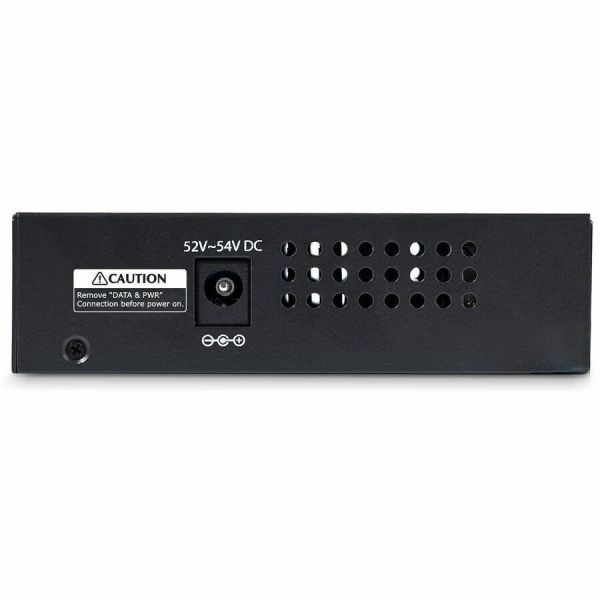

Maximum Output Voltage54 V DC
-
Output Ports4 x RJ-45
-

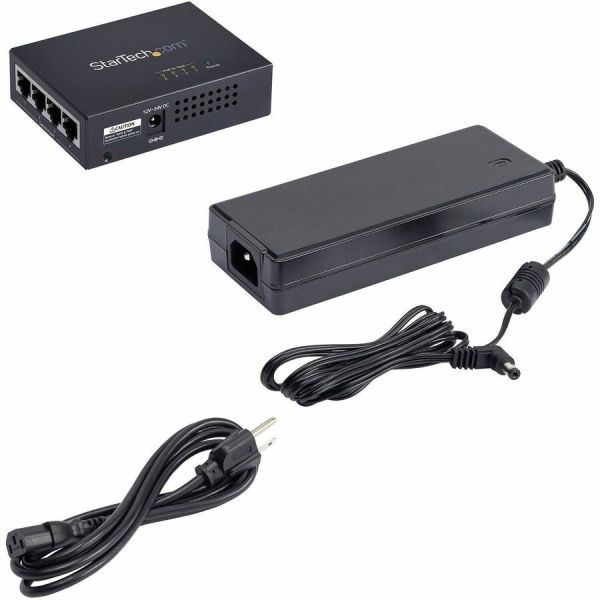

Package Contents120W PoE+ Injector 1 x Power Adapter 1 x Power Cord 1 x Quick-Start Guide
-
Product Name120W PoE+ Injector
-
Product TypePoE+ Injector
-
Protection TypeCircuit Protection
-
TAA CompliantYes
-
Width2.8"
