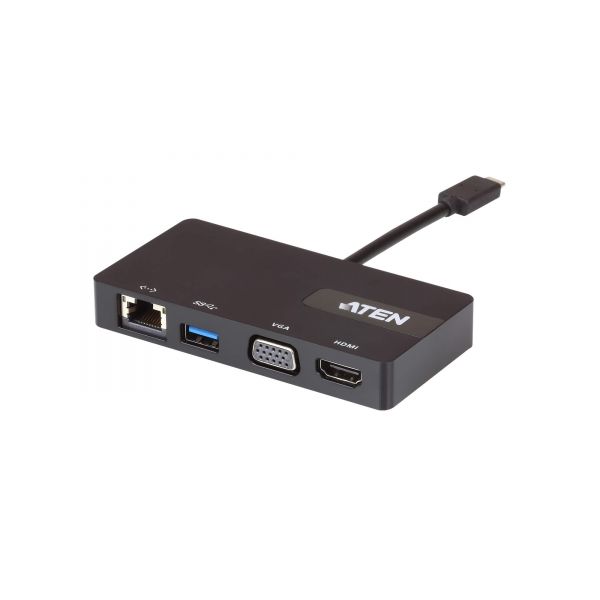

ATEN USB-C Multiport Mini Dock

for Desktop PC - 7.87 W - USB Type C - 1 x USB Ports - Network (RJ-45) - HDMI - VGA - Thunderbolt - Wired
Product Number: SYNX5166802
  • Connects a USB-C or Thunderbolt 3 computer to an HDMI/VGA, Ethernet and USB Type-A port via single cable
  • USB 3.1 Gen 1 port with data transfer rates up to 5 Gbps
  • Ethernet Gigabit LAN port
  • Supports HDMI 1.4b with 4K (3840 x 2160 @ 30 Hz) resolutions; or VGA with 2K (2048 x 1152 @ 60 Hz) resolutions
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items above to see if a replacement product is available.

Product Description

ATEN USB-C Multiport Mini Dock - The UH3232 USB-C Multiport Mini Dock connects a USB-C computer to an Ethernet, HDMI, VGA and USB Type-A port- through a single cable. The UH3232 features an integrated and easy-to-use connector that instantly links your USB-C or Thunderbolt 3 computer to an HDMI 4K Ultra HD (3840 x 2160 @ 30 Hz) or VGA 2K (2048 x 1152 @ 60 Hz) video output, USB 3.1 Gen 1 port, and Gigabit Ethernet port for fast desktop docking. The 6-layer PCBA design reduces signal distortion and interference for uninterrupted video that is always crisp and sharp, while the Gigabit Ethernet port delivers Internet speeds up to 1000 Mbps. This convenient and versatile dock offers a perfect portable solution for connecting multiple sources to a USB-C enabled computer - quickly.
This small, portable, and travel friendly dock gives you more desktop space wherever you are and makes connecting to multiple devices easy. With ATEN's UH3232, you can travel lighter, connect faster and work more effective, anywhere.
More from the Manufacturer

  • Connects a USB-C or Thunderbolt 3 computer to an HDMI/VGA, Ethernet and USB Type-A port via single cable
  • USB 3.1 Gen 1 port with data transfer rates up to 5 Gbps
  • Ethernet Gigabit LAN port
  • Supports HDMI 1.4b with 4K (3840 x 2160 @ 30 Hz) resolutions; or VGA with 2K (2048 x 1152 @ 60 Hz) resolutions
  • Supports Windows 10 (32-bit / 64-bit), Mac OSX Yosemite 10.10.5 and higher, OS X El Capitan 10.11 and higher
  • Lightweight design - for easy transport
Related Articles
 Need more information? Ask a Question
Read More

Product Specifications

  • Brand Name
    ATEN
  • Connectivity Technology
    Wired
  • Country of Origin
    China
  • Device Supported
    Desktop PC
  • Environmentally Friendly
    Yes
  • HDMI
    Yes
  • Height
    0.60"
  • Host Interface
    USB Type C
  • Length
    6.3"
  • Limited Warranty
    2 Year
  • Manufacturer Part Number
    UH3232
  • Maximum Power Supply Wattage
    7.87 W
  • Network (RJ-45)
    Yes
  • Package Contents
    UH3232 USB-C Multiport Mini Dock 1 x User Instructions
  • Product Model
    UH3232
  • Product Name
    USB-C Multiport Mini Dock
  • Product Type
    Docking Station
  • Thunderbolt
    Yes
  • Total Number of USB Ports
    1
  • VGA
    Yes
  • Width
    4.25"
