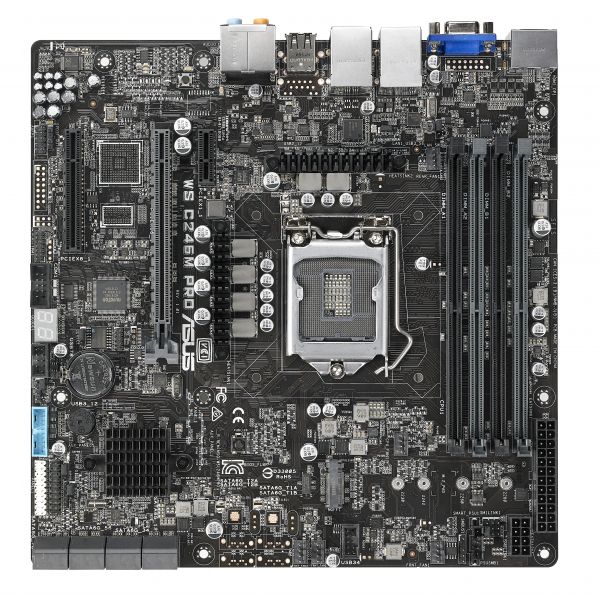

Asus WS C246M PRO Workstation Motherboard - Intel Chipset - Socket H4 LGA-1151

64 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 2 x USB 3.0 Port - 2 x USB 3.1 Port - HDMI - 8 x SATA Interfaces
Product Number: IGRM5PL918
  • Compatible Intel Core i3 processor is smart and responsive, which lets you use multiple applications without any lag
  • DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
  • With 2 USB 3.0 port(s), data can be moved from your workstation to your device in fragments of a second
  • HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items below to see if a replacement product is available.

Product Description

Asus WS C246M PRO Workstation Motherboard - Intel Chipset - Socket H4 LGA-1151 - Compact, rack-optimized Intel LGA1151 micro-ATX motherboard with M.2, USB 3.1 Gen2 connectors and dual Gigabit LAN
Rack-optimized design for better cooling efficiency and stability
Supports up to three independent displays simultaneously via HDMI, DisplayPort and VGA
Accelerated data-transfer speeds of up to 32Gbps with M.2
Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
Dual Intel Gigabit LAN with teaming support
ASUS Control Center - A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses
Rack-optimized design for better cooling efficiency
WS C246M PRO is the perfect workstation motherboard for media server, cloud gaming and video streaming applications. Its rack-optimized layout maximizes cooling efficiency for the best performance and stability, ensuring it's ready to meet the demands of enterprise or academia use.
Powerful performance with Intel Xeon E processor and ECC memory
WS C246M PRO supports Intel Xeon E series processors to deliver powerful, optimized performance in always-on usage scenarios. Support for Error-Correcting Code (ECC) memory enables automatic detection and repair of single-bit memory errors, reducing the chance of system crashes and data corruption to ensure reliable and responsive workstation performance.
Supports up to three independent displays simultaneously
WS C246M PRO is equipped for total display flexibility with onboard HDMI, DisplayPort and VGA connectivity. With a compatible latest-generation Intel processor, you can connect up to three independent displays simultaneously for better multitasking and enhanced productivity.
Accelerated data-transfer speeds of up to 32Gbps with M.2
With PCIe 3.0 x4 bandwidth, one M.2 supports up to 32Gbps data-transfer speeds with native NVMe - that's up to 5.3X faster than traditional SSDs. WS C246M PRO also supports the very latest 2.5-inch NVMe SSDs for quick and easy setup.
Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
WS C246M PRO has two onboard USB 3.1 Gen2 connectors that provide data-transfer speeds of up to 10Gbps, twice as fast USB3.1 Gen1.
SafeSlot
ASUS SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance, which protect your graphics card investment. Manufactured in a single step using a new injection-molding process integrates the slot with the fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.
ASUS Control Center
WS C246M PRO features ASUS Control Center (ACC), a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

  • Compatible Intel Core i3 processor is smart and responsive, which lets you use multiple applications without any lag
  • DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
  • With 2 USB 3.0 port(s), data can be moved from your workstation to your device in fragments of a second
  • HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
  • DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
  • Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Micro ATX workstation motherboard
 Need more information? Ask a Question

Product Specifications

  • Audio Channels
    7.1
  • Brand Name
    Asus
  • Chipset Manufacturer
    Intel
  • Controller Type
    Serial ATA/600
  • Country of Origin
    China
  • Depth
    9.6"
  • DisplayPort
    Yes
  • Environmental Certification
    RoHS WEEE
  • Environmentally Friendly
    Yes
  • Form Factor
    Micro ATX
  • Gigabit Ethernet
    Yes
  • HDMI
    Yes
  • Intel RST
    Yes
  • Manufacturer Part Number
    WS C246M PRO
  • Maximum Memory
    64 GB
  • Memory Form Factor
    DIMM UDIMM
  • Memory Technology
    DDR4 SDRAM
  • Number of Memory Slots
    4
  • Number of Onboard USB 3.0 Ports
    2
  • Number of PCI Express x1 Slots
    1
  • Number of PCI Express x16 Slots
    1
  • Number of PCI Express x8 Slots
    1
  • Number of SATA Interfaces
    8
  • Number of Total Expansion Slots
    3
  • Number of USB 3.0 Ports
    2
  • Onboard S/PDIF Header
    Yes
  • Onboard Video
    CPU Dependent Video
  • Processor Socket
    Socket H4 LGA-1151
  • Processor Supported
    Celeron Core i3 Core i5 Core i7 Pentium Xeon
  • Product Model
    WS C246M PRO
  • Product Name
    WS C246M PRO Workstation Motherboard
  • Product Type
    Workstation Motherboard
  • Total Number of Onboard USB Ports
    6
  • Total Number of PCI Express Slots
    3
  • Total Number of USB Ports
    6
  • Total Processor Supported
    1
  • VGA
    Yes
  • Width
    9.6"
