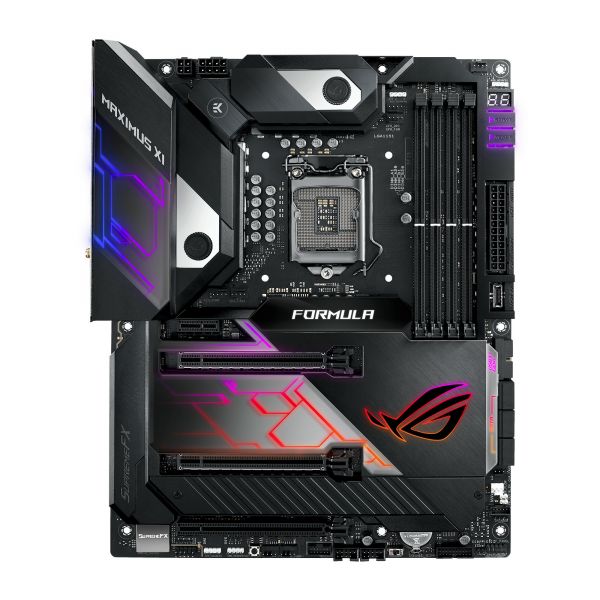

Asus ROG MAXIMUS XI FORMULA Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151

64 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - Wireless LAN - 10 x USB 3.1 Port - HDMI - 6 x SATA Interfaces
Product Number: IGRM5GM028
  • Compatible Intel Core i5 processor provides you with the solid performance to watch videos and play games, while its adaptability makes you more productive
  • DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
  • Wireless support reduces the number of cables required to connect peripherals
  • HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
More details
$443.52
Free Shipping Estimated Delivery
Favorite
Compare
Request Quote

Product Description

Asus ROG MAXIMUS XI FORMULA Desktop Motherboard - Intel Chipset - Socket H4 LGA-1151 - Intel Z390 ATX Gaming motherboard with M.2 heatsink, Aura Sync RGB LED, DDR4 4400MHz, 802.11ac Wi-Fi , dual M.2, SATA 6Gb/s, and USB 3.1 Gen 2
LGA1151 socket for 9th/8th -gen Intel Core desktop processors
CrossChill EK III and Water Cooling Zone: Keep your system cool when the action heats up
ROG Eco-System: ASUS-exclusive Aura Sync RGB lighting, including headers for both standard and addressable RGB strips.
Gaming connectivity: Aquantia 5G LAN, Intel Gigabit Ethernet, LANGuard, 2x2 802.11ac Wi-Fi, Dual M.2, USB 3.1 Gen 2 Type-A and Type-C connectors.
Change to : 5-way Optimization: Automated system-wide tuning, providing AI Overclocking and cooling profiles trailor-made for your rig
Gaming Audio: SupremeFX and Sonic Studio III - High fidelity audio that draws you deeper into the action.
THE FORMULA
ROG Maximus XI Formula exhibits the sleek, refined and functional design that has become iconic in the Maximus motherboard series. With its distinctive integrated CrossChill EK 2" LiveDash OLED with more custom features III cooling block, intelligent overclocking software and a stunning polished-mirror finish, the latest-generation Formula is all set to make your showcase rig shine.
THRILLING PERFORMANCE
Building on over a decade of ROG engineering and refinement, Formula is the motherboard that lets you push the boundaries while keeping the thermals in check and under careful control.
CONTROL YOUR RIG
Fast, intuitive control is vital for effective command of your rig, so we've loaded ROG Maximus XI Formula with simple, flexible tools that let you tweak almost every system aspect. Enjoy intelligent automated tuning with 5-Way Optimization technology, or dive deep into the revered ROG UEFI BIOS to take full manual control. Formula also makes short work of fine-tuning everything from sonics to storage, so it's easy to get every perk of your system up to speed.
PERSONALIZED FOR YOU
With Aura Sync to unleash synchronized illumination effects that extend from motherboard to a vast ecosystem of compatible components, and the LiveDash OLED panel to display system stats and custom visuals, ROG Maximus XI Formula is primed for endless personalization.
THE POWER OF INTEL
Ready for Socket 1151 for 9th / 8th Gen Intel Core, Pentium Gold and Celeron processors
This motherboard supports Socket 1151 for 9th Gen and 8th Gen Intel Core, Pentium Gold and Celeron processors, with integrated graphics, memory and PCI Express controllers to support onboard graphics output with dedicated chipsets, dual-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great performance.
Intel Z390 chipset
The Intel Z390 is a single-chipset design that supports Socket 1151 for 9th Gen and 8th Gen Intel Core, Pentium Gold and Celeron processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the chipset provides a maximum of six USB 3.1 Gen 2 ports, four USB 3.1 Gen 1 ports, and 32Gbps M.2 and PCIe 3.0 lane speed support, for faster data retrieval. Intel Z390 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.

  • Compatible Intel Core i5 processor provides you with the solid performance to watch videos and play games, while its adaptability makes you more productive
  • DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
  • Wireless support reduces the number of cables required to connect peripherals
  • HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
  • ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability

Product Specifications

  • Audio Channels
    7.1
  • Bluetooth
    Yes
  • Brand Name
    Asus ROG
  • Chipset Manufacturer
    Intel
  • Controller Type
    Serial ATA/600
  • Depth
    9.6"
  • Environmental Certification
    RoHS
  • Environmentally Friendly
    Yes
  • Form Factor
    ATX
  • Gigabit Ethernet
    Yes
  • HDMI
    Yes
  • Intel Optane Memory Ready
    Yes
  • Limited Warranty
    3 Year
  • Manufacturer Part Number
    ROG Maximus XI Formula
  • Maximum Memory
    64 GB
  • Memory Form Factor
    DIMM UDIMM
  • Memory Technology
    DDR4 SDRAM
  • Number of Memory Slots
    4
  • Number of PCI Express x1 Slots
    1
  • Number of PCI Express x16 Slots
    3
  • Number of SATA Interfaces
    6
  • Number of Total Expansion Slots
    4
  • Onboard Video
    CPU Dependent Video
  • Package Contents
    MAXIMUS XI FORMULA Desktop Motherboard User's Manual 2 x SATA 6Gb/s cable(s) 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x Q-Connector 1 x Thermistor cable(s) 1 x ROG coaster(s) - 1 x Thermistor cable(s) 1 x ROG weave SATA 6G cable 1 x ROG Thank you card
  • Processor Socket
    Socket H4 LGA-1151
  • Processor Supported
    Celeron Core i3 Core i5 Core i7 Core i9 Pentium Gold
  • Product Model
    MAXIMUS XI FORMULA
  • Product Name
    MAXIMUS XI FORMULA Desktop Motherboard
  • Product Type
    Desktop Motherboard
  • S/PDIF
    Yes
  • Total Number of Onboard USB Ports
    7
  • Total Number of PCI Express Slots
    4
  • Total Number of USB Ports
    10
  • Total Processor Supported
    1
  • Width
    12"
  • Wireless LAN
    Yes
