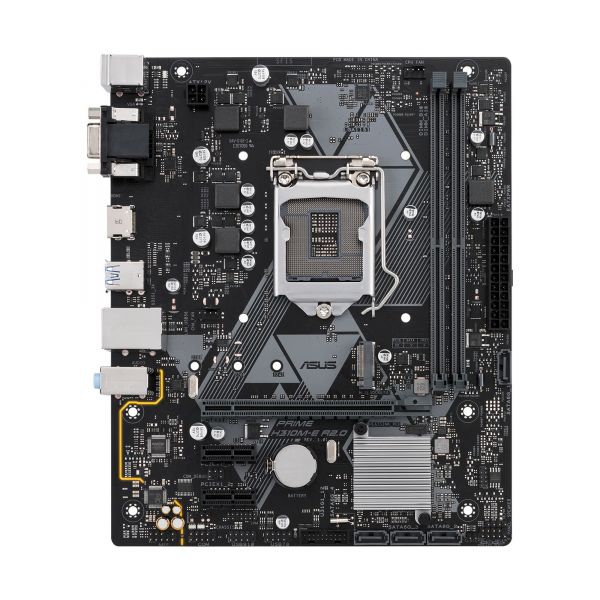

Asus Prime H310M-E R2.0 Desktop Motherboard - Intel H310 Chipset - Socket H4 LGA-1151 - Micro ATX
Product Number: SYNX5499815
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Asus Prime H310M-E R2.0 Desktop Motherboard - Intel H310 Chipset - Socket H4 LGA-1151 - Micro ATX
Core i7, Core i3, Core i5, Celeron, Pentium Processor Supported - 32 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - 4 x SATA Interfaces
Description:
ASUS Prime 300 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into the latest 8th Generation Intel Core processors with essential ASUS design and engineering, so you benefit from industry-leading technologies - including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime 300 Series motherboard, you build smart, easy and affordable.
OptiMem: Improve DDR4 Stability
ASUS OptiMem peserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the Prime 300 Series to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive application
ASUS OptiMem benefits:
- Improved memory stability and compatibility
- Allows lower memory latencies at equivalent voltages
- Improved memory frequency margin
Tested by using Synopsys HSPICE simulation software
A larger signal eye results in improved stability, more overclocking headroom, and lower operating voltages
EPU:All-round energy efficiency
All-round energy efficiency
With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode - a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Fan Xpert
Prime 300 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click.
Tune it Your Way
Cooler by Design
Prime 300 Series features the most comprehensive cooling controls ever, configurable via ASUS Fan Xpert software or the UEFI BIOS.
Multiple temperature sources
Each header can be set to monitor and react to up to three thermal sensors. Via Fan Xpert, you can also assign a sensor to monitor the temperature of supported ASUS graphics cards to ensure optimal cooling during GPU- or CPU-intensive workloads.
4-pin PWM/DC fan
Each onboard header supports auto-detection of PWM or DC fans
UEFI
The UEFI BIOS is an early waypoint on any PC-building journey, and Prime 300 Series has one of the best in the business.
Q-Fan Control
Can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo or Full Speed modes, plus automatic switch to full speed if the temperature hits 75?C.
Search Function
When you're ready for a deeper dive, Advanced mode enables full control over every aspect of the motherboard - with a built-in Search function to find the setting you need in the blink of an eye.
Ultrafast Connectivity
USB 3.1 Gen 1 front-panel connector: Future-proof connectivity
USB 3.1 Gen 1 is right where you need it, with four super-speed headers for the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports.
OptiMem: Improve DDR4 Stability
ASUS OptiMem peserves memory signal integrity by routing traces and vias to the optimal PCB layer, and our T-Topology trace layout ensures time-aligned signaling by balancing trace lengths between memory slots. These enhancements allow the Prime 300 Series to support a wide range of dual and quad-DIMM memory kits, while providing your rig with the stability it needs to deal with any type of workload - whether you're gaming or running intensive application
ASUS OptiMem benefits:
- Improved memory stability and compatibility
- Allows lower memory latencies at equivalent voltages
- Improved memory frequency margin
Tested by using Synopsys HSPICE simulation software
A larger signal eye results in improved stability, more overclocking headroom, and lower operating voltages
EPU:All-round energy efficiency
All-round energy efficiency
With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode - a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
Fan Xpert
Prime 300 Series motherboards offer comprehensive control over system fans, via the included Fan Xpert 2+ software. Auto-Tuning mode intelligently configures all parameters with a single click.
Tune it Your Way
Cooler by Design
Prime 300 Series features the most comprehensive cooling controls ever, configurable via ASUS Fan Xpert software or the UEFI BIOS.
Multiple temperature sources
Each header can be set to monitor and react to up to three thermal sensors. Via Fan Xpert, you can also assign a sensor to monitor the temperature of supported ASUS graphics cards to ensure optimal cooling during GPU- or CPU-intensive workloads.
4-pin PWM/DC fan
Each onboard header supports auto-detection of PWM or DC fans
UEFI
The UEFI BIOS is an early waypoint on any PC-building journey, and Prime 300 Series has one of the best in the business.
Q-Fan Control
Can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo or Full Speed modes, plus automatic switch to full speed if the temperature hits 75?C.
Search Function
When you're ready for a deeper dive, Advanced mode enables full control over every aspect of the motherboard - with a built-in Search function to find the setting you need in the blink of an eye.
Ultrafast Connectivity
USB 3.1 Gen 1 front-panel connector: Future-proof connectivity
USB 3.1 Gen 1 is right where you need it, with four super-speed headers for the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, and avoid back-breaking contortions in the hunt for hard-to-reach rear ports.
- Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with an integrated M.2 slot
- Compatible Intel Core i5 processor provides you with the solid performance to watch videos and play games, while its adaptability makes you more productive
- 5X Protection III Hardware-level safeguards provide component longevity and reliability
- DDR4 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
- FanXpert delivers advanced fan controls for dynamic cooling
- ASUS OptiMem improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies
- On-board 8-Channel HD Audio provides warm, immersive crystal-clear surround sound
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Micro ATX desktop motherboard
- With 2 USB 2.0 ports, transfer several documents without error
Related Articles
Need more information?
Ask a Question
Product Specifications
-
Audio Channels7.1
-
Brand NameAsus
-
Chipset ManufacturerIntel
-
Chipset ModelH310
-
Controller TypeSerial ATA/600
-
Country of OriginChina
-
Depth7.3"
-
Environmental CertificationRoHS
-
Environmentally FriendlyYes
-
Form FactorMicro ATX
-
Gigabit EthernetYes
-
HDMIYes
-
Limited Warranty3 Year
-
Manufacturer Part NumberPRIME H310M-E R2.0
-
Maximum Memory Supported32 GB
-
Memory Form FactorDIMM UDIMM
-
Memory TechnologyDDR4 SDRAM
-
Number of Memory Slots2
-
Number of Network (RJ-45) Ports1
-
Number of Onboard USB 2.0 Ports4
-
Number of PCI Express x1 Slots2
-
Number of PCI Express x16 Slots1
-
Number of SATA Interfaces4
-
Number of Total Expansion Slots3
-
Number of USB 2.0 Ports2
-
Onboard S/PDIF HeaderYes
-
Onboard VideoCPU Dependent Video
-
Package ContentsPrime H310M-E R2.0 Desktop Motherboard 2 x Serial ATA 6.0Gb/s Cables 1 x I/O Shield 1 x Support DVD 1 x M.2 Anchor 1 x User's Manual
-
Processor SocketSocket H4 LGA-1151
-
Processor SupportedCeleron Core i3 Core i5 Core i7 Pentium
-
Product LinePrime
-
Product ModelH310M-E R2.0
-
Product NamePrime H310M-E R2.0 Desktop Motherboard
-
Product Series300
-
Product TypeDesktop Motherboard
-
Total Number of Onboard USB Ports6
-
Total Number of PCI Express Slots3
-
Total Number of USB Ports4
-
Total Processor Supported1
-
VGAYes
-
Width8.9"
