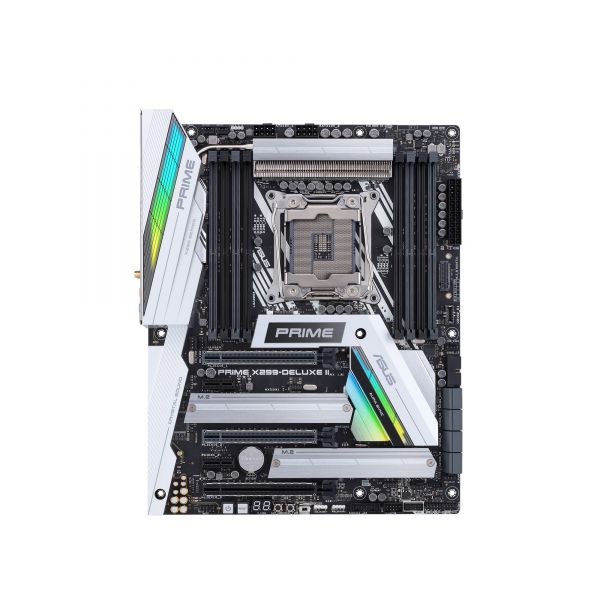

Asus Prime X299-DELUXE II Desktop Motherboard - Intel X299 Chipset - Socket R4 LGA-2066 - Intel Optane Memory Ready - ATX
- Compatible Core X-Series processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Enjoy the freedom of Wi-Fi and connect devices faster
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description
Asus Prime X299-DELUXE II Desktop Motherboard - Intel X299 Chipset - Socket R4 LGA-2066 - Intel Optane Memory Ready - ATX - Intel LGA 2066 ATX motherboard with enhanced VRM and M.2 heatsink design, DDR4 4266 (O.C.)MHz, 802.11ac Wi-Fi, triple M.2, Type-C Thunderbolt 3 ports, Intel VROC support
5-Way Optimization: One-click, system-wide tuning, delivering optimized overclocking and intelligent cooling for CPU or GPU-intensive tasks
Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI
Optimized thermal design: Enhanced fin-design VRM heatsink & M.2 heatsink for efficient cooling and optimal performance
Next-gen connectivity: Aquantia 5Gbps LAN, Intel Wireless-AC 9260, two Thunderbolt 3 (Type-C) with DisplayPort 1.4, three M.2 and front USB 3.1 Gen 2 connector
LiveDash: A 2-inch customizable onboard display that shows system temperature, CPU frequency, fan speeds or custom graphics and animations
Pre-mounted I/O shield: Capable of withstanding electrostatic discharge and pre-fitted for easier system installation
PRIME
ASUS Prime X299-Deluxe II is the ATX motherboard that's been expertly engineered for professional content creators and power users who work hard by day and play harder by night. This powerful, innovative board puts a friendly face on advanced enthusiast controls, enabling you to maximize performance, cooling and personalization with ease. So, if you live to create, to explore, to enjoy and to push the boundaries, look no further than Prime X299-Deluxe II.
Cool to the core
Power delivery enhancements and dual ProCool connectors
With up to 18 cores, four memory channels, and 44 PCIe lanes, the latest Intel Core processors demand a lot more juice than typical desktop CPUs. Prime X299-Deluxe II feeds their appetite with 12 power stages hooked up to the socket and two more for the DRAM. It also augments the motherboard's link to the PSU with dual eight-pin connectors that pass 12V power directly to the processor. These connectors are based on our ProCool design, which uses solid pins that can handle more current than conventional connectors with hollow pins.
VRM design
Higher power requirements are balanced by beefier heatsinks that carefully balance mass and surface area to maximize thermal dissipation. With a VRM-heatsink array and heatpipe positioned in the path of maximum airflow within the chassis, Prime X299-Deluxe II ensures optimal cooling and system stability for the latest Intel Core X-series processors.
M.2 Cooling
Keep your SSD chilled
Two M.2 slots sit under passive heatsinks to ward off the throttling that can occur with sustained transfers. A third pokes out from the PCB vertically near the memory slots, where connected drives benefit from ambient airflow around the CPU socket.
Cooler by design
Prime X299-Deluxe II features the most comprehensive cooling controls ever, configurable via Fan Xpert 4 or the UEFI BIOS:
Multiple temperature sources
Each header can dynamically reference three thermal sensors, and via Fan Xpert 4 you can even map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks
Water pump+
A dedicated header that can supply over 3A to high-performance PWM or DC water pumps.
AIO pump
A dedicated PWM/DC header for self-contained water-cooling setups.
4-pin PWM/DC fan
Every onboard header supports auto-detection of PWM or DC fans.
- Compatible Core X-Series processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Enjoy the freedom of Wi-Fi and connect devices faster
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
Product Specifications
-
Audio Channels7.1
-
BluetoothYes
-
Brand NameAsus
-
Chipset ManufacturerIntel
-
Chipset ModelX299
-
Controller TypeSerial ATA/600
-
Country of OriginChina
-
Depth9.6"
-
Environmental CertificationRoHS
-
Environmentally FriendlyYes
-
Form FactorATX
-
Gigabit EthernetYes
-
Intel Optane Memory ReadyYes
-
Intel RSTYes
-
Intel RSTeYes
-
Intel VROCYes
-
Limited Warranty3 Year
-
Manufacturer Part NumberPRIME X299-DELUXE II
-
Maximum Memory Supported128 GB
-
Memory Form FactorDIMM UDIMM
-
Memory TechnologyDDR4 SDRAM
-
Multi GPU SupportedCrossFireX SLI
-
Number of Memory Slots8
-
Number of PCI Express x1 Slots2
-
Number of PCI Express x16 Slots3
-
Number of SATA Interfaces8
-
Number of Total Expansion Slots5
-
Onboard VideoNo
-
Package ContentsPrime X299-DELUXE II Desktop Motherboard User's Manual 1 x Vertical M.2 bracket set 6 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header) 1 x Fan Extension Card II power cable 1 x Fan Extension Card II NODE connector cable 1 x Fan Extension Card II screw package 1 x DisplayPort cable 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-Connector 1 x Extension cable for Addressable LED 3 x Thermistor cable(s) 1 x CPU Fan Holder
-
Processor SocketSocket R4 LGA-2066
-
Processor SupportedCore X-Series
-
Product LinePrime
-
Product ModelX299-DELUXE II
-
Product NamePrime X299-DELUXE II Desktop Motherboard
-
Product SeriesDeluxe
-
Product TypeDesktop Motherboard
-
RAID Levels0 1 10 5
-
RAID SupportedYes
-
S/PDIFYes
-
Total Number of Onboard USB Ports7
-
Total Number of PCI Express Slots5
-
Total Number of USB Ports6
-
Total Processor Supported1
-
Width12"
-
Wireless LANYes
