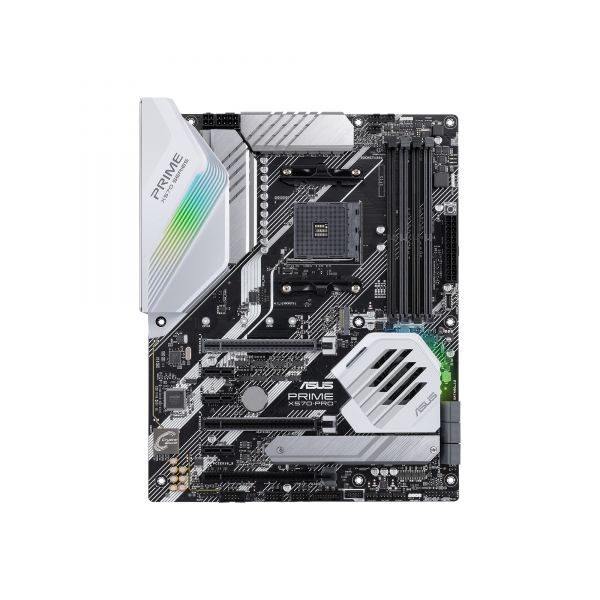

Asus Prime X570-PRO Desktop Motherboard - AMD X570 Chipset - Socket AM4 - ATX
Product Number: SYNX5630541
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Asus Prime X570-PRO Desktop Motherboard - AMD X570 Chipset - Socket AM4 - ATX
Ryzen 7, Ryzen 7 PRO, Ryzen 5, Ryzen 5 Pro, Ryzen 3, Ryzen 9 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 6 x SATA Interfaces
Description:
Power Delivery Enhancements
Dr.MOS
Prime X570-Pro utilizes 12+2 power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.
6-Layer PCB Design
Improved thermal solution
6-layer PCB can quickly dissipate heat around the VRM, improving overall system stability and giving the cPU more overclocking headroom.
Compared with 4-layer PCB, temperature of 6-layer PCB will help decrease up to 30+ OC under default operation and 50+ OC under CPU OC mode, which can increase the PCB lifespan and reliability.
Active Chipset Heatsink Solution
Dedicated cooling for unthrottled transfers
PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Prime X570-Pro features an actively cooled heatsink to prevent throttling during sustained transfers.
Active Chipset Heatsink Solution includes:
Air Duct: A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.
Finned heatsink: The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.
Custom Delta Superflo Fan: The custom low-noise fan features a high-durability bearing with a 60,000-hour L10 lifespan.
PCIe 4.0 Ready on X570
Prime X570 Series equipped with PCIe 4.0 slots, PCIe 4.0 M.2 slots, 6-layer PCB deliver the best signal quality to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.
Dr.MOS
Prime X570-Pro utilizes 12+2 power stages that combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that AMD's latest processors demand.
6-Layer PCB Design
Improved thermal solution
6-layer PCB can quickly dissipate heat around the VRM, improving overall system stability and giving the cPU more overclocking headroom.
Compared with 4-layer PCB, temperature of 6-layer PCB will help decrease up to 30+ OC under default operation and 50+ OC under CPU OC mode, which can increase the PCB lifespan and reliability.
Active Chipset Heatsink Solution
Dedicated cooling for unthrottled transfers
PCIe 4.0 provides twice the bandwidth for data flowing through the chipset, which creates more heat than the previous generation. The Prime X570-Pro features an actively cooled heatsink to prevent throttling during sustained transfers.
Active Chipset Heatsink Solution includes:
Air Duct: A specially-designed air duct helps the fan generate static pressure and concentrates air flow over the fins.
Finned heatsink: The heatsink fin density is optimized to maximize surface area while maintaining a low-resistance exhaust path.
Custom Delta Superflo Fan: The custom low-noise fan features a high-durability bearing with a 60,000-hour L10 lifespan.
PCIe 4.0 Ready on X570
Prime X570 Series equipped with PCIe 4.0 slots, PCIe 4.0 M.2 slots, 6-layer PCB deliver the best signal quality to enjoy the fastest data-transfer speeds on the 3rd Generation AMD Ryzen platform.
- Enhanced power solution: Premium components provide better power efficiency
- 5-Way Optimization: One-click, system-wide tuning delivers optimized overclocks and intelligent cooling for CPU or GPU-intensive tasks
- Industry-leading cooling options: Comprehensive controls for fans and dual pump headers, via Fan Xpert 4 or the acclaimed UEFI
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory overclocking
- Next-gen connectivity: Supreme flexibility with PCIe Gen 4 support, dual M.2 support, USB 3.2 Gen 2 ports and front-panel header
- Ryzen 7 processors supported for enhanced, dependable system performance with maximum usability
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
Related Articles
Need more information?
Ask a Question
-
Audio Channels7.1
-
Brand NameAsus
-
Chipset ManufacturerAMD
-
Chipset ModelX570
-
Controller TypeSerial ATA/600
-
Country of OriginChina
-
Depth9.6"
-
DisplayPortYes
-
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
-
Environmentally FriendlyYes
-
Form FactorATX
-
Gigabit EthernetYes
-
HDMIYes
-
Limited Warranty3 Year
-
Manufacturer Part NumberPRIME X570-PRO
-
Maximum Memory Supported128 GB
-
Memory Form FactorDIMM UDIMM
-
Memory TechnologyDDR4 SDRAM
-
Multi GPU SupportedCrossFireX SLI
-
Number of Memory Slots4
-
Number of Onboard USB 2.0 Ports4
-
Number of Onboard USB 3.2 Ports3
-
Number of PCI Express x1 Slots3
-
Number of PCI Express x16 Slots3
-
Number of SATA Interfaces6
-
Number of USB 3.2 Gen 1 Ports4
-
Number of USB 3.2 Gen 2 Type-A Ports3
-
Onboard VideoCPU Dependent Video
-
Package ContentsPrime X570-PRO Desktop Motherboard 2 x SATA 6Gb/s Cable(s) 1 x M.2 Screw Package 1 x Q-connector(s) (1 in 1) 1 x User's Manual 1 x Extension cable for Addressable LED 1 x Support DVD Drivers ASUS Utilities EZ Update
-
Processor SocketSocket AM4
-
Processor SupportedRyzen 3 Ryzen 5 Ryzen 5 PRO Ryzen 7 Ryzen 7 PRO Ryzen 9
-
Product LinePrime
-
Product ModelX570-PRO
-
Product NamePrime X570-PRO Desktop Motherboard
-
Product TypeDesktop Motherboard
-
RAID Levels0 1 10
-
RAID SupportedYes
-
S/PDIFYes
-
Total Number of Expansion Slots6.0
-
Total Number of Onboard USB Ports7
-
Total Number of PCI Express Slots6
-
Total Number of USB Ports8
-
Total Processor Supported1
-
Width12"
