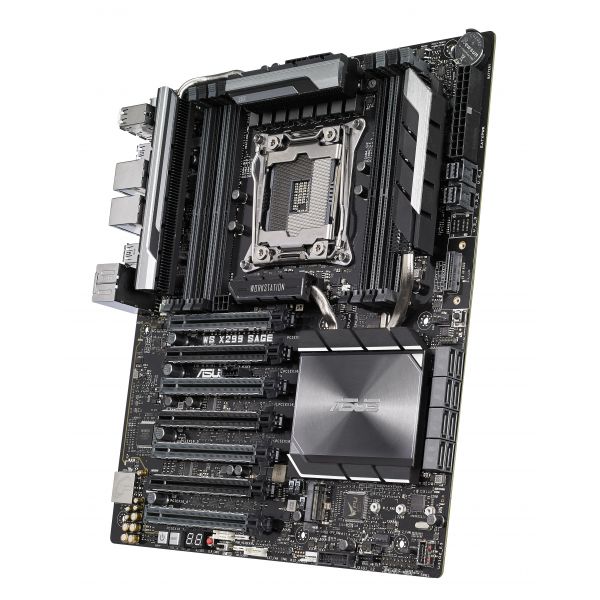

Asus WS X299 SAGE Workstation Motherboard - Intel Chipset - Socket R4 LGA-2066

128 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 8 x Memory Slots - Gigabit Ethernet - 8 x USB 3.1 Port - 8 x SATA Interfaces
Product Number: SYNX5112781
  • Compatible Core X-Series processor lets you perform all your computational tasks at a swift pace
  • DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
  • Supported 10 RAID levels provide data reliability and fault tolerance
  • The SSI CEB server standard motherboard enables a solid foundation for PC components and magnifies the performance by supporting multiple processors
More details
Sold Out

This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.

Check similar items below to see if a replacement product is available.

Product Description

Asus WS X299 SAGE Workstation Motherboard - Intel Chipset - Socket R4 LGA-2066 - Intel LGA 2066 CEB motherboard with quad-GPU support, DDR4 4200MHz, dual M.2 & U.2, USB 3.1 Gen 2 connectors, and ASUS Control Center
Quad-GPU graphics power: Fits up to four dual-slot graphics cards and supports 4-way NVIDIA SLI or AMD CrossFireX GPU configurations.
5-Way Optimization: One-click, system-wide tuning, delivers optimized overclocking and intelligent cooling for a diverse range of workloads.
Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI.
Ultra-efficient VRM heatsink: Metal-fin-array design maximizes surface area for heat dissipation to enable unthrottled performance.
ASUS Control Center: A software utility that provides convenient, secure and cost-saving centralized IT management for small- and medium-sized businesses.
Ultra-fast storage: Up to 32Gbps dual M.2 and U.2, plus up to 10Gbps USB 3.1 Gen 2 with Type-A and Type-C ports onboard and a front-panel connector.
The new WS X299 Sage blends tremendous GPU performance with up to Quad-SLI support, server-grade validation, and comprehensive cooling options to deliver the perfect system build for training neural networks and crunching other scalable compute loads. Dual PLX chips extend the number of PCIe lanes to provide additional expansion slots, giving you robust connectivity options to configure your system with the tools you need to get your job done.
Workstation exclusive
Multi-GPU support
WS X299 Sage fits up to four dual-slot graphics cards and supports both NVIDIA SLI and AMD CrossFireX 4-way configurations to enable multi-GPU setups that harness the full power of the latest graphics technologies, including NVIDIA Quadro. With performance beyond 15.23 TFLOPS, NVIDIA Quadro is the perfect complement to WS X299 Sage, delivering the best performance for design, modeling, medical research, and processing-intensive simulation and rendering applications.
ASUS Control Center
WS X299 Sage features ASUS Control Center (ACC), a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
Tune it your way
5-Way Optimization
One-click overclocking and cooling
ASUS 5-Way Optimization makes your workstation smart. One click takes care of complex tuning, dynamically optimizing essential aspects of the system to provide overclocking and cooling profiles that are tailored for your rig.
An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
Fans stay whisper-quiet with everyday computing, and deliver optimal airflow when the system is crunching through CPU or GPU-intensive tasks.
Stress test function helps optimize and overclock for CPU- or memory-centric workloads.
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controllable graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, EZ and Advanced modes will help you find your way with ease.
EZ Tuning Wizard

Quickly apply a CPU overclock to improve system performance, or configure a RAID array for faster data retrieval and backups.

  • Compatible Core X-Series processor lets you perform all your computational tasks at a swift pace
  • DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
  • Supported 10 RAID levels provide data reliability and fault tolerance
  • The SSI CEB server standard motherboard enables a solid foundation for PC components and magnifies the performance by supporting multiple processors
 Need more information? Ask a Question

Product Specifications

  • Audio Channels
    7.1
  • Brand Name
    Asus
  • Chipset Manufacturer
    Intel
  • Controller Type
    Serial ATA/600
  • Country of Origin
    China
  • Depth
    10.5"
  • Environmental Certification
    RoHS
  • Environmentally Friendly
    Yes
  • Form Factor
    SSI CEB
  • Gigabit Ethernet
    Yes
  • Intel Optane Memory Ready
    Yes
  • Intel RSTe
    Yes
  • Intel VROC
    Yes
  • Manufacturer Part Number
    WS X299 SAGE
  • Maximum Memory
    128 GB
  • Memory Form Factor
    DIMM UDIMM
  • Memory Technology
    DDR4 SDRAM
  • Number of Memory Slots
    8
  • Number of PCI Express x16 Slots
    7
  • Number of SATA Interfaces
    8
  • Number of Total Expansion Slots
    7
  • Onboard Video
    No
  • Processor Socket
    Socket R4 LGA-2066
  • Processor Supported
    Core X-Series
  • Product Model
    WS X299 SAGE
  • Product Name
    WS X299 SAGE Workstation Motherboard
  • Product Type
    Workstation Motherboard
  • RAID Levels
    0 1 10 5
  • RAID Supported
    Yes
  • S/PDIF
    Yes
  • Total Number of Onboard USB Ports
    3
  • Total Number of PCI Express Slots
    7
  • Total Number of USB Ports
    12
  • Total Processor Supported
    1
  • Width
    12"
