Chief ConnexSys Portrait Video Wall TV Mount - For Displays 40-80" - Black
Product #:
SYNX3805574
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

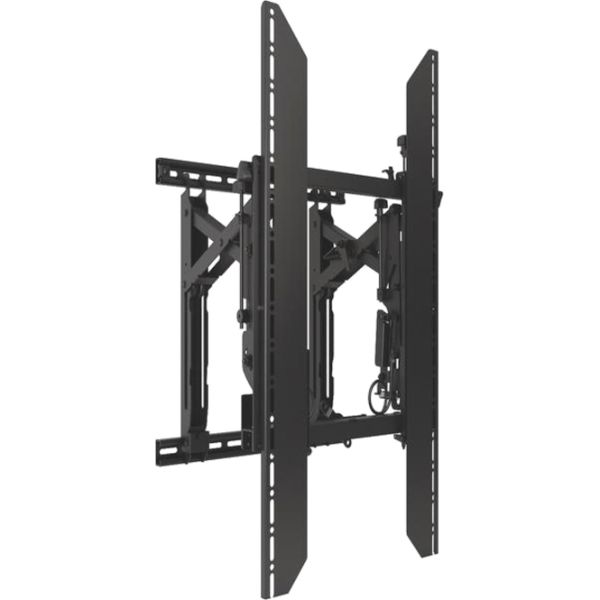

Chief ConnexSys Portrait Video Wall TV Mount - For Displays 40-80" - Black
Height Adjustable - 1 Display(s) Supported - 40" to 80" Screen Support - 150 lb Load Capacity
Chief's ConnexSys video wall mounting system solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys video wall mounting system provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.
Hang units on a single strut channel for quick row leveling. There is no need for horizontal spacers and the vertical measurement is simply the height of the display to the next rail. The ConnexSys reduces installation time, especially for XL and recessed configurations with our tool free latching system to secure displays. Power Zone technology provides 6 points of adjustment in one easy-access location at the top of the mount.
This mount comes equipped with Rapid Draw Display Release to protect displays by not requiring an aggressive push to release pop-out. The display will release on demand to prevent accidental pop-outs.
Tilt adjustment at single pivot point, protects displays from twisting.
Hang units on a single strut channel for quick row leveling. There is no need for horizontal spacers and the vertical measurement is simply the height of the display to the next rail. The ConnexSys reduces installation time, especially for XL and recessed configurations with our tool free latching system to secure displays. Power Zone technology provides 6 points of adjustment in one easy-access location at the top of the mount.
This mount comes equipped with Rapid Draw Display Release to protect displays by not requiring an aggressive push to release pop-out. The display will release on demand to prevent accidental pop-outs.
Tilt adjustment at single pivot point, protects displays from twisting.
- Wall Mount offers maximum mounting efficiency with added usability
- Can withstand a maximum weight of 150 lb
- Supports the screen size of 80"
Product Specifications
-
Additional InformationCompatible with most 1-5/8" sizes of channel strut Reduces installation time - especially for XL and recessed configurations Tool-free ClickConnect latching secures displays PowerZone provides 6 points of adjustment in one easy-to-access location at the top of the mount Height adjustment ±1" on each interface Tilt adjustment at single pivot point, protects displays from twisting Depth can be set between 4" and 7.4" from the wall, providing a range of "home positions" ideal for recessed installations Cord release system gently and remotely pops any screen out for easy access and can be extended 13.4" for service Security - pad lock ΒΌ" shank diameter
-
Brand NameChief
-
CompatibilityTV
-
Country of OriginChina
-
Depth4"
-
Device SupportedFlat Panel Display
-
FeaturesAdjustable Depth Lateral Adjustment Tilt
-
Height32.50"
-
Height AdjustableYes
-
Limited Warranty10 Year
-
Manufacturer Part NumberLVS1UP
-
Maximum Adjustable Depth13.40"
-
Maximum Load Capacity150 lb
-
Maximum Screen Size Supported80"
-
Minimum Screen Size Supported40"
-
Number of Displays Supported1
-
Product ColorBlack
-
Product ModelLVS1UP
-
Product NameChief ConnexSys Video Wall Mounting System with Rails - For Monitors 42-80"
-
Product TypeWall Mount
-
VESA Mount CompatibleYes
-
Width19.50"
