Peerless Articulating Wall Arm
Product #:
SYNX1644724
Sold Out
This product is sold out and we do not know when we will be getting another shipment. We apologize for any inconvenience this may cause.
Check similar items above to see if a replacement product is available.
Product Description

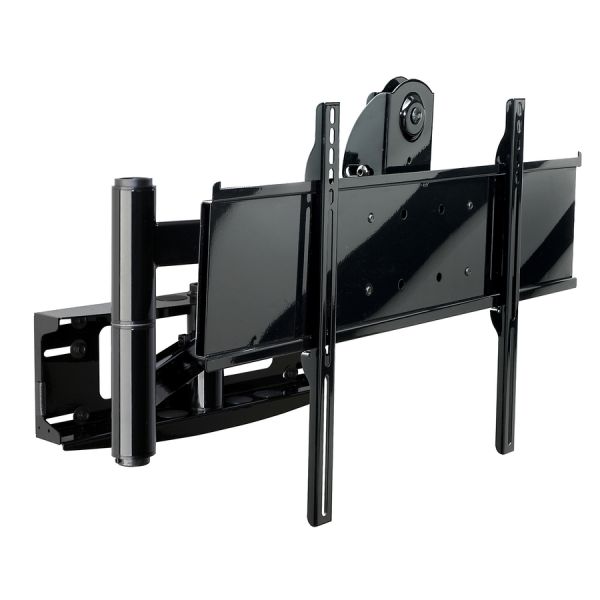

Peerless Articulating Wall Arm
Steel - 150 lb
Offer the best view in the room with ability to swing, tilt or articulate the most popular sizes of displays. Self-lubricating bushings enable the arms to smoothly extend, while adjustable tilt and pivot position the display to the optimal viewing angle. The PLA50 offers versatility for the most popular sizes of display in a wide range of installations in lobbies, hotel rooms, boardrooms, public displays or home theaters.
- Universal models adapt to displays with mounting hole patterns up to 730 x 433mm(28.75"W x 17.05"H)
- Five horizontal arm positions at 2.6" (66mm) centers for flexible lateral display placement
- Includes mesh cord sheath and cable ties to neatly manage cables
- +10/-5° of tilt
- 7° of roll for post installation display leveling
- Arm extends up to 30.52"(775mm) from wall
- Three adjustable pivot points with up to 180° swivel for versatile display positioning
- Mounting Arm offers maximum mounting efficiency with added usability
- Can withstand a maximum weight of 150 lb
- Supports 50" displays
- Built with steel product material to offer high strength and durability
- Articulating feature for maximum efficiency and convenience
Product Specifications
-
Additional InformationPivot: 180 degree Roll: +/-7 degree to level screen horizontally at any position Mounts to two wood studs or concrete (accessory required) Universal models adapt to screens with up to 28.7" wide x 17" high mounting inserts Extends out to 29.9" , retracts to 5.1" (plus thickness of required adapter plate)
-
Brand NamePeerless-AV
-
CompatibilityPlasma Screens: 32" - 50"
-
Country of OriginUnited States
-
Device SupportedFlat Panel Display
-
FeaturesArticulating Flexible Pivot Swivel Tilt
-
Limited Warranty5 Year
-
Manufacturer Part NumberPLA50-UNLP
-
Maximum Load Capacity150 lb
-
Maximum Screen Size Supported50"
-
Minimum Screen Size Supported32"
-
Package ContentsArticulating Wall Arm 1 x Wall plate 1 x Tilt-roll assembly 1 x Arm assembly 1 x Wall support arm axle 3 x Vinyl trim 8 x Screw bolt (M10 x 1.5 x 15 mm ) 1 x Nylon washer (.505 x .75 x .062" ) 1 x Tilt adjustment knob 1 x Carriage bolt (3/8"-16 x 3.25") 2 x Delrin washer (1.525 x 2 x .062") 1 x Socket head cap screw ( 8-32 x .375") 8 x Plastic finishing cap 1 x Holding pin 1 x Retainer plug 6 x Wood screw (5/16 x 3") 6 x Washer (.250 x 1 x .068") 1 x Allen wrench (9/64") 4 x Cable management clips 4 x Cable tie 1 x Polyester mesh sleeve (36") 1 x Allen wrench (6 mm) 1 x Adapter bracket 2 x Shallow adapter bracket 2 x Deep adapter bracket 4 x (M6 x 20 mm) 4 x (M6 x 30 mm) 6 x Multi-washer 6 x (M8 x 16 mm) 4 x (M8 x 40 mm) 6 x (M4 x 12 mm) 4 x (M4 x 25 mm) 4 x (M5 x 12 mm) 4 x (M5 x 25 mm) 4 x (M6 x 12 mm) 4 x (M6 x 25 mm) 4 x (I.D. 5.6 mm ) 4 x (M8 x 25 mm) 4 x (I.D. 8.7 mm ) 1 x Allen wrench Phillips Adapter Bracket Fasteners:
-
Product ColorBlack
-
Product MaterialSteel
-
Product ModelPLA50-UNLP
-
Product NamePLA Series Articulating Wall Arm For 37" to 80" Displays
-
Product TypeMounting Arm
